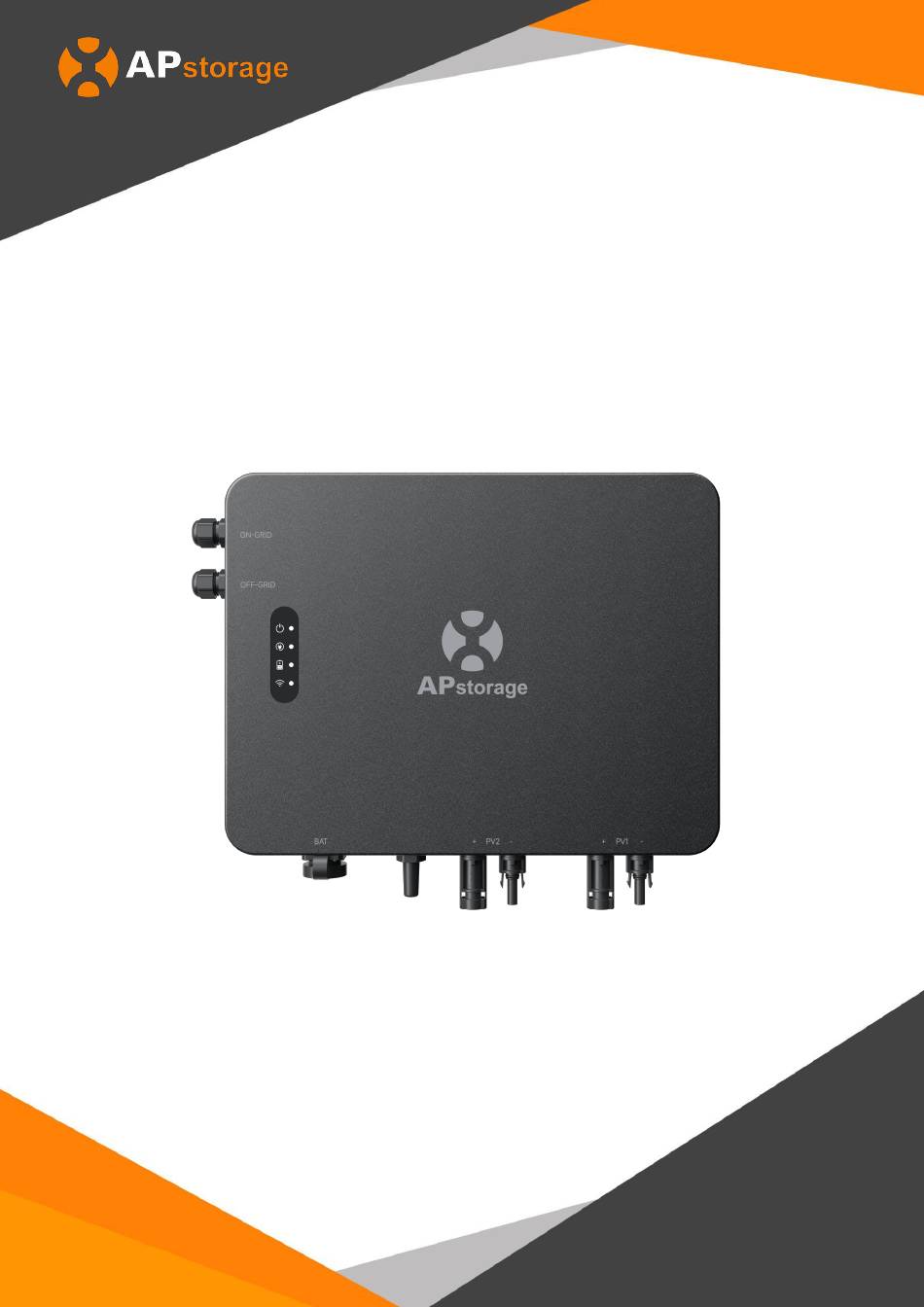

- Page 1 APstorage Sea Family EZHI Installation & User Manual (For EMEA) Rev1.0 2024-08-19 © All Rights Reserved...
-
Page 2: Table Of Contents
1.3 Communication Disclaimer ......................2 1.4 Symbols Replace Words on the Equipment, on a Display, or in Manuals ........3 2. APstorage EZHI Introduction ........................4 2.1 Dimensions ............................4 2.2 Basic System Architecture of Balcony Micro Storage ..............5 2.3 Portable Power Source ........................ -
Page 3: Important Safety Instructions
APstorage Installation / User Manual 1.Important Safety Instructions This manual contains important instructions to be followed during installation and maintenance of the EZHI. To reduce the risk of electrical shock and ensure the safe installation and operation of the EZHI, the following symbols appear throughout this document to indicate dangerous conditions and important safety instructions. -
Page 4: Symbols Replace Words On The Equipment, On A Display, Or In Manuals
APstorage Installation / User Manual 1.4 Symbols Replace Words on the Equipment, on a Display, or in Manuals Caution, risk of electric shock. Caution, hot surface. NOTICE, danger! This device directly connected with electricity generators and public grid. After the inverter is turned off, wait for at least 5 minutes before opening the EZHI or touching live parts. -
Page 5: Apstorage Ezhi Introduction
APstorage Installation / User Manual 2. APstorage EZHI Introduction EZHI is a micro energy storage solution specifically designed for balcony and residential photovoltaic (PV) setups. The highlight of this system is that it can store energy for nighttime or future use, thereby improving energy utilization efficiency and optimizing cost-effectiveness according to customer needs. -
Page 6: Basic System Architecture Of Balcony Micro Storage
A balcony energy storage system can store excess electricity generated in the daytime for nighttime or future use, improving energy utilization efficiency and optimizing cost-effectiveness according to customer needs. A typical APstorage system includes two main elements: APstorage EZHI, a smart power conversion system: EZHI comes with a communication module for monitoring the entire system during its operation. -
Page 7: Portable Power Source
APstorage Installation / User Manual 2.3 Portable Power Source The portable power system can provide backup power for lighting and household appliances in response to sudden power outages. It can also serve as an outdoor power source to meet users' off-grid power needs. -
Page 8: Indicator Light Description
APstorage Installation / User Manual 2.4 Indicator Light Description Condition Description Normal on-grid power generation or off-grid operation The device is starting up and conducting a power-on check The device is powered on and in standby mode SYSTEM System fault... -
Page 9: Installation
APstorage Installation / User Manual 3. Installation 3.1 Packing List Upon receiving the product, check whether all items listed below are included and are free of damage. EZHI × 1 Wall-mounting bracket × 1 Mounting bracket × 2 M4 × 8mm Phillips pan head M6 expansion bolt ×... -
Page 10: Installation Tools
APstorage Installation / User Manual 3.2 Installation Tools The following tools are recommended for use during installation. Other auxiliary tools may be used on-site as needed. Impact driver Phillips screwdriver Goggles Protective gloves Safety shoes Dust mask Flathead screwdriver Wrench 3.3 EZHI Installation Steps... -
Page 11: Installing The Bracket
APstorage Installation / User Manual 3.3.2 Installing the bracket Use the wall-mounting bracket and expansion bolts provided for wall mounting. Step 1: Hold the bracket against the wall and mark the positions of the four holes. Drill the holes using an impact driver, and ensure the product is at least 500 mm above the ground and the holes have a 10 mm diameter. -
Page 12: Connecting Cables
APstorage Installation / User Manual 3.3.4 Connecting cables Connecting the Battery Connector at EZHI Side Remove the dust cover of the battery cable connector. click Plug in the wire-side connector from the battery and rotate the front end of the connector clockwise until you hear a click sound. -
Page 13: Ap Easypower Using
APstorage Installation / User Manual 4. AP EasyPower Using 4.1 Main Scene 1: Balcony Energy Storage System Scene 2: Portable Power Station Setting icon Alarm icon In the Balcony Energy Storage System scene, EZHI complies with the output grid strategy, defaulting to 200 W on-grid output. -
Page 14: Settings
APstorage Installation / User Manual 4.2 Settings By pressing "setting icon" to set the device. The setting page is shown below. On the setting page, user can visualize Device ID: The serial ID of the device. Wi-Fi: The name of the connected Wi-Fi. -
Page 15: Alarm
APstorage Installation / User Manual 5. Alarm The following table details the possible causes for EZHI warnings and their solutions. Error Error cause Measures 1. Check whether the ambient temperature is within the 1. The ambient temperature of the battery is... -
Page 16: Technical Data
APstorage Installation / User Manual 6. Technical Data Model EZHI-L EZHI-M EZHI Region EMEA PV Input Maximum input power 600W×2 Operating voltage range 12V-60V Maximum input voltage MPPT voltage range 12V-48V Start-up voltage Maximum continuous input current 17A×2 Isc PV 25A×2... - Page 17 APstorage Installation / User Manual Battery Ratings (Battery Port) Battery voltage range 40-60VDC Nominal battery voltage 51.2V Communication Ports Maximum Continuous Discharge Power 1200VA Peak Discharge Power 1800VA,10s Maximum discharge current Maximum charge current General Specifications Dimensions W/H/D 351mm×269mm×47mm Weight Maximum Efficiency 96.2%...
- Page 18 APstorage Installation / User Manual Model EZAC-L EZAC-M EZAC Region EMEA AC Input and Output (On-Grid Port) Grid type Single-phase Nominal AC voltage 230V Nominal AC frequency 50Hz Default output apparent power 800VA 800VA 800VA Maximum continuous output power 800VA...
- Page 19 APstorage Installation / User Manual Cooling Natural Convection-No Fans Maximum Altitude <2000m Pollution Degree Classification Overvoltage Category OVC Il For PV and Battery Input Circuit, OVC Ill For Mains Circuit Features Communication Built-in Wi-Fi and Bluetooth Energy Management AP EasyPower APP...
