Summary of Contents for Fuji Spray D6

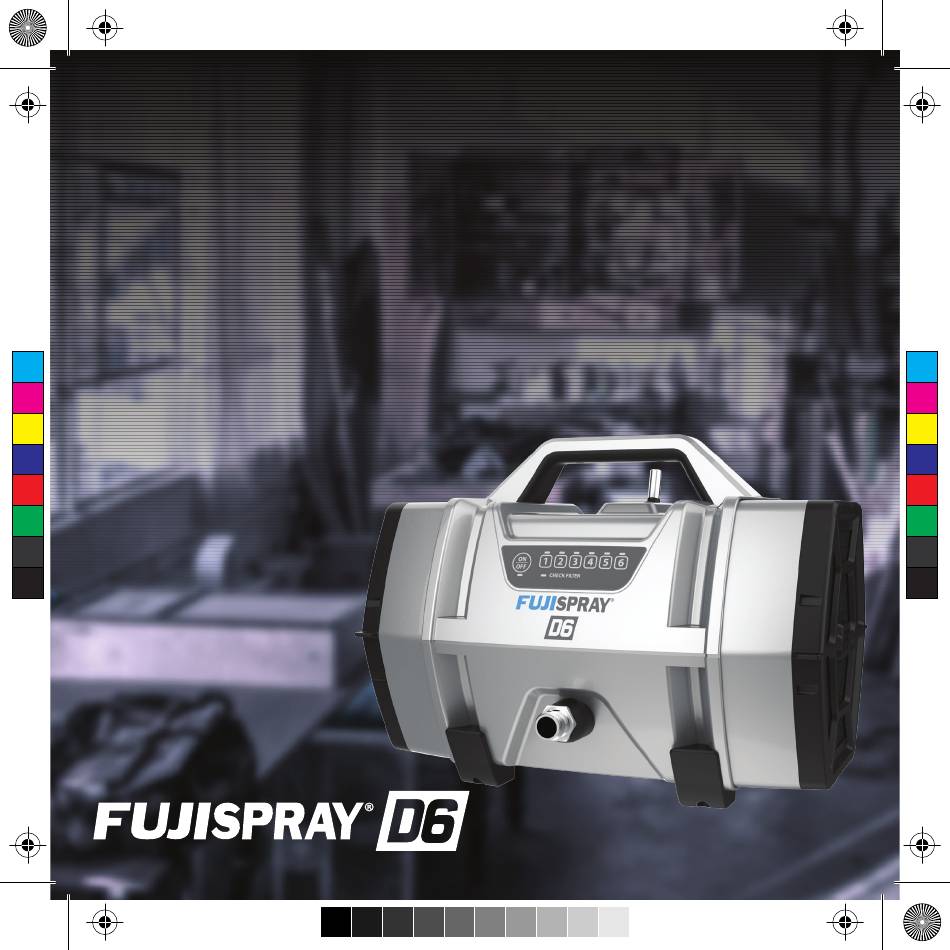

- Page 1 241203-FUJ-D6 Quick Start Guide (For Print).pdf 1 2024-12-03 9:56:10 AM QUICK QUICK START START GUIDE GUIDE...
- Page 2 241203-FUJ-D6 Quick Start Guide (For Print).pdf 3 2024-12-03 9:56:12 AM D6 SYSTEM BOX CONTENTS Power Cord Super Duty Air Hose 6 for 6 Bonus Package 1. 6 Whip Hose 2. Extra Air Cap Set (1.8mm) 3. Extra Full Set of Filters...
-
Page 3: Getting Started
241203-FUJ-D6 Quick Start Guide (For Print).pdf 2 2024-12-03 9:56:10 AM GETTING STARTED Connect power cord to D6 Turbine and plug power cord to power source Connect hose to D6 Turbine Fill cup with desired coating Attach whip hose to main hose... - Page 4 241203-FUJ-D6 Quick Start Guide (For Print).pdf 6 2024-12-03 9:56:14 AM For technical assistance, please contact us at: 1-800-650-0930 or visit: www.fujispray.com/contact-us Detailed User Manual can be located in system car on or at: fujispray.com/library The per ect inish star s with...
-
Page 5: Control Panel
241203-FUJ-D6 Quick Start Guide (For Print).pdf 8 2024-12-03 9:56:15 AM CONTROL PANEL The D6 is designed and engineered to spray almost all coatings unthinned, including very high viscosity coatings using the power of 6 stages. COATINGS REFERENCE CHART Thinner viscosity... -
Page 6: Remote Control
241203-FUJ-D6 Quick Start Guide (For Print).pdf 4 2024-12-03 9:56:13 AM REMOTE CONTROL PAUSE and RESUME from a distance (up to 75 ): Turn unit ON Choose desired Motor Power Level on Control Panel Use Remote Button to PAUSE Press Remote Button again... - Page 7 241203-FUJ-D6 Quick Start Guide (For Print).pdf 5 2024-12-03 9:56:14 AM FLIP-UP GUN STOCK FOR EASY GUN STORAGE Flip up the gun stock pin to stow your spray gun. Detach gun from hose and slide on to the pin. To store the pin, fold back down lush with the turbine.
-
Page 8: Easy Access
241203-FUJ-D6 Quick Start Guide (For Print).pdf 7 2024-12-03 9:56:15 AM EASY ACCESS FILTERS Cover Pre-Filter HEPA Filter INDICATOR LIGHT Turbine YELLOW - Warning When lit, check the Motor Air Intake Filter and clean or replace as necessary. Motor Air Intake Filter...
