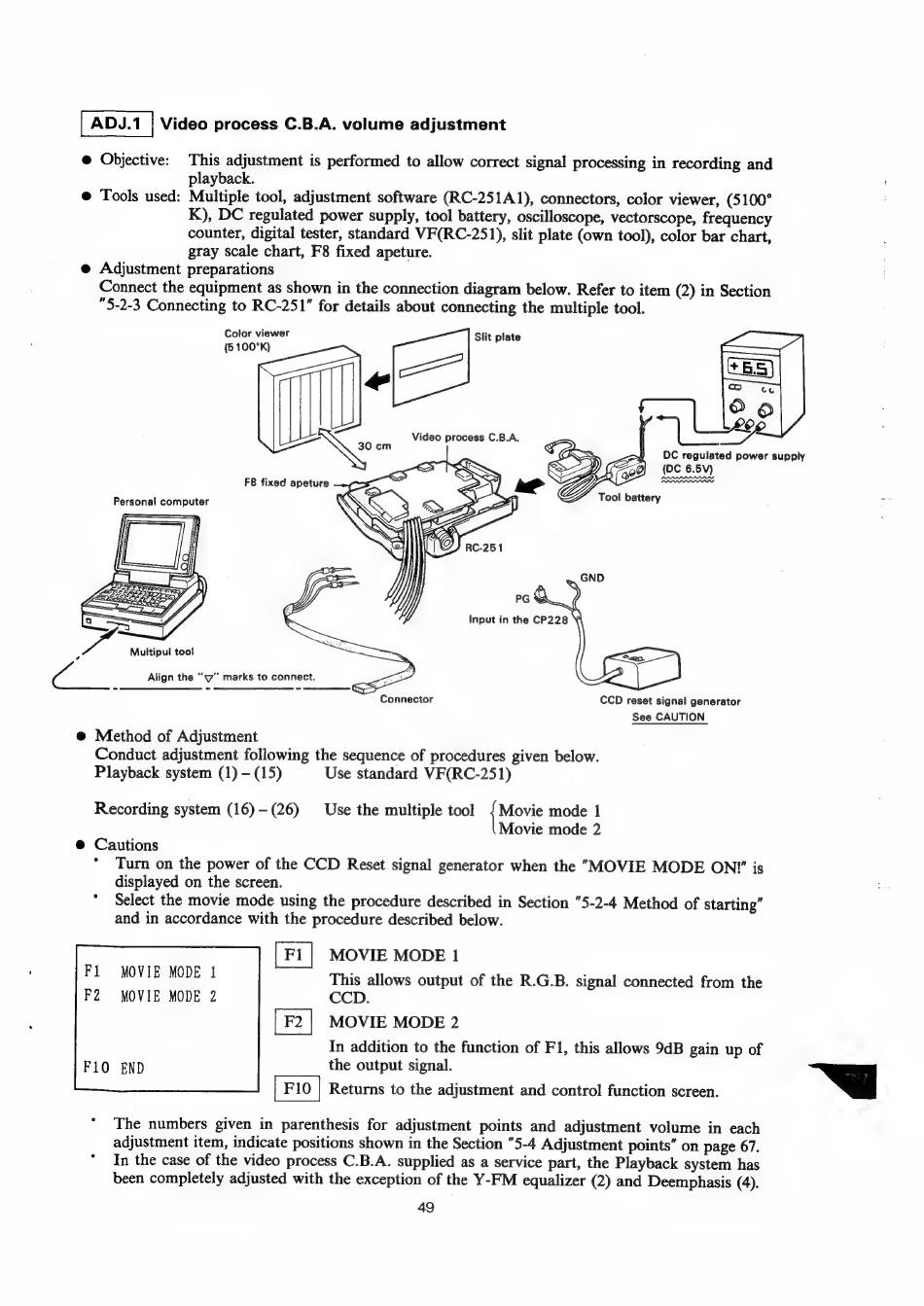

ADJ.1
| Video process C.B.A. volume adjustment
@ Adjustment preparations
Color viewer
Slit plate
(5 100°K)
ye
Connector
CCD reset signal generator
See CAUTION
@ Method of Adjustment
Conduct adjustment following the sequence of procedures given below.
Playback system (1) — (15)
Use standard VF(RC-251)
Recording system (16)—(26)
Use the multiple tool
oui mode 1
Movie mode 2
® Cautions
*
Turn on the power of the CCD Reset signal generator when the "MOVIE MODE ON" is
displayed on the screen.
*
Select the movie mode using the procedure described in Section "5-2-4 Method of starting"
and in accordance with the procedure described below.
MOVIE MODE 1
MOVIE MODE 2
In addition to the function of F1, this allows 9dB gain up of
49
