Onkyo DX-2500 Service Manual

YX-2500
SERIAL NO.3287

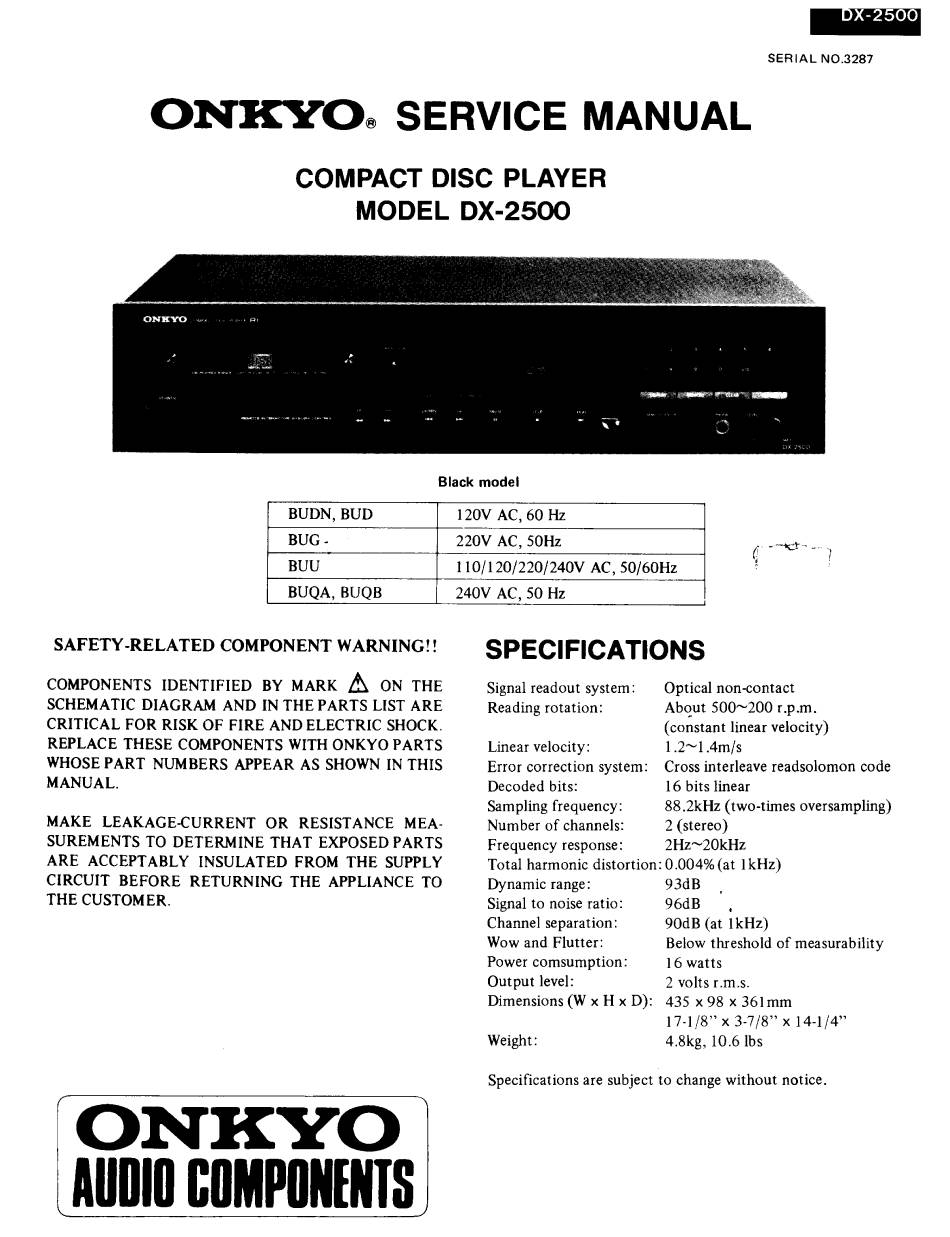

ONKYO.: SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-2500
sed ian nc ee ascii t n
Black mode!
BUDN, BUD
BUQA, BUQB
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
120V AC, 60 Hz
110/120/220/240V AC, 50/60Hz
240V AC, 50 Hz
SPECIFICATIONS
Signal readout system:
Reading rotation:
Optical non-contact
About 500~200 r.p.m.
(constant linear velocity)
1.2~1.4m/s
Cross interleave readsolomon code
16 bits linear
88 .2kHz (two-times oversampling)
Linear velocity:
Error correction system:
Decoded bits:
Sampling frequency:
Number of channels: 2 (stereo)
Frequency response: 2Hz~20kHz
Total harmonic distortion: 0.004% (at 1kHz)
Dynamic range: 93dB
Signal to noise ratio: 96dB_ S C ,
Channel separation: 90dB (at 1kHz)
Wow and Flutter: Below threshold of measurability
Power comsumption: 16 watts
Output level: 2 volts r.m.s.
Dimensions (W x Hx D): 435 x 98 x 361mm
17-1/8" x 3-7/8" x 14-1/4"
Weight: 4.8kg, 10.6 lbs
Specifications are subject to change without notice.
