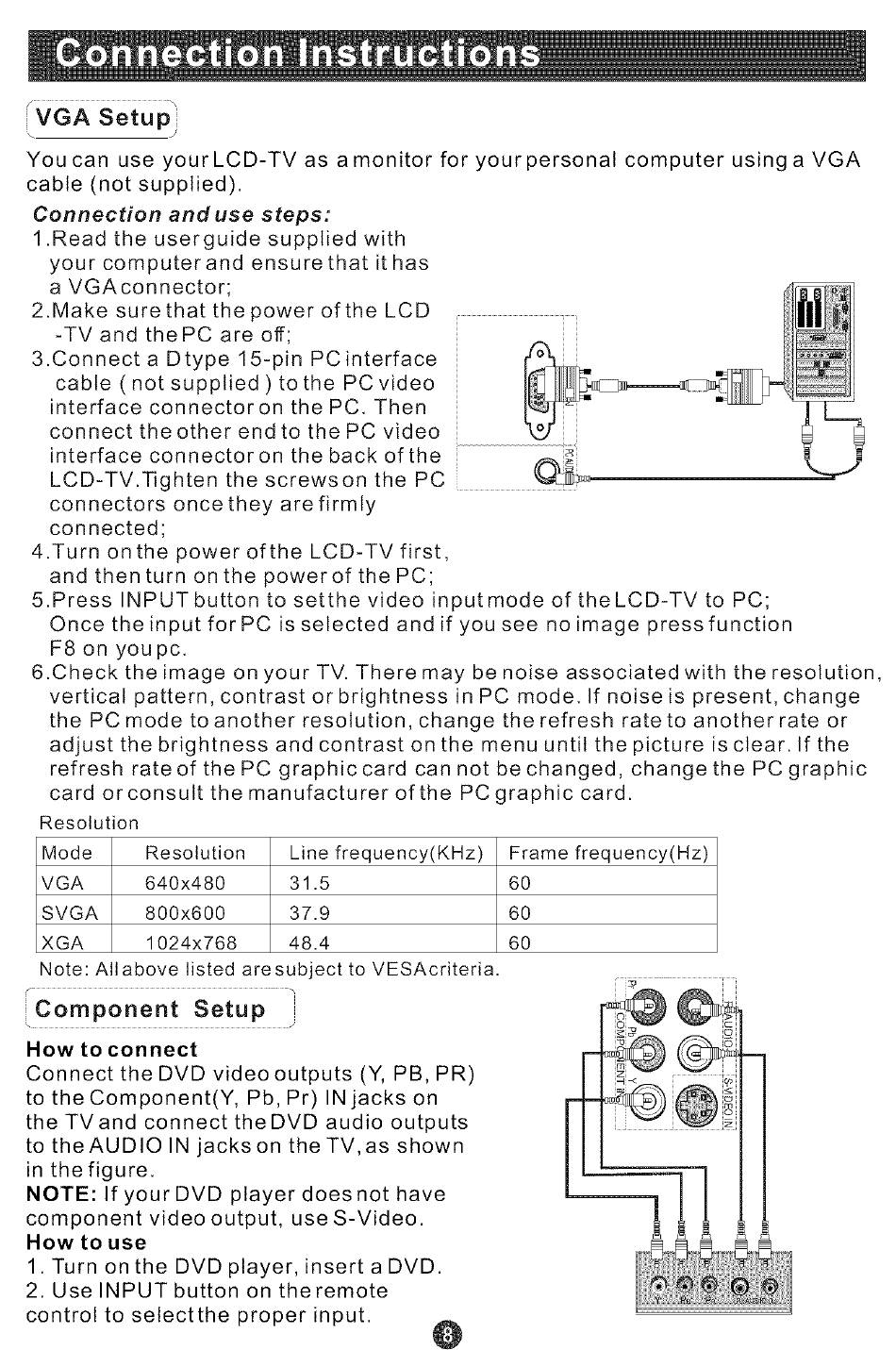

i VGA Setup
You can use yourLCD-TV as amonitor for your personal computer using a VGA
cable (not supplied).
Connection and use steps:
1.Read the userguide supplied with
your computerand ensure that it has
a VGAconnector;
2.Make sure that the power of the LCD
-TV and the PC are off;
3.Connect a Dtype 15-pin PC interface
cable (not supplied) to the PC video
interface connector on the PC. Then
connect the other end to the PC video
interface connector on the back of the ,_,,_
LCD-TV.Tighten the screwson the PC _:_
connectors once they are firmly
connected;
4.Turn on the power ofthe LCD-TV first,
and then turn on the power of the PC;
5.Press INPUTbutton to setthe video inputmode of the LCD-TV to PC;
Once the input for PC is selected and if you see no image press function
F8 on you pc.
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed, change the PC graphic
card or consult the manufacturer of the PC graphic card.
Resolution
Mode
VGA
SVGA
XGA
Resolution
640x480 31.5
800x600 37.9
1024x768 48.4
Note: All above listed are subject to VESAcriteria.
f-
Component Setup _
How to connect
Connect the DVD video outputs (Y, PB, PR)
to the Component(Y, Pb, Pr) IN jacks on
the TVand connect theDVD audio outputs
to the AUDIO IN jacks on the TV,as shown
in the figure.
NOTE: If your DVD player doesnot have
component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use INPUT button on theremote
control to selectthe proper input. ,,_
Line frequency(KHz) Frame frequency(Hz)
60
60
6O
