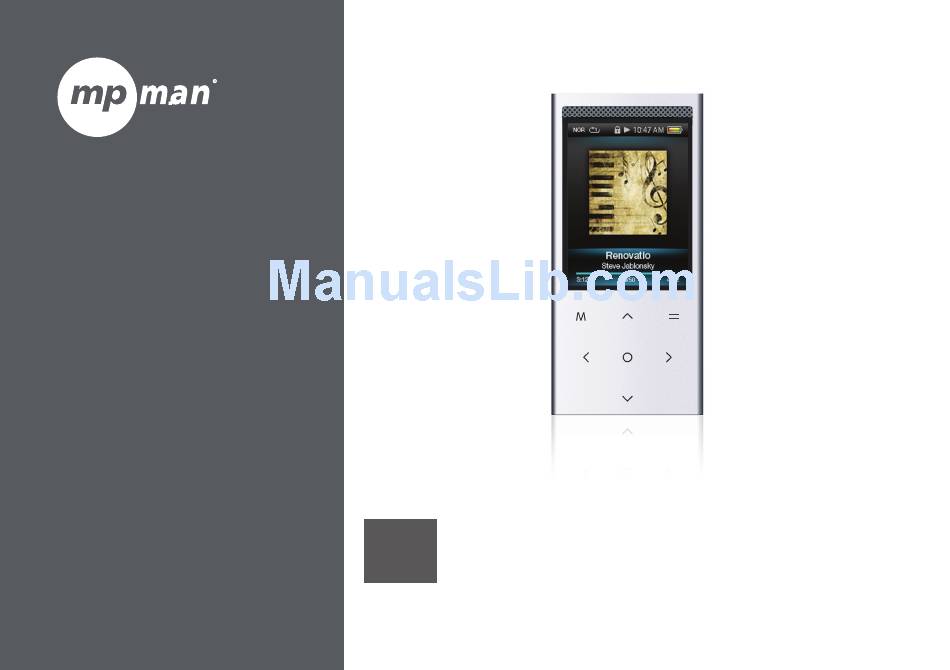

- Page 1 For series Video & MP3 Player with Touchpad Control TK262 Instruction Manual Please read carefully before use.
-
Page 2: Table Of Contents
Table of Contents  Thank You ............................. 5 Package Contents ..........................5 Features ............................5 ConTrols aT a GlanCe ......................6 GeTTinG sTarTed ........................... 7 Charging the Battery ........................7 Charging with a Computer ......................7 Turning the Player On/Off ......................7 Resetting the Player ........................8 Disabling the Controls (Hold) ......................8 Using the Touchpad Controls ......................8 Main Menu .......................... - Page 3 PhoTo Mode ..........................15 Photo Browser Controls .........................15 Video Mode ..........................17 Movie Browser Controls ........................ 17 Movie Playback Controls ......................17 radio Mode ..........................19 Radio Tuning Controls ........................19 Quick Option Menu ......................19 TexT Mode ...........................22 Text Browser Controls ........................22 Text Reader Controls ........................22 Quick Option Menu ......................22 exPlorer Mode ..........................25...
- Page 4 TroubleshooTinG & suPPorT ....................33 Page 4 Table Of Contents...
-
Page 5: Thank You
Thank You  Congratulations on your purchase of the Video & MP3 player. This manual is designed to help you easily set up and begin using your new player right away. Please read this manual carefully and retain it for future reference. -
Page 6: Controls At A Glance
Controls at a Glance  Front View 1. Integrated Speakers 2. LCD Display 3. Menu Button <MENU> <UP> <DOWN> 4. Control Buttons <LEFT> <RIGHT> 5. Enter Button <ENTER> 6. Option Button <OPTION> Side View Power/Hold Switch Slide and hold the switch down to power <POWER>... -
Page 7: Getting Started
Getting started  Charging the Battery Charging with a Computer Your player has an integrated rechargeable battery. Your player can be charged through a USB com- Upon initial use, the battery should be charged fully puter connection. Use the supplied USB cable to to ensure optimal performance and battery life. -
Page 8: Resetting The Player
Resetting the Player A lock icon will appear on the screen when the controls are disabled. Re-enable the Reset the player if it should freeze and not respond controls to continue. or otherwise malfunction. 1. Disconnect your player if it is connected to a computer. - Page 9 — <RIGHT> Move the selection right. — <LEFT> Move the selection left. Touch <ENTER> to confirm a selection. Touch <MENU> to return to the previous screen. Page 9 Getting Started...
-
Page 10: Main Menu
Main Menu  Main Menu Controls When you turn on the player, you will see the Main menu. The Main menu gives you access to the differ- To browse through the different modes, touch ent function modes of your player. These modes are: <UP>... -
Page 11: Music Mode
Music Mode  Browse for and play your music files. To select an item Touch <ENTER> To return to the previous screen Touch <MENU> If you have loaded new music files onto To return to the Main menu Hold <MENU> the player, the music library will need to be refreshed when you enter Music mode. -
Page 12: Now Playing Controls (Music Playback)
Now Playing Controls (Music The following functions may be performed from the Now Playing screen. Playback) Function Key Action To start playing music, browse for a song and then To play the next track Touch <RIGHT> touch <ENTER> to start playback. To play the previous track Touch <LEFT>... -
Page 13: Quick Option Menu
Quick Option Menu Select a digital equalizer preset to optimize the way the player processes audio signals. The options are: To access the quick option menu, touch <OPTION> Normal, Rock, Pop, Classic, Soft, Jazz, Base, User EQ, on the Now Playing screen. SRS WOW, SRS WOWHD, and TruBass. - Page 14 Bookmark Lyric display requires a “.LRC” lyric file which Set the current playing position as a bookmark. may be found on the internet or may be created with a Lyric file editor. Lyric files can To load the bookmark, select “Tag List” from contain synchronized timing information the Music Browser menu.
-
Page 15: Photo Mode
Photo Mode  Browse for and view your photo files. Photo Viewer Controls For more information about how to get To view a photo, browse through the thumbnail photos onto your player, please refer to the photos and then touch <ENTER>. section “Transferring Files to the Player”. - Page 16 Quick Option Menu Select Zoom Out to decrease the magnification level of the photo. To access the quick option menu, touch <OPTION> on the manual Photo Viewer screen. — Touch <MENU> to return to normal view. To browse through the settings, touch <UP> or The Zoom In/Out function works for JPEG <DOWN>...
-
Page 17: Video Mode
Video Mode  Browse for and play your video files. Function Key Action To browse through the list of video files & Touch <UP> or Your player supports AVI video files. Please refer to the Specifications section for details. folders <DOWN>... - Page 18 Function Key Action Item Description Normal Play all tracks once and no repeat. To play the next video Touch <RIGHT> Repeat One Play the current track repeatedly. To play the previous video Touch <LEFT> To scan quickly through the current Hold <RIGHT>...
-
Page 19: Radio Mode
radio Mode  listen to fM radio broadcasts. Function Key Action To turn off the volume(mute) Touch <ENTER> You must have a pair of headphones con- nected to the headphone jack to receive To tune to a higher station Touch <RIGHT> FM broadcasts;... - Page 20 To return to the previous screen, touch <MENU>. Station list Display all preset stations. Manual (or Preset) Mode Touch <UP> or <DOWN> to highlight a station. Set the FM Tuning mode to Manual or Preset. Touch <ENTER> to listen the station. Save channel Forced Mono Save the current station to the Preset Station list.
- Page 21 Area Set the FM frequency range (USA, Europe, Japan). Page 21 Radio Mode...
-
Page 22: Text Mode
Text Mode  Read .TXT files loaded on your player. Function Key Action To select/view an item Touch <ENTER> Text Browser Controls To return to the previous screen Touch <MENU> When you choose TEXT from the Main menu, you To return to the Main menu Hold <MENU>... - Page 23 Quick Option Menu Auto Scroll Time The Quick Option menu gives you easy access to Touch <UP> or <DOWN> to adjust the amount of your player’s option settings. time between pages during Auto Scroll mode. Touch <OPTION> to access the Quick Option menu. Set Font Size ...
- Page 24 2. Touch <UP> or <DOWN> to select a Bookmark. 3. Touch <OPTION>, a warning screen will appear. 4. Touch <LEFT> or <RIGHT> to select “YES” and touch <ENTER> to confirm. Page 24 Text Mode...
-
Page 25: Explorer Mode
Explorer Mode  Enter Explorer mode to view and delete folders and files loaded on your player. To enter Explorer mode, select and confirm Function Key Action EXPLORER from the Main Menu. To browse through the list of files Touch <UP> or <DOWN> If a compatible file is selected and confirmed, the &... - Page 26 To browse through the settings, touch <UP> or Touch <UP> or <DOWN> to select a folder. <DOWN>. Touch <ENTER> to comfirm, the player will start To select a setting, touch <ENTER>. copying the selection. To return to the previous screen, touch Delete <MENU>.
-
Page 27: Setup Mode
Setup Mode  Enter the Setup mode to set your player’s system options. To enter Setup mode, select SETUP in the Main menu. Function Key Action To browse through the options Touch <UP> or <DOWN> To select an item Touch <ENTER> To cancel and return to the previous screen Touch <MENU>... -
Page 28: Display Setting
Item Description Sleep Set a sleep timer to turn the player off automatically. Display Setting Backlight Adjust the duration of time (in seconds) that the backlight will remain on after a key touch. A setting of “Always On” will keep the backlight on continuously. Brightness Adjust the brightness of the screen. - Page 29 Item Description Default Restore all of the player's settings to their factory-default state. Page 29 Setup Mode...
-
Page 30: Video Conversion
Video Conversion  For movie and music synchronisation and conversion, please use MPMANAGER software supplied in the CD ROM. This software can be used also for UPDATE of your player. MPMANAGER manual is included in your CDROM. Page 30 Video Conversion... -
Page 31: Specifications
Specifications  Design, specifications, and manual are subject to change without notice. Display Type 2.4” Full-Color TFT LCD @ 240x320 Memory Integrated Flash Memory Audio Format Support MP3, WMA, APE Video Format Support Photo Format Support JPEG, BMP, GIF Song Info Support ID3, Windows Media FM Frequency Range 87.5 - 108.0MHz... - Page 32 Play Time Music: 10 hours* * Music play time is an estimated value based on playing an MP3 encoded at 128 kbps. Actual play time may vary depending on encoding method used and other factors. Page 32 Specifications...
- Page 33 Troubleshooting & Support  If you have a problem with this device, please check the troubleshooting below. If these resources do not resolve the problem, please contact Technical Support. The player does not turn on. Ensure that the player is fully charged. Try charging the player overnight (8 hours). ...
- Page 34 There is no sound during playback. The player will not play my music file. Check the volume level. Ensure that the file is in a compatible format. Ensure that the headphones are attached The file may be copy-protected and you no securely to the player.
- Page 35 Page 35 Troubleshooting & Support...
- Page 36 For more information please check our website www.mpmaneurope.com...
