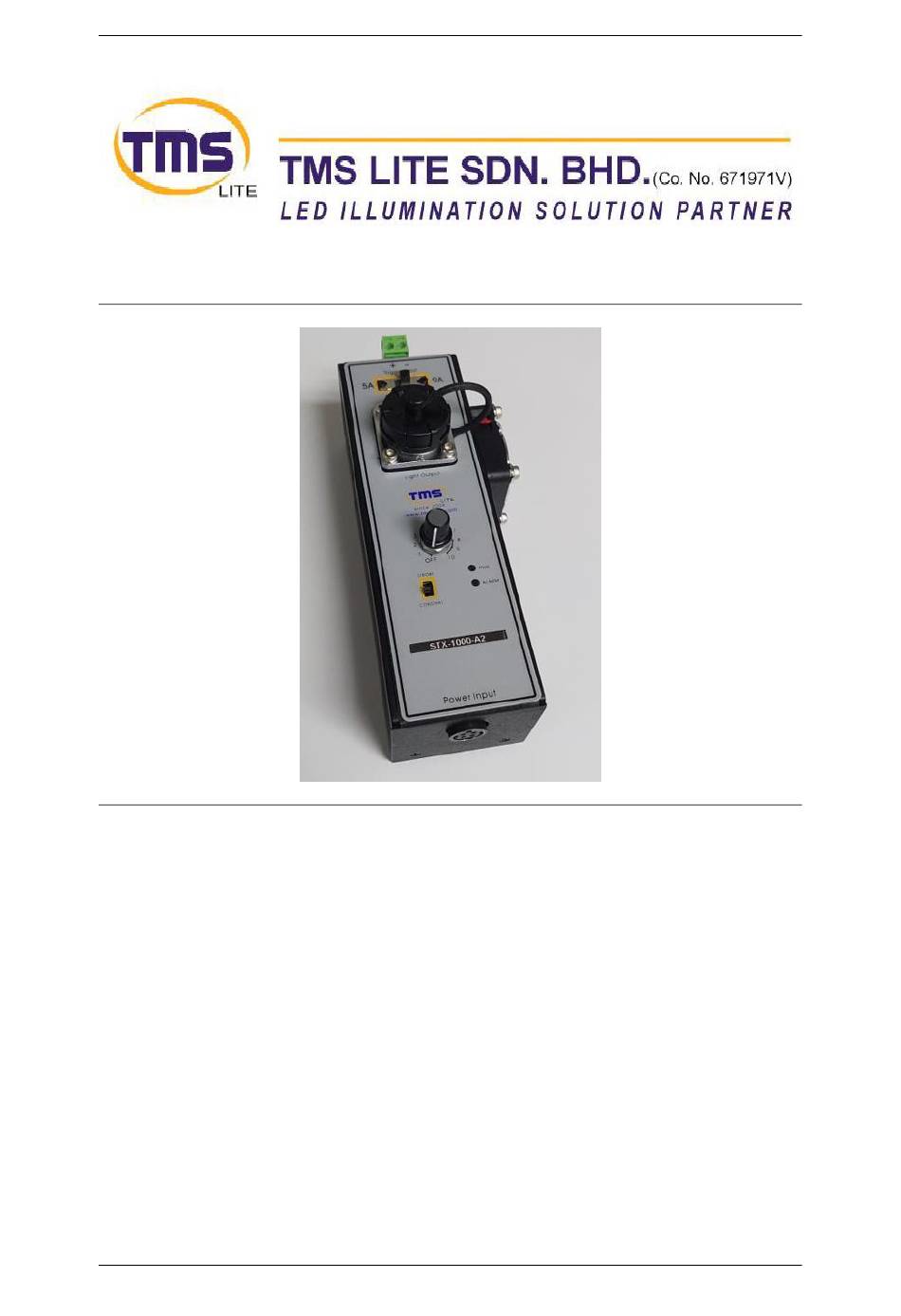

- Page 1 TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT STX-1000-A2 (CONSTANT AND TRIGGER MODE) USER MANUAL Rev 1.0 - i -...
-
Page 2: Table Of Contents
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Contents General Description ..........................1 Specification of STX-1000-A2 ......................1 Specification of Adaptor 24VDC ......................1 Panel Label / Connection Description ...................... 2 Front & Rear Panel: ..........................2 Side Top & Side Rear : ......................... 3 STX-1000-A2 Operation Mode ........................ -
Page 3: General Description
STX-1000-A2 LIGHTING CONTROLLER UNIT General Description Introduction The STX-1000-A2 controller provides analog intensity control of LED lighting for machine vision applications. The STX-1000-A2 provides single channel output, with High current output selection (5A/9A) and selectable mode: Constant & Strobe. Front Panel... -
Page 4: Panel Label / Connection Description
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Panel Label / Connection Description Front & Rear Panel: VR Knob Intensity Current Output Select control Modes Select Switch Switch (5A / 9A) (Constant / Strobe) WS20M Connector Light Output Overheat Power LED Description... -
Page 5: Side Top & Side Rear
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Side Top & Side Rear : Power Input 24VDC ( R7B Connector ) Input Trigger Signal Description Trigger + Trigger - - 3 -... -
Page 6: Stx-1000-A2 Operation Mode
Connect a power cord cable to 100V - 240V AC supply line to the Adaptor chassis plug and plug the R7B header to controller for supply DC voltage to controller, PWR Led Green will Light “ON” when is Power Up. Operation Mode There are two functional modes for STX-1000-A2: • Constant Mode • Trigger Mode Constant Mode The unit will operate in Constant Mode when the slide switch is set at “CONSTANT”... -
Page 7: Precautions
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Precautions. − Do not open the cover of the product Electric shock may occur, do not touch the internal parts. − Automatically Shutdowns, protection controller damages. When the temperature controller reach result overheat more that >100° C, the controller will automatically shutdown and the Alarm LED (RED) will blink. -
Page 8: Dimension Layout
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Dimension Layout Unit = mm Schematic STX-1000-A2 - 6 -... -
Page 9: Cable Selection
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Cable Selection MODEL POWER LENGTH EXTX-WS20M-M12F-24V-XX ** XX = Length WS20M Connector Description Light Output + Light Output - M12 Connector Description Light Output + Light Output + Light Output - Light Output -... -
Page 10: Accessories
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Accessories Additional accessories that can be used with STX-1000-A2 controllers. • 24V power supply • Choose one Power Cord UK, US or EU MODEL SPECIFICATIONS • STX-1000-A2-PS9.2A-UK (CONTROLLER WITH 24V ADAPTOR AND UK POWER CORD) •... -
Page 11: Power Cord Information
TMS Lite STX-1000-A2 LIGHTING CONTROLLER UNIT Power Cord Information The cable length is 1.8 Meter length of power cord. 240VAC Power Cord (UK) 220VAC Power Cord (EU) 110VAC Power Cord (US) - 9 -... - Page 12 Thank you for downloading this catalogue from www.machine-vision-shop.com If you have any questions, you need help composing the right package for your application or do you want to order? Natascha Overhof Feel free to contact us via e-mail at sales@vision- consultancy.nl or visit our webshop.
