Charger Bosch C80-Li I Operating instructions
3.4

Overheating protection

If the unit becomes excessively hot during charging, the output power and output
current is automatically reduced to avoid damaging the unit.

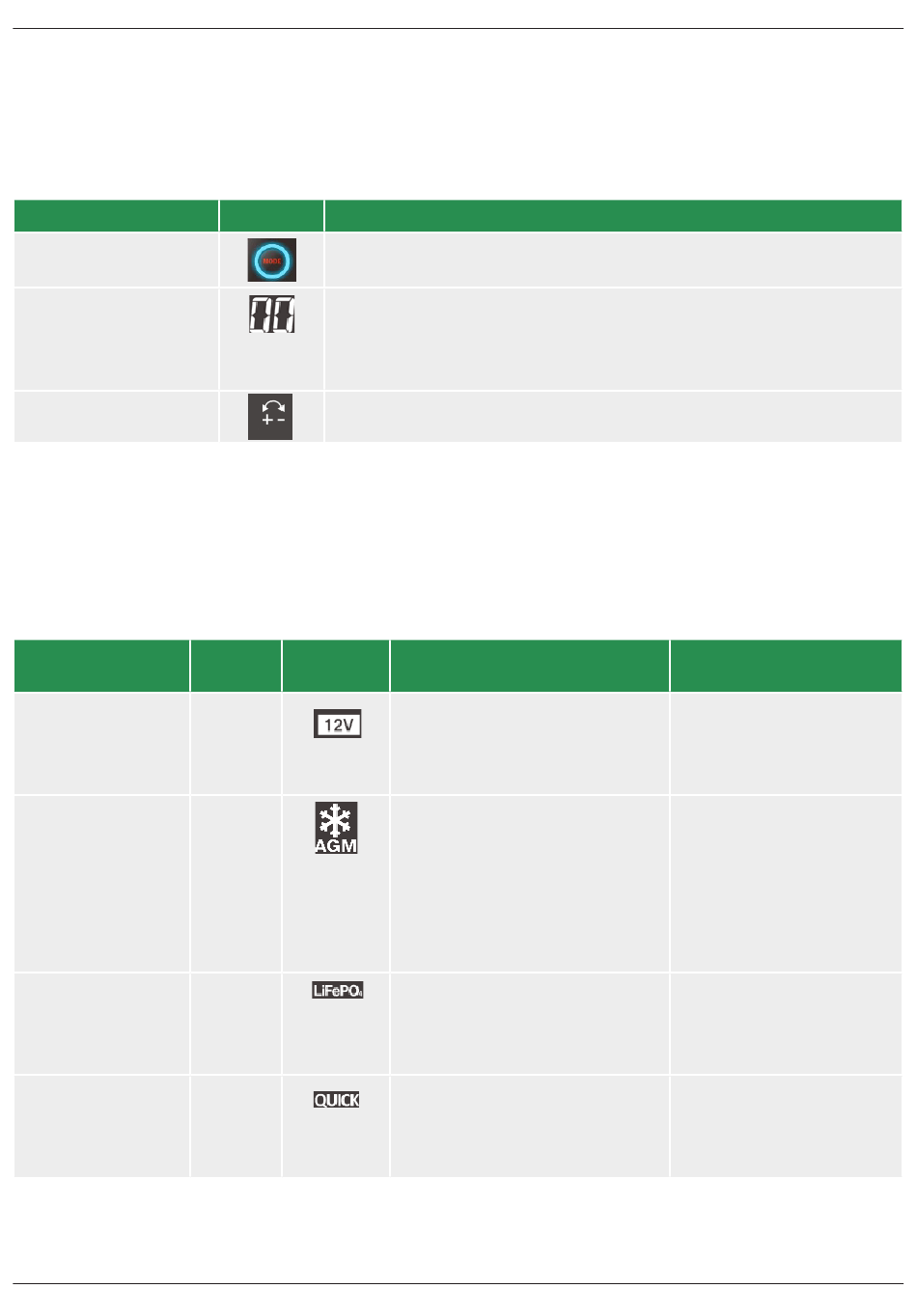

3.5 Standby and reverse polarity protection
Mode
Key illumination
LCD digital display
Reversed Hook-up
Protection

4 Mode selection

1. Select the required mode by pressing the mode selection button.
2. The desired mode icon will light up.
3. If there is no other operation, it will automatically enter the charging mode in 5
seconds.
Mode
Mode 1
Car Mode
Mode 2
Cold/AGM Mode
Mode 3
LiFePO4 Mode
Mode 4
Quick Mode1
Indication Operating Instructions
Lights up when turned on and fully charged. Flashes while
charging
Power On, light up.
Connect battery, battery voltage display.
Charging starts, battery voltage and capacity display
alternately
Icon will flash when terminal blocks have been swapped
Output Indication Operating Instructions
14.4 V
15 A
14.7 V
15 A
14.2 V
15 A
14.4 V
20 A
Press the button once to
select Mode 1
◾ 12 V icon lights up
Press the button twice to
select Mode 2
◾ 12 V & snowflake/AGM
icon light up
Press the button 3 times to
select Mode 3
◾ 12 V & LiFePO4 icon lights
up
Press the button 4 times to
select Mode 4
◾ 12 V & QUICK icon lights
up
Supporting Battery
Types
12 V WET, EFB and the
majority of GEL
batteries. Capacity of >
30 Ah in normal state
Cold state (0 - 4 °C) of
12 V WET, EFB and the
majority of GEL
batteries. And for many
12V AGM batteries.
Capacity of > 30 Ah in
normal state
12 V LiFePO4 batteries.
Capacity of > 30 Ah in
normal state
12 V WET, EFB and the
majority of GEL
batteries. Capacity of >
30 Ah in normal state
