Charger Bosch C80-Li I Operating instructions

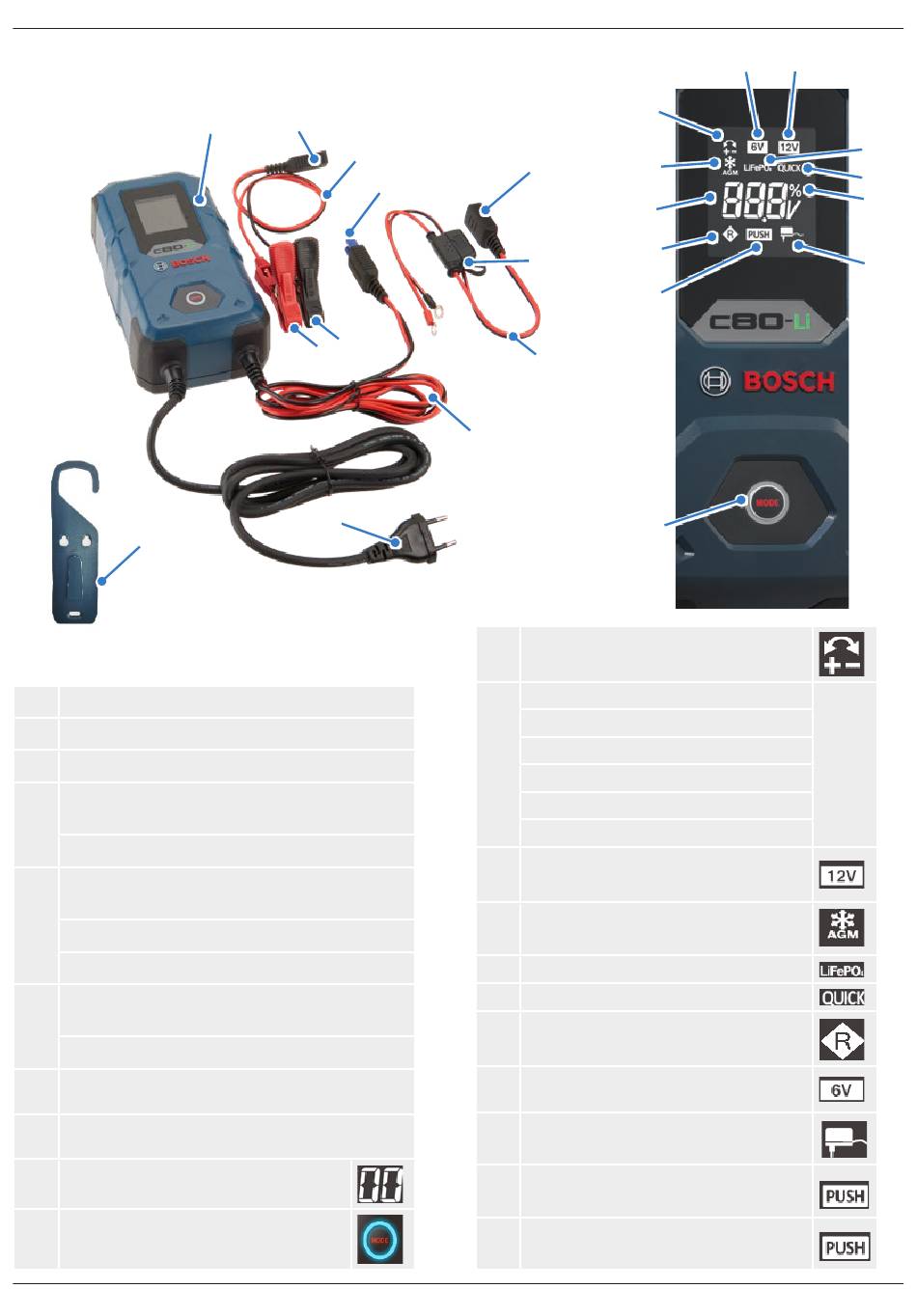

Device description

(2) (2)
1 Charger
2 Mounting hook
3 Mains cable with mains connection
4 Charging cable with cable plug (red
and black)
a Plug
5 Charging cables with ring eyelets
(red and black)
a Plug
b Fuse
6 Charging cable with terminal clamps
(red and black)
a Plug
7 (+) Terminal clamp (red)
8 (–) Terminal clamp (black)
9 Standby
10 Mode selection button
(6a) (6a)
(1) (1)
(6) (6)
(8) (8)
(7) (7)
(3) (3)
(5a) (5a)
(4a) (4a)
(5b) (5b)
(5) (5)
(4) (4)
11 Reverse polarity protection + -
12 Battery capacity indication
Battery capacity: Lo %
Battery capacity: 25 %
Battery capacity: 50 %
Battery capacity: 75 %
Battery capacity: 100 %
13 Mode 1 | 12 V
(Car Charging)
14 Mode 2 | 12 V (Charging at
0-4 °C in winter, or AGM)
15 Mode 3 | 12 V (LiFePO4)
16 Mode 4 | 12 V (Quick)
17 Mode 5 | 12 V
(Regeneration)
18 Mode 6 | 6 V (Normal)
19 Modus 7 | 12V (Power supply)
20 Mode 8 | 6 V
Push charging
21 Mode 9 | 12 V
Push charging
(13) (13)
(18) (18)
(11) (11)
(14) (14)
(9) (9)
(17) (17)
(20) (20)
(21) (21)
(10) (10)
EN
(15) (15)
(16) (16)
(12) (12)
(19) (19)
13
