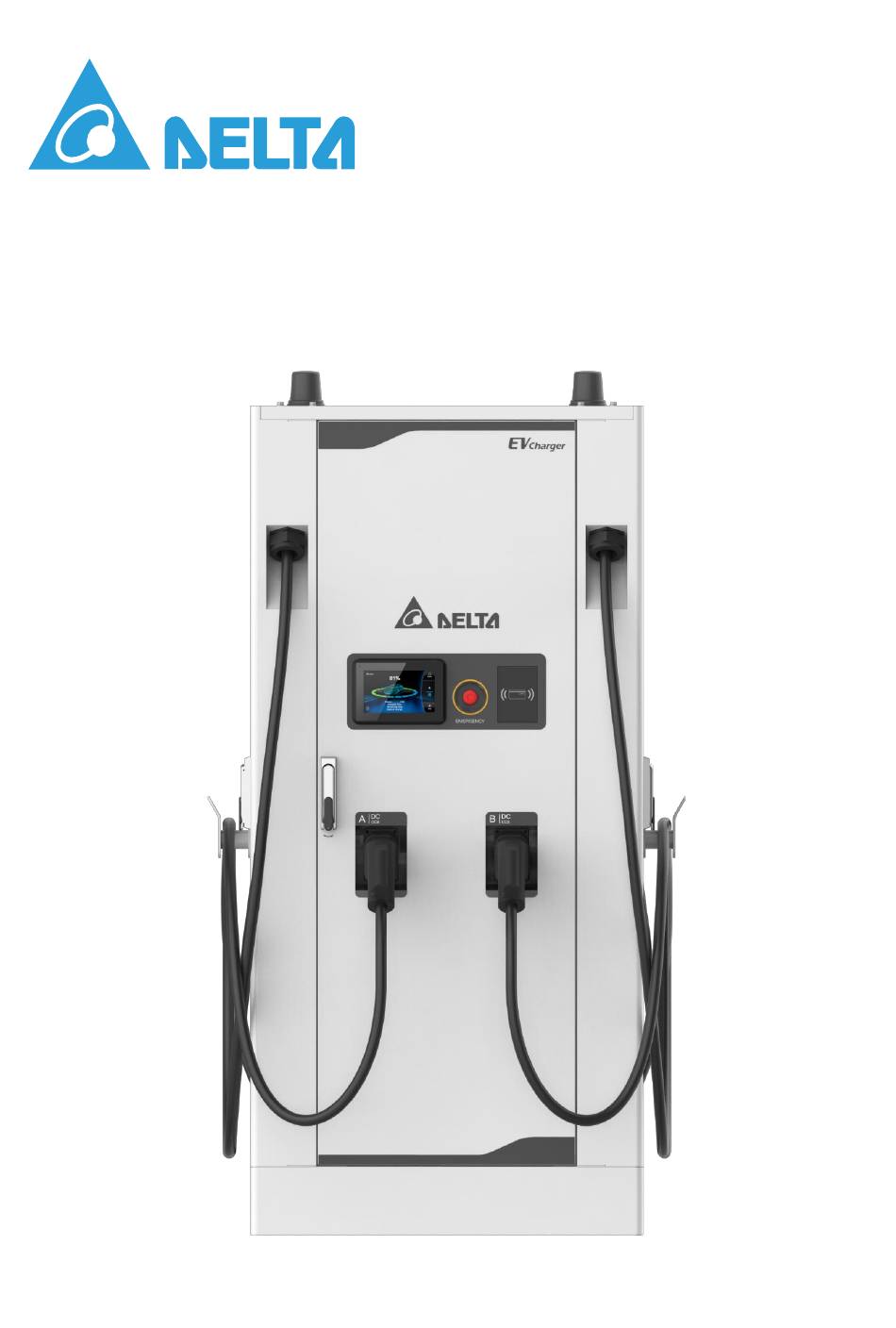

- Page 1 DC City Charger Installation and Operation Manual Version: EIDS-E200 V1.4.0...
-
Page 2: Table Of Contents
ABLE OF ONTENTS Introduction ......................1 Features ....................1 Applications .................... 1 Overview ....................2 Accessory Kit ..................2 Important Safety and Wiring Instructions ............3 Safety and Compliance ................ 3 Electrical Service Wiring ............... 3 Before Installation ....................5 Safety Requirements ................ - Page 3 Installation and Operation Manual...
-
Page 4: General Conventions
Conventions General Conventions The following conventions are used in this manual: Note: Indicates additional information that is relevant to the current process or procedure. WARNING! Warning information appears before the text it references to emphasize that the content may prevent damage to the device or equipment. CAUTION! AUTIONS APPEAR BEFORE THE TEXT IT REFERENCES CAUTIONS APPEAR IN CAPITAL LETTERS TO... - Page 5 Delta Electronics, Inc. ("Delta"). The Manual can only be applied to operation or use of the product. Any dis- position, duplication, dissemination, reproduction, modification, translation, extraction or any other usage to the Manual is prohibited without obtaining Delta's prior written permission.
-
Page 6: Introduction
Introduction Introduction DC City Charger is an ideal solution for high efficiency urban charging service. It supports simultaneous charging output and load distribution to optimize utilization rate of the charging site. DC City Charger is compatible to OCPP which allows further backend system integration like user management, remote control and energy management. -
Page 7: Overview
Introduction Overview Note: The product outlook is subject to the configuration of charging connector and reader type. Accessory Kit RFID cards x 2 Keys x 3 User manual x 1 Aluminum base cover x 1 Mounting template x 1 Expansion bolts x 4 M16 bolts x 4 Installation and Operation Manual... -
Page 8: Important Safety And Wiring Instructions
Important Safety and Wiring Instructions Important Safety and Wiring Instructions Safety and Compliance IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This document provides instructions for DC City Charger and should not be used for any other product. The product can only be installed by a licensed contractor, and/or a licensed electrician in accordance with all applicable state, local and national electrical codes and standards in a location with non-restricted access. -
Page 9: Grounding Instructions
380 - 415V Three-Phase WARNING! This feed is from a Wye-connection or Delta-connection power grid, and DC City Charger shall connect to L1, L2 and L3. Earth ground must be connected at only one point, usually at the breaker panel. -
Page 10: Before Installation
Ring terminal TLK95-8 ⚫ The instruction manual for a 3-phase unit shall include the electrical ratings for Delta or Wye phase configurations when the unit is limited to only one configuration. ⚫ Refer to Chapter Making the Connection for further detail about the selection of copper wire and terminal. -
Page 11: Installation Site Selection
Before Installation Installation Site Selection DC City Charger can be installed in both indoor and outdoor environments. It is necessary to consider the installation conditions and protection at the site: ⚫ Follow local electrical regulation and installation standards. ⚫ Consider the emergency routes at the installation site. ⚫... -
Page 12: Installing The Dc City Charger
Installing the DC City Charger Installing the DC City Charger Preparation 1. Remove the screws securing the top cover of the plywood crate with a No. 8 socket wrench. 2. Open the top cover. Installation and Operation Manual... - Page 13 Installing the DC City Charger 3. Remove the screws securing the front and rear walls of the crate with a No. 8 socket wrench. 4. Remove the front and rear walls. 5. Remove the screws securing the left and right sidewalls of the crate with a No. 8 socket wrench. 6.
- Page 14 Installing the DC City Charger 7. Remove the foam and protective materials and open the plastic bag. 8. Cut off the cable ties to release the cables. Cable ties Installation and Operation Manual...
- Page 15 Installing the DC City Charger 9. Open the left door (clockwise) and right door (anticlockwise). Press the handle back to the lock slot to make sure that the door lock is closed. ® 10. Release the 4 screws on the base panel (two sides) with a Torx Tamper-Resistant T15 &...
- Page 16 Installing the DC City Charger 12. Transport the cabinet. ⚫ Transporting with the crane: The included angle hanging the cabinet on the top shall be 30°. Installation and Operation Manual...
- Page 17 Installing the DC City Charger ⚫ Transporting with the forklift: Refer to the dimension when transporting the cabinet with fork- lift. There are two ways to lift the cabinet, either removing the side plates or the front plate of the charger at the charger bottom, or lift with the pallet. Side plate view Front plate view Pallet view...
- Page 18 Installing the DC City Charger 13. Replace the eye bolts with M16 bolts x4 with a No. 19 socket wrench after DC City charger has been well-placed. Installation and Operation Manual...
-
Page 19: Ground Mounting
Installing the DC City Charger Ground mounting 1. The mounting site must have a minimum width of 2650 mm and a depth of 1720 mm to endure adequate ventilation and maintenance space. ⚫ Charger size W x D x H: 850 x 680 x 1800 mm ⚫... - Page 20 Installing the DC City Charger 3. Each hole for holding the power cables of the Ethernet cable should have diameter of 50 mm and 40 mm. There are 5 holes in total. Installation and Operation Manual...
- Page 21 Installing the DC City Charger ⚫ The five M6 screws on the base cover (W x D = 217 x 122 mm) can be removed by using a No. 10 socket wrench. Part No. G(Max) 3105936000 M6*1.0 10.0 12.0 4. After the wiring work, it is required to return the base cover. Ensure the input cable holes through the base cover are well sealed after routing the cables and fastening on the base of charger in order to prevent small animals, insects, water and dust entering the cabinet.
- Page 22 Installing the DC City Charger Note: The minimum distance between the left changer and the right charger should be 1500 mm. The minimum distance between the chargers and the wall should be 220 mm. 1500 wall Installation and Operation Manual...
- Page 23 Installing the DC City Charger Note: The minimum distance between the back panels of two chargers should be 550 mm (20 inches), so as to allow the left and right panels to be opened fully at an angle of 110°. 110°...
-
Page 24: Making The Connection
Making the Connection Making the Connection Power Wiring 1. Open the front door for wiring. 2. Release the four M4 screws on the front bottom panel with a No. 2 Philips screwdriver. Torque force 1.8 N.m 3. Route the power wires through the bottom or rear of the enclosure. 4. -
Page 25: Ethernet Connection
Making the Connection Ethernet Connection 1. It is recommended to connect Ethernet cables through the underside access ports. It is neces- sary to open the front cover and the left door. It is recommended to reserve at least 2.2 m Ethernet cable above the ground. -
Page 26: Cellular Connection
Making the Connection Cellular Connection 1. Open the left door. 2. Insert mirco SIM card onto the micro SIM interface on the upper controller. 3. Enable the communication. Refer to Chapter System Configuration. Note: ⚫ Insert a valid SIM card as detailed above to start cellular connection. Consult with local operator to activate data service on the SIM card beforehand. -
Page 27: Switch On Dc City Charger
Switch on DC City Charger Switch on DC City Charger 1. Open the left door of City Charger, AC input breaker QF1, QF2, QF3 are marked on the side → → panel. Follow the steps to turn on City Charger: QF1 QF3. - Page 28 Switch on DC City Charger Switch off DC City Charger To switch off the City Charger, open the left door of City Charger, AC input breaker QF1, QF2, QF3 are marked on the side panel. Follow the steps to turn on City Charger: QF3 → QF2→ QF1. Note: ⚫...
-
Page 29: Operation
Operation Operation 1. Choose a compatible charging connector (Connector A or B). 2. Swipe the authorized RFID card to start charging. 3. Connect the charging connector to the EV. Installation and Operation Manual... - Page 30 Operation 4. Once charging session starts, status information is displayed on the screen. 5. To stop charging session, press Stop on the screen and swipe the authorized RFID card. RFID card 6. The summary of the charging session will be displayed 7.
-
Page 31: System Configuration
Search DC City Charger Wi-Fi with mobile phone within distance 1m (3.2 ft.) b. The Wifi name is DC City Charger serial number c. Enter password: (Please consult with Delta) to connect mobile phone and DC City Charger d. Enter 192.168.4.1 in Internet browser e. - Page 32 System Configuration ⚫ Use Wi-Fi for network communication ᴏ Enter the Wi-Fi SSID ᴏ If connecting to the Wi-Fi access requires password, enter password ᴏ Select security level, the default is WPA2-Personal ᴏ If Static IP is required, enter IP, sub mask and gateway ⚫...
- Page 33 System Configuration 6. Maintenance related parameters: Select System Setting page to access system parameters. ⚫ In Service tab, configure the system date & time setting parameter to current commissioning date and time if the charger will be operated offline, not connecting to an OCPP Central System. ⚫...
-
Page 34: Firmware Update
System Configuration Firmware Update Check the latest firmware version with Delta Customer Service. Store the firmware in an USB stick. The format must be USB2.0, FAT32 and less than 32GB is preferred. Open left door and insert USB stick to the USB port on upper CSU(Main CSU) Once the USB stick is detected, the screen will advance to Select Firmware Update to start updating. -
Page 35: Maintenance
Maintenance Maintenance Annual Requirements 1. Replace the ventilation filter. Depending on the operation environment, the filter may need to be replaced more frequently. Conduct a visual inspection to the filters. 2. Conduct a visual inspection of the charging cable and ensure that the cable does not show any visual damage or deformation. -
Page 36: Specifications
Specifications Specifications 200kW model Single Output Dual Outputs Input Rating 380 - 415Vac, 3-Phase, 50 / 60 Hz, L1, L2, L3, PE, 291A Power Factor 0.99 at nominal output Power Input Current THD Compliant with IEEE 519: 2014 ≥96% Efficiency Output Voltage 150 - 950 Vdc Output Interface... - Page 37 Specifications 150kW model Single Output Dual Outputs Input Rating 380 - 415Vac, 3-Phase, 50 / 60 Hz, L1, L2, L3, PE, 239A Power Factor 0.99 at nominal output Power Input Current THD Compliant with IEEE 519: 2014 ≥96% Efficiency Output Voltage 150 - 950 Vdc Output Interface DC output options: CCS...
