Summary of Contents for Kia Carnival HEV

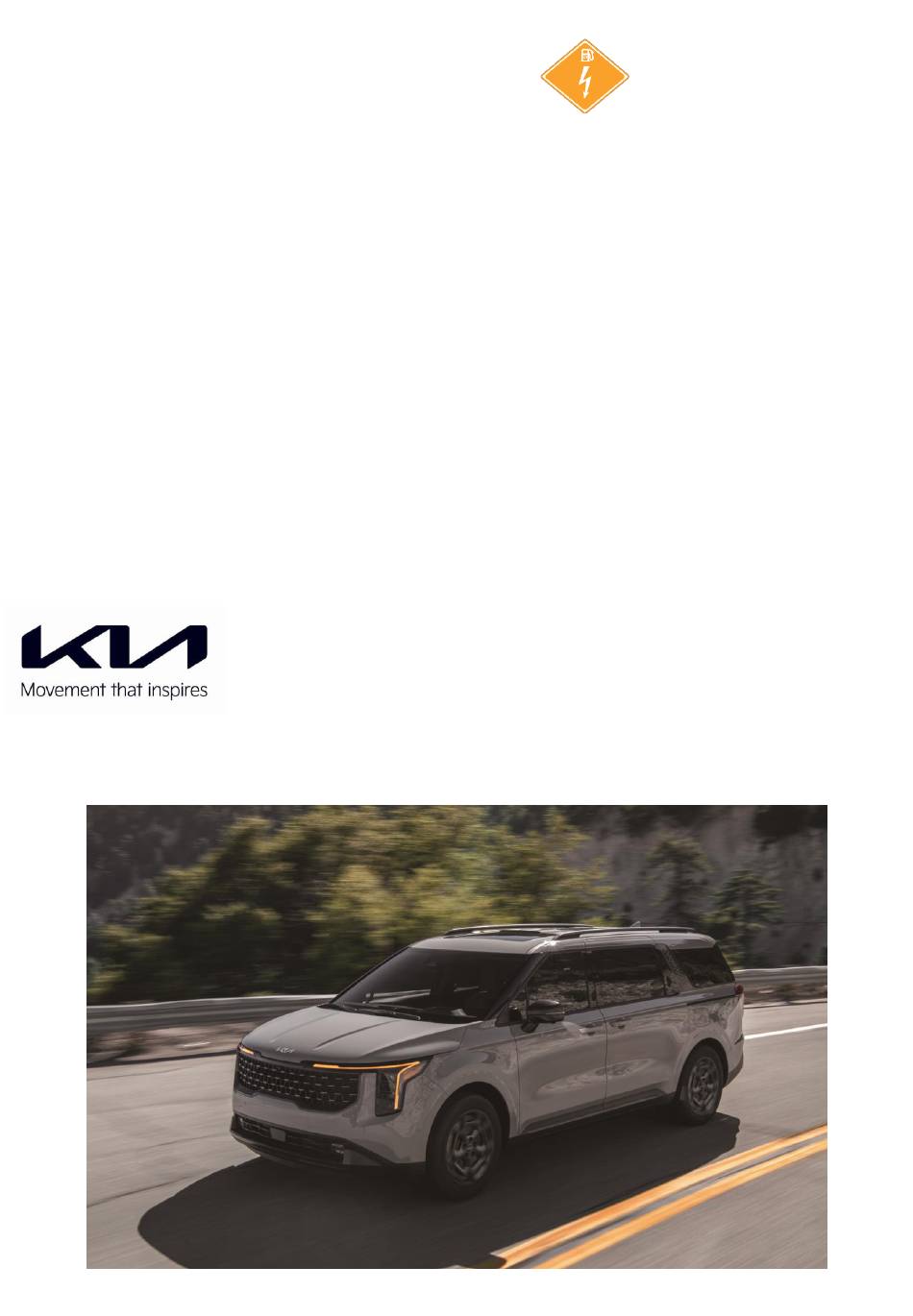

- Page 1 Emergency Response Guide Kia Carnival HEV...
- Page 2 Please note that the guide may be updated by Kia consistently. It is not intended for retailers, end consumers, or any other readers not mentioned in the preceding sentence.
-
Page 3: Table Of Contents
5. Stored energy / liquids / gases / solids 6. In case of fire 7. In case of submersion 8. Towing / transportation / storage 9. Important additional information 10. Explanation of pictograms used Kia Carnival HEV Emergency Response Guide... -
Page 4: Identification / Recognition
Remove all metallic jewelry, including watches and rings. WARNING The Carnival HEV is a hybrid electric vehicle. Emergency responders should properly respond to emergency scenarios involving the Carnival HEV and exercise extreme care to avoid contact with the high-voltage system within the vehicle. - Page 5 1. IDENTIFICATION / RECOGNITION Identifying a Carnival HEV Vehicle certification label The vehicle certification label attached on the driver's (or front passenger's) The Vehicle Identification Number (VIN) side center pillar shows the VIN. is the number used in registering your vehicle and in all legal matters pertaining to its ownership, etc.
- Page 6 1. IDENTIFICATION / RECOGNITION Carnival HEV Cluster Instrument Panel The Carnival HEV cluster instrument panel displays the HEV specific features such as high voltage battery SOC (State of Charge) as below. Type A Type B 1. Speedometer 2. Tachometer / Power gauge 3.
-
Page 7: Immobilization / Stabilization / Lifting
Brake (EPB) vehicle to prevent accidental movement that can endanger response personnels or civilians. When the Carnival HEV is damaged in a crash, the vehicle may appear to be shut off due to no engine sounds even when it is actually not. -
Page 8: Disable Direct Hazards / Safety Regulations
Do not push the “ENGINE” START/STOP button because the vehicle may start (go into READY mode). b) To turn OFF the system, press the 'P' (Park) button on the shifter dial and press the ENGINE START/STOP button. Kia Carnival HEV Emergency Response Guide... - Page 9 The high voltage service interlock cover (A). connector cannot be completely removed. 3. Pull the service interlock (A) up to disengage the high voltage system, ensuring the whole fuse is NOT removed from the junction box. Kia Carnival HEV Emergency Response Guide...
- Page 10 DTC and do not touch the parts related to the high voltage system. NOTE Check the weld flag with the KDS. (b) Measure the voltage between the inverter ( + ) and ( - ) terminals. Kia Carnival HEV Emergency Response Guide...
- Page 11 HEV vehicle. Note that the actual engine room in the vehicle may differ from the picture. Engine room fuse box - The actual engine room in the vehicle may differ from the picture. Kia Carnival HEV Emergency Response Guide...
- Page 12 Failure to follow these instructions will lead to serious bodily injuries or death by electrocution. Kia Carnival HEV Emergency Response Guide...
-
Page 13: Access To The Occupants
4. ACCESS TO THE OCCUPANTS 4.1 Rescue Operations The Carnival HEV is an eco-friendly vehicle. Because of the high-voltage components, the first responders should pay special attention when they rescue occupants in the car. Before performing rescue operations, the first responders should “Identify, Immobilize, and... - Page 14 Depending on the tools used, ultra-high strength steel can be challenging or impossible to cut. If necessary, use a workaround technique. Mild steel High strength steel Ultra-high strength steel Kia Carnival HEV Emergency Response Guide...
- Page 15 Control Module (SRSCM) High-voltage cable Seat belt pretentioner Air-conditioning line Ultra-High Strength High-voltage battery Fuel tank Steel Air-conditioning High-voltage 12 V battery component component Cable Cut (with the service plug that can disable the high-voltage system) Kia Carnival HEV Emergency Response Guide...
-
Page 16: Stored Energy / Liquids / Gases / Solids
1. Battery System Assembly (BSA) 6. Electric A/C Compressor 2. High-Voltage Junction Box 7. Hybrid Starter Generator (HSG) 3. Hybrid Power Control Unit (HPCU) 4. Hybrid Drive Motor Assembly Carnival HEV Specification Capacity 5.5 Ah Voltage 270 V Energy 1.49 kWh... - Page 17 It also converts AC to DC to charge the the generator for the hybrid vehicle. high-voltage battery. The LDC transfers high-voltage electricity to 12 volts to charge 12 V auxiliary battery. Kia Carnival HEV Emergency Response Guide...
- Page 18 HV cables under system and check them to be shorted the car. to the vehicle chassis. Failure to follow these instructions will lead to serious bodily injuries or death by a electrical shock. Kia Carnival HEV Emergency Response Guide...
-
Page 19: Fuel (Gasoline)
5. STORED ENERGY / LIQUIDS / GASES / SOLIDS 5.3 Fuel (Gasoline) Carnival HEV has a 1.6L 4 cylinder turbo engine. The fuel type is gasoline, which is stored in the fuel tank and delivered through the fuel line. When dealing with an emergency, be careful not to cut the fuel line and tank. -
Page 20: In Case Of Fire
NIOSH/MSHA with full protective gear. Even if the high-voltage battery pack is not directly involved in a vehicle fire, approach the vehicle very carefully. NIOSH: National Institute of Occupational Safety & Health MSHA: Mine Safety and Health Administration Kia Carnival HEV Emergency Response Guide... - Page 21 • Do not touch or step on the spilled electrolyte. • If electrolyte leak occurs, wear appropriate solvent resistant PPE and use soil, sand, or a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area. Kia Carnival HEV Emergency Response Guide...
- Page 22 To prevent re-ignition, the first responder and second responder need to be aware of the risk of stranded energy* which remains in the damaged cells and leads to re-ignition. Kia Carnival HEV Emergency Response Guide...
-
Page 23: In Case Of Submersion
• Do not attempt to disengage a service interlock connector while the vehicle is in water. Failure to follow these instructions can lead to death or serious injuries by electrocution. Kia Carnival HEV Emergency Response Guide... -
Page 24: Towing / Transportation / Storage
7-11 to disable the vehicle. Towing the Carnival HEV vehicle is not different from towing a conventional AWD vehicle. If emergency towing is necessary, we... - Page 25 PPE and use soil, sand, or a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area. Battery discharging in the water pool Kia Carnival HEV Emergency Response Guide...
-
Page 26: Important Additional Information
Owner’s Manual for additional information. Connect jumper cables in Do not attempt to jump start the the order shown in the image and Carnival HEV high-voltage battery. disconnect in reverse order. Jump Starting Procedure Failure to follow these instructions will lead to serious bodily injuries or death by electrical shock. - Page 27 Note that the actual airbags and seats in the vehicle may differ from the illustration. Airbags of the Carnival HEV are installed in the areas shown in the image. Before performing emergency procedures, make sure the vehicle ignition switch is turned off and disconnect the auxiliary 12 V negative ( - ) battery terminal and the service interlock connector to prevent accidental deployment of undeployed airbags.
-
Page 28: Seat Belt Pretensioner
9. IMPORTANT ADDITIONAL INFORMATION Seat Belt Pretensioner In the Carnival HEV, not only the driver’s and front passenger's seat belts but also the second-row passengers’ seat belts (except the center) are equipped with pretensioners. When the seat belt pretensioners are activated in a collision,... -
Page 29: Explanation Of Pictograms Used
General warning sign Air-conditioning component Air-conditioning line Airbag inflator Airbag SRS control unit Battery, low-voltage Cable Cut (with the service plug that can disable the high-voltage system) High-voltage power cable Battery pack, high-voltage Seat belt pretensioner Kia Carnival HEV Emergency Response Guide...
