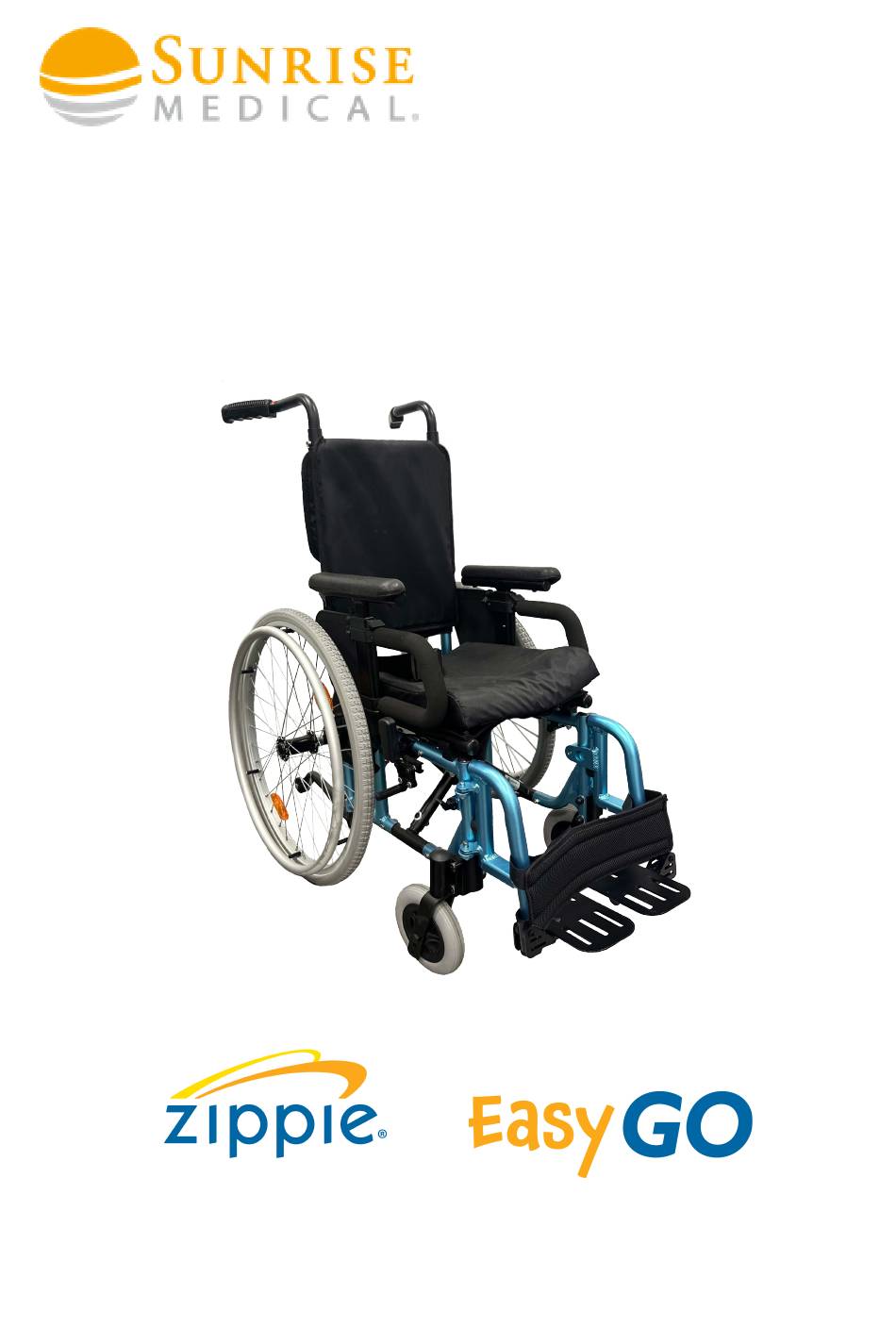

  • Page 1 USER MANUAL...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION GENERAL SAFETY NOTES AND 4-11 DRIVING RESTRICTIONS WHEELCHAIR COMPONENTS UNFOLDING QUICK RELEASE WHEELS INSTALLATION DETACHABLE FOOTREST INSTALLATION CALF STRAP INSTALLATION FOLDING FOOTREST 、FOOTPLATE FOLDING UP ADJUSTMENT ARMREST HEIGHT ADJUSTMENT FOOTPLATE HEIGHT ADJUSTMENT PUSH HANDLES HEIGHT ADJUSTMENT SEAT HEIGHT ADJUSTMENT FORK HEIGHT ADJUSTMENT ANTI-TIPPER HEIGHT ADJUSTMENT SEAT AND BACKREST TIGHTNESS...
  • Page 3 NOTE: The wheelchairs shown and described in this user guide may not correspond in every detail exactly to your own model. However, all instructions are completely relevant, regardless of possible detail differences. The manufacturer reserves the right to alter without notice any weights, measurements or other technical data shown in this manual.

  • Page 4: Area Of Application

    AREA OF APPLICATION. The variety of options as well as the modular design means that it can be used by those who cannot walk or have limited mobility because of: • Paralysis • Loss of extremity (leg amputation) • Extremity defect deformity •...

  • Page 5: General Safety Notes And Driving Restrictions

    GENERAL SAFETY NOTES AND DRIVING RESTRICTIONS THE WHEEL LOCKS ARE NOT INTENDED TO BRAKE YOUR WHEELCHAIR. • They are only there to ensure that your wheelchair does not begin rolling unintentionally. When you stop on uneven ground, you should always use the wheel locks to prevent such rolling.
  • Page 6 reaching and transferring activities in several combinations in the presence of a qualified healthcare professional BEFORE attempting active use of the wheelchair. DO NOT attempt to reach objects if you have to move forward in the seat. DO NOT attempt to reach objects if you have to pick them up from the floor by reaching down between your knees.
  • Page 7 WHEELCHAIR USE IN DIRECT SUN ENVIRONMENTS If the wheelchair is subject to direct sunlight for a long period of time, then parts of the wheelchair (e.g. frame, leg rests, brakes and side guards) may become hot (>41°C). Please use caution. TIRE PRESSURE DO NOT use your wheelchair unless it has the proper tire pressure (p.s.i.).

  • Page 8: Stability And Balance

    Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. ALL WARNINGS and CAUTIONS given in this manual MUST be followed. Techniques in this manual are a starting point for the new wheelchair user and assistant with “safety”...

  • Page 9: Coping With Everyday Obstacles

    COPING WITH EVERYDAY OBSTACLES Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance. A NOTE TO WHEELCHAIR ASSISTANTS When assistance to the wheelchair user is required, remember to use good body mechanics.

  • Page 10: Maintenance

    tilting the wheelchair and remind him/her to lean back. Be sure the occupant’s feet and hands are clear of all wheels. MAINTENANCE In addition to the maintenance and checks, general cleaning of both frame and upholstery can be undertaken. To maintain its appearance the upholstery should be cleaned regularly.

  • Page 11: Limited Warranty

    Additional Notes For Australia Only: i. For goods distributed by Sunrise Medical Pty Ltd in Australia, our goods come with a guarantee by Sunrise Medical (on behalf of the manufacturer) that cannot be excluded under Australian Consumer Law.
  • Page 12 CHECK LIST A periodic check of the following procedures will help sustaining the life and efficiency of your wheelchair. Weekly: • Check the pressure of the wheels following the instructions indicated on them. • Check that the cross brace’s central screw is tight and in good condition. Clean the upholstery with soapy water or adequate products.

  • Page 13: Wheelchair Components

    WHEELCHAIR COMPONENTS 1. Push handles 8. Anti-tipper with roller 2. Backrest outer upholstery 9. Fork 3. Armrest 10. Side panel 4. Rear wheel 11. Seat cushion 5. Handrim 12. Footrest 6. Wheel locks 13. Cross brace 7. Quick-release axle 14. Footplate 15.

  • Page 14: Unfolding

    UNFOLDING QUICK RELEASE WHEELS INSTALLATION The rear wheels of this model are equipped with quick-release axles. The wheels can be installed or removed without using any tools. To install a wheel, simply insert the quick-release axle into the wheel, then press the quick-release button on the axle to the end to connect the wheel with the receiver.

  • Page 15: Detachable Footrest Installation

    DETACHABLE FOOTREST INSTALLATION 1.Align the two holes of 2.Rotate inward the the pins and hang the footrest to hear “click” to footrest onto the frame. complete the installation. CALF STRAP INSTALLATION 1.Use the Velcro strap to 2.Tie up both sides of tie up the Calf Strap after Calf Strap to complete all the Footrest in installed.

  • Page 16: Folding

    FOLDING FOOTREST The wheelchair is equipped with detachable footrest. Hold the footrest, flip the lever, swing footrest away , lift the footrest upwards to detach it. 1.Flip the lever. 2.Swing footrest away. 3.Lift the footrest upwards to detach it. FOOTPLATE The wheelchair is equipped with two pieces of footplate.

  • Page 17: Folding Up

    FOLDING FOLDING UP 1.First flip up the footplate and remove the seat cushion from the wheelchair. 3.Then flip down the Push Handles. 2.Hold the seat sling in the middle and pull it upwards to fold the wheelchair. 4.To remove a wheel, simply press the quick-release button on the axle to the end and pull the wheel off the receiver.

  • Page 18: Adjustment

    ADJUSTMENT ARMREST The wheelchair is equipped with detachable and height adjustable armrest.Pull down the lock on the armrest and detach the armrest. To assemble, insert the armrest support to the housing, pull up the lock to fix the armrest. ARMREST HEIGHT ADJUSTMENT Adjustment range:Total 120mm(6 positions in 20mm increment).

  • Page 19: Footplate Height Adjustment

    ADJUSTMENT FOOTPLATE HEIGHT ADJUSTMENT Adjustment range: Total 135mm (9 positions in 15mm increment). 1. Loosen the screws on both sides. 2. Adjust the Footplate to the desired height. 3. Fasten screws tightly. Fig. 1 PUSH HANDLES HEIGHT ADJUSTMENT Adjustment range: Total 140mm (7 positions in 20mm increment). 2.

  • Page 20: Seat Height Adjustment

    ADJUSTMENT SEAT HEIGHT ADJUSTMENT Adjustment range : 3 positions in 20mm increment. (16.5" / 17.3" / 18.1") 1. Loosen the 4 screws on both sides. 2. Adjust the base to the desired height. 3. Fasten screws tightly. 4. Same on another side of base. FORK HEIGHT ADJUSTMENT Adjustment range : 3 positions in 20mm increment.

  • Page 21: Anti-Tipper Height Adjustment

    ADJUSTMENT ANTI-TIPPER HEIGHT ADJUSTMENT Adjustment range : 3 positions in 20mm increment 1. Loosen the screws on both sides. 2. Adjust the Anti-Tipper height, MUST to be on the same height position level with Seat Height. 3. Fasten screws tightly. 4.

  • Page 22: Seat And Backrest Tightness

    ADJUSTMENT SEAT AND BACKREST TIGHTNESS Use the Velcro straps to tighten or loosen the seat and backrest. REAR WHEEL’S CENTER OF GRAVITY ADJUSTMENT 1. Loosen the receiver on axle. 2. Move the receiver to another position of the base. 3. Fasten screws tightly. 4.

  • Page 23: Seat Width Adjustment

    ADJUSTMENT SEAT WIDTH ADJUSTMENT Adjustment range : 4 positions : 12", 13", 14", 15" 1. Loosen the screws on fixing pieces. (#1 / #2) 2. Loosen the screws on connecting rods. (#3~#6) 3. Adjust to the desired width. 4. Fasten screws tightly for both connecting rods and fixing pieces.

  • Page 24: Specifications

    SPECIFICATIONS Brand Name. Zippie Easy Go Model Name Number of wheels Front Castor size 6"x1-1/4 (grey) PU tyre Rear Wheel size 22"x1-3/8 (grey) PU tyre Seat width T: 305mm (12") / K: 330mm (13") C: 355mm (14") / S: 380mm (15") Seat depth 360mm (14") Seat height...

  • Page 25: Symbols On Labels

    SYMBOLS ON LABELS Serial number of the product Operating instructions in user’s manual Name and address of manufacturer & Production Date (year/month) European authorized representative...
  • Page 26 Sunrise Medical Australia Pty Ltd. 11 Daniel Street Wetherill Park, NSW 2164 Phone: (02) 9678 6600 Email: enquiries@sunrisemedical.com.au www.SunriseMedical.com.au UM202107-A...
