4. CONFIGURATION

The 4585 needs to be added into the configuration, manually or via auto addressing function.
For more information, see the Planning Instructions for the system.

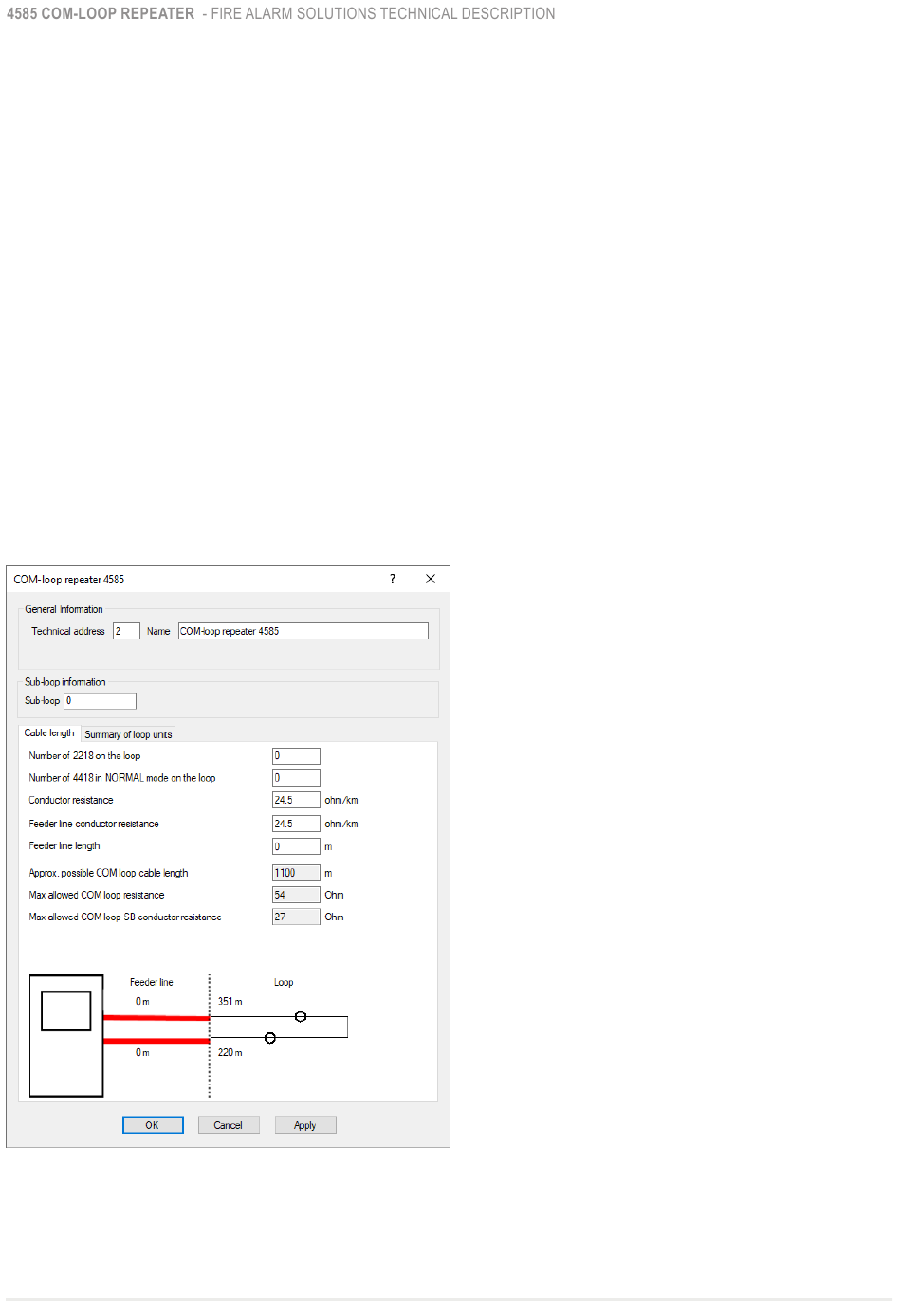

In the COM-loop repeater 4585 unit properties window, set the following:
• Technical address: Automatically set if auto addressing is used.
• SUB-loop information: 0-3, used to separate the SUB-loops from each other
4.1.

CABLE LENGTH

• Number of 2218 on the loop.
• Conductor resistance.
• Feeder line conductor resistance.
• Feeder line length.
• Approx. possible COM loop cable length (automatically calculated).
• Max allowed COM loop resistance
• Max allowed SB conductor resistance
• Distance: Drag and move the last unit in A - and B direction to get correct value.
Press Apply to calculate new value input.
