3.6.

FUNCTIONAL OVERVIEW

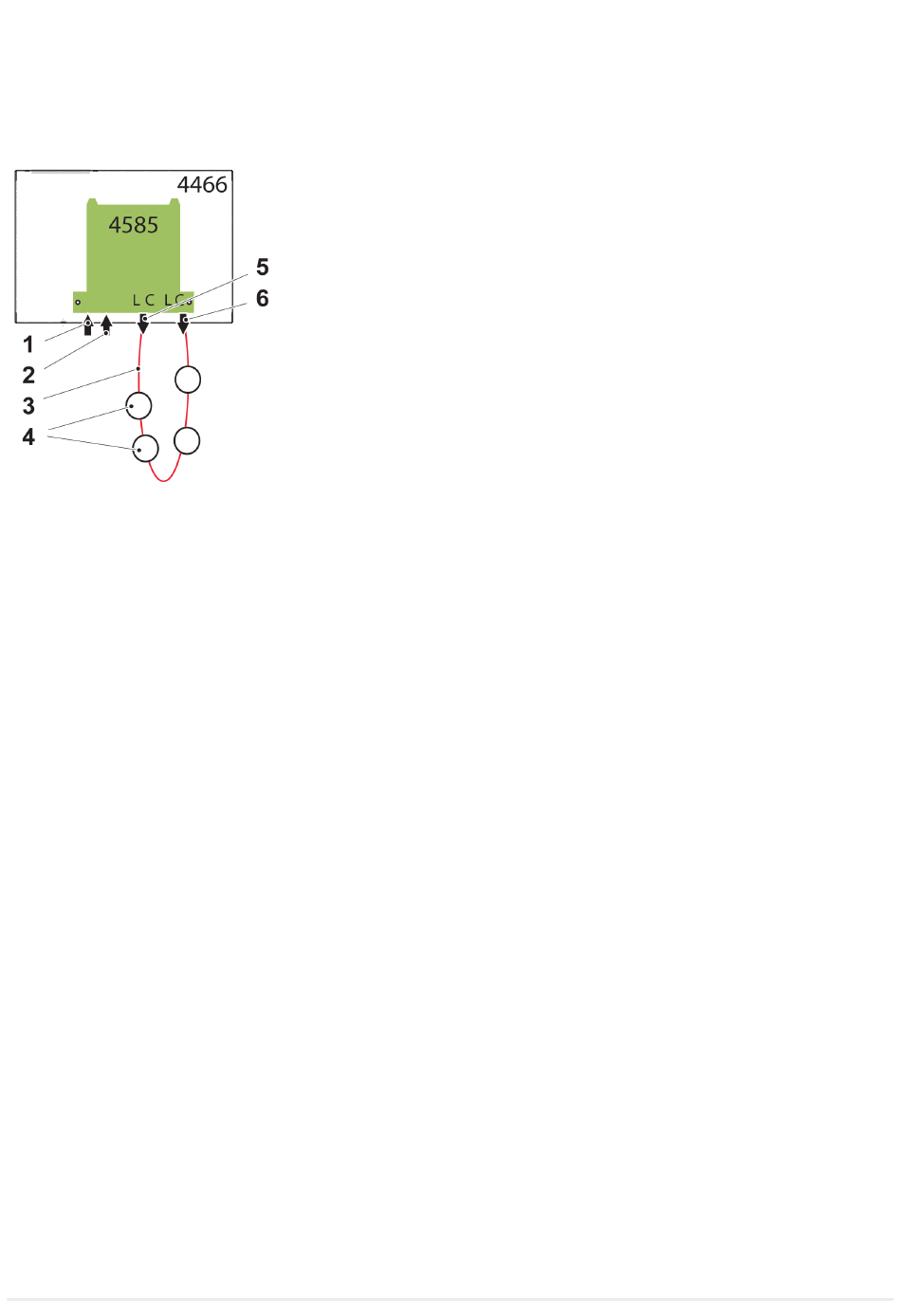

This overview is an example of how the COM-loop repeater 4585 can be used.
1. COM-loop (internally via 4466)
2. Power (internally via 4466)
3. SUB-loop
4. Addressable COM-loop units
5. SUB-loop A-direction
6. SUB-loop B-direction
3.7.

FAULTS

The 4585 is generating fault signal in the c.i.e. when the following occurs:
• Low Voltage
• Internal Fault
• Short circuit
• Open circuit
7
