8. INSTALLATION AND WIRING
Screen wire termination is not provided.
Wire size (Min)
Wire size (Max)
8.1.
4585 CONNECTIONS TO ADDRESSABLE DEVICES
See Technical Description for each unit.
8.2.

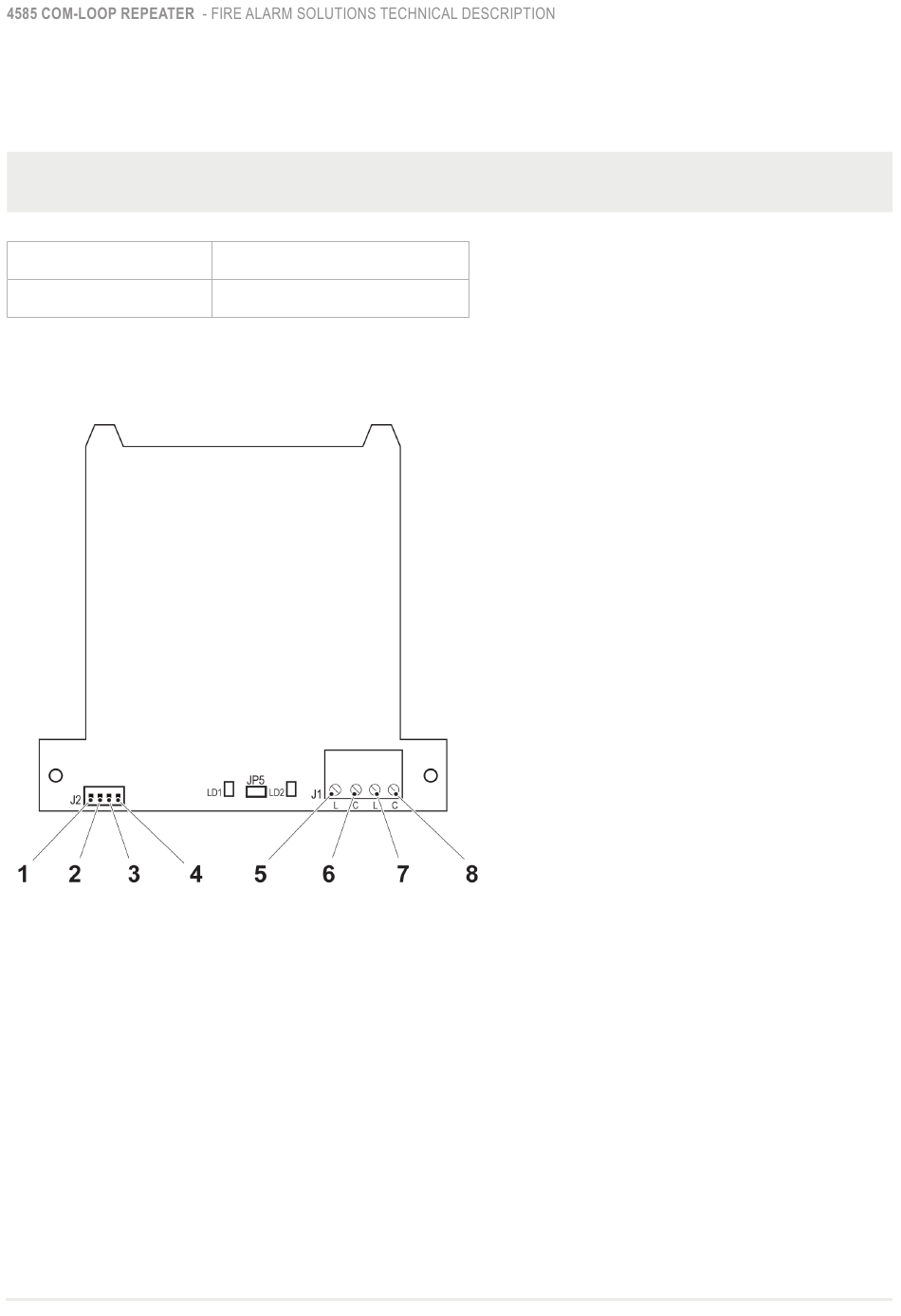

CONNECTIONS TO 4466, MOLEX CONNECTOR J2
1. +24V DC
2. 0V
3. SA (COM-loop)
4. SB (COM-loop
8.3.
CONNECTIONS FOR SUB-LOOP, TERMINAL BLOCK J1
5. SAA
6. SBA
7. SAB
8. SBB
Ø 0.65 mm (0.33 mm²)
Ø 1.6 mm (2 mm²)
14
