4585 COM-LOOP REPEATER - FIRE ALARM SOLUTIONS TECHNICAL DESCRIPTION
7. MOUNTING
One or two expansion boards 4585 can be mounted on the charger board, inside the 4466.

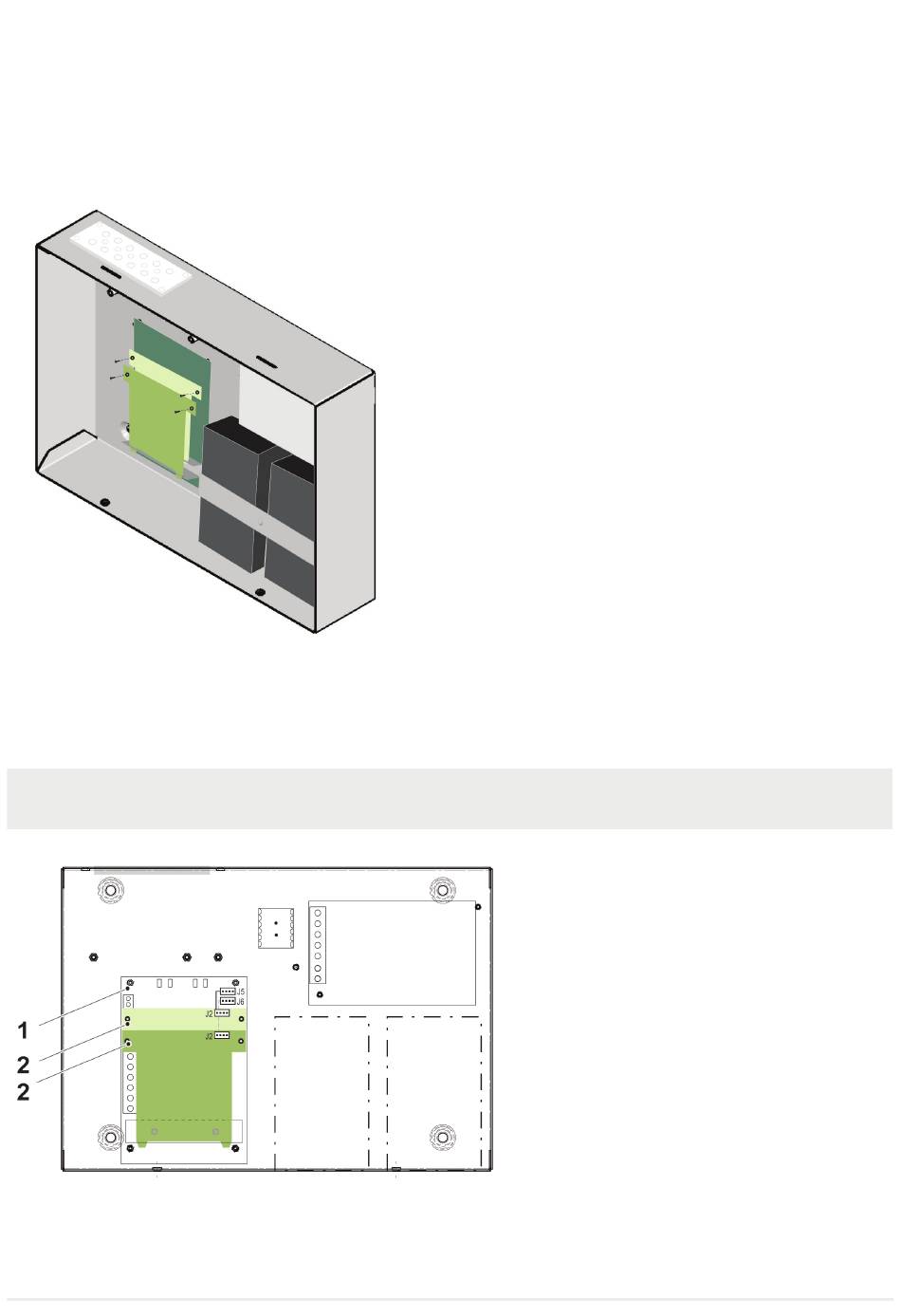

a) Mount the expansion boards according to the picture below. Screws are supplied with the expansion boards.
b) Connect each Molex connector to contact header J2 on the expansion board, and to contact header J5 or J6 on the charger
board.
•
J5 is powered from OUT0
•
J6 is powered from OUT1
If an expansion board is mounted without any units on the SUB-loop, the SUB-loop must be closed.
1. Charger board 4467
2. Expansion board
13
