5.3.

CHANGE THE COM LOOP ADDRESS

If the COM loop address for 4466 must be changed, the address for 4464 and 4585 also must be changed (if mounted).
a) Disconnect the 4466 from the COM loop.
b) Reset the address for PCB 4464/4585 according to the instruction
c) Set the new address manually for 4466.
d) Connect the 4466 to the COM loop.
e) Download SSD to the CIE During download SSD, the 4464 and 4585 will get the correct addresses.
5.4.

RESET ADDRESS

It is possible to reset the address of the 4585 board by shunting the jumper JP5.
Do the following:
a) Disconnect the Molex connector.
b) Shunt the jumper JP5.
c) Re-connect the Molex connector.
d) Check that LD1 is lit.
e) Remove the jumper.
f) Check that LD1 is off.
The technical address of the board is reset to 254 (factory setting).

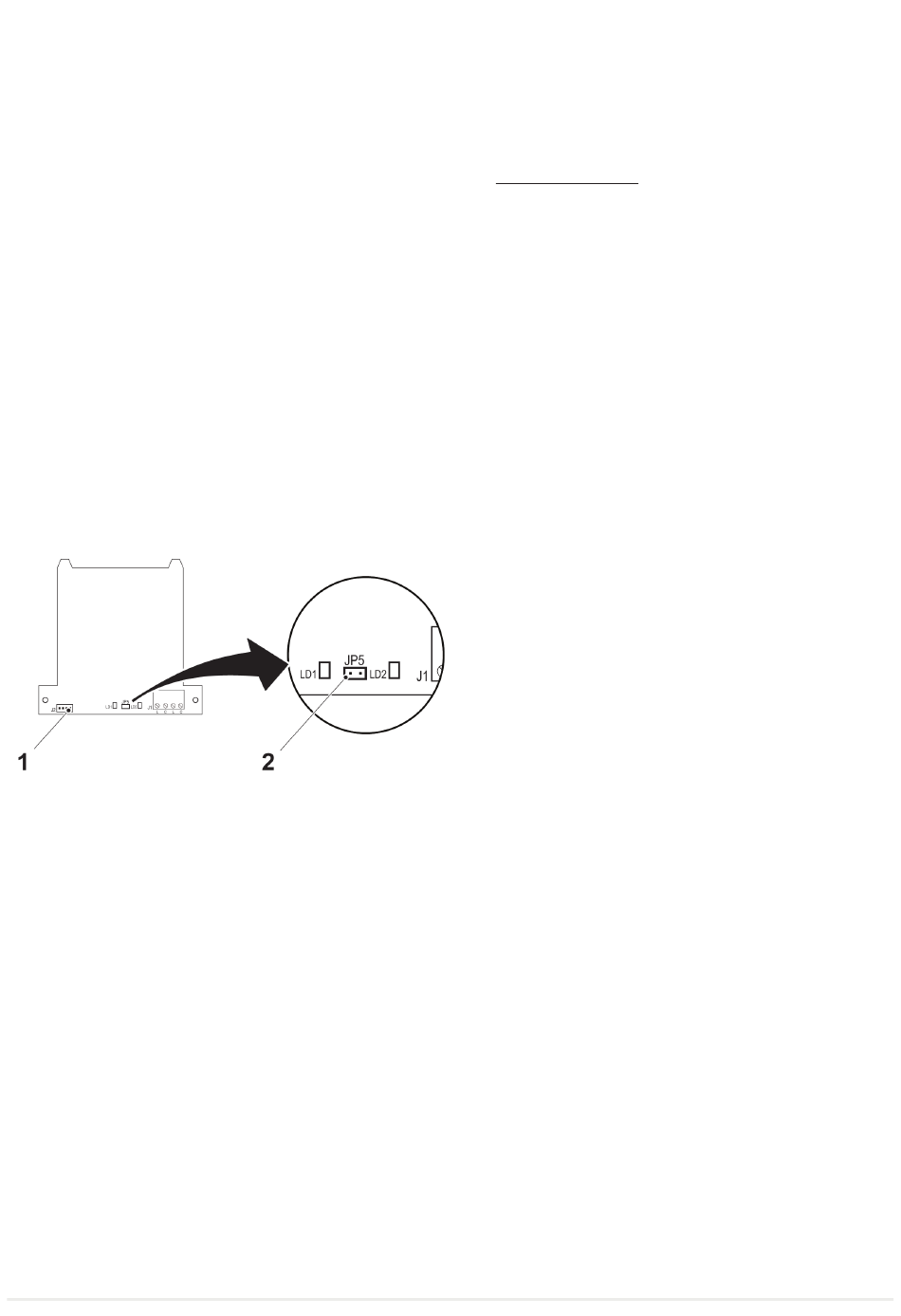

1. Molex conector
2. Jumper JP5
5.4. RESET ADDRESS
11
on page 11.
