RFID Printers: AEP Print Guide (4NX Series Printers)
This guide provides software instructions for printing GS1 location labels, GS1 asset labels, and non-GS1
asset labels, as well as troubleshooting tips and information for common faults.
1.

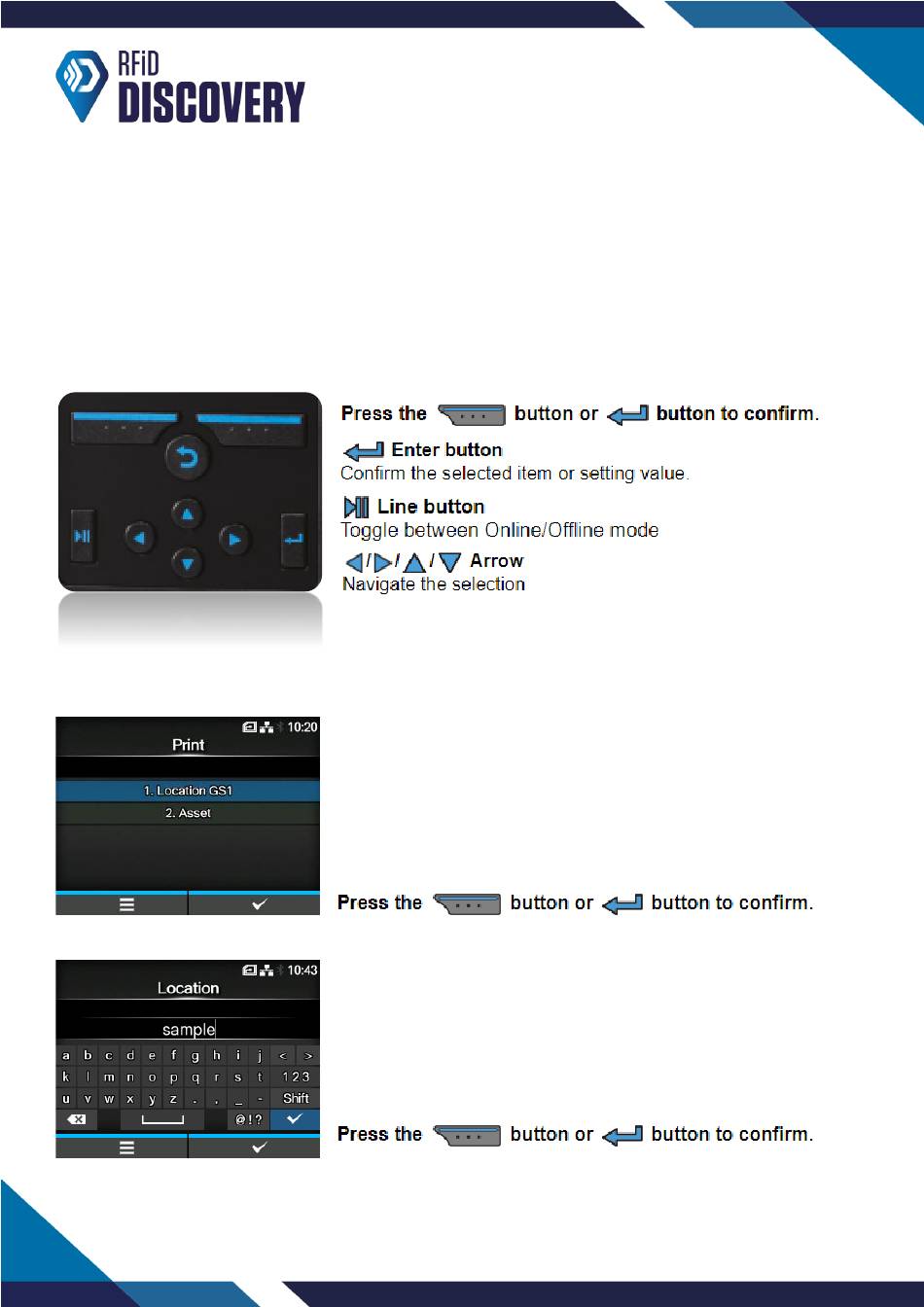

Keypad Controls
All 4NX Series printers have the following keypad, with the main inputs to note including:
2.
Selecting Location (GS1) Labels for Print
- Allow the printer to boot up to the default selection screen.
- Highlight RFID tag type: '1. Location GS1'
- Select this option by pressing the top-right physical button on the
printer keypad (under the arrow on the screen), or if you are using a
USB connected keyboard, press return.
- Type the physical location name using either the on-screen
keyboard, or a USB connected one.
- Confirm your input by pressing the top-right physical button on the
printer keypad (under the arrow on the screen), or if you are using a
USB connected keyboard, press return.
