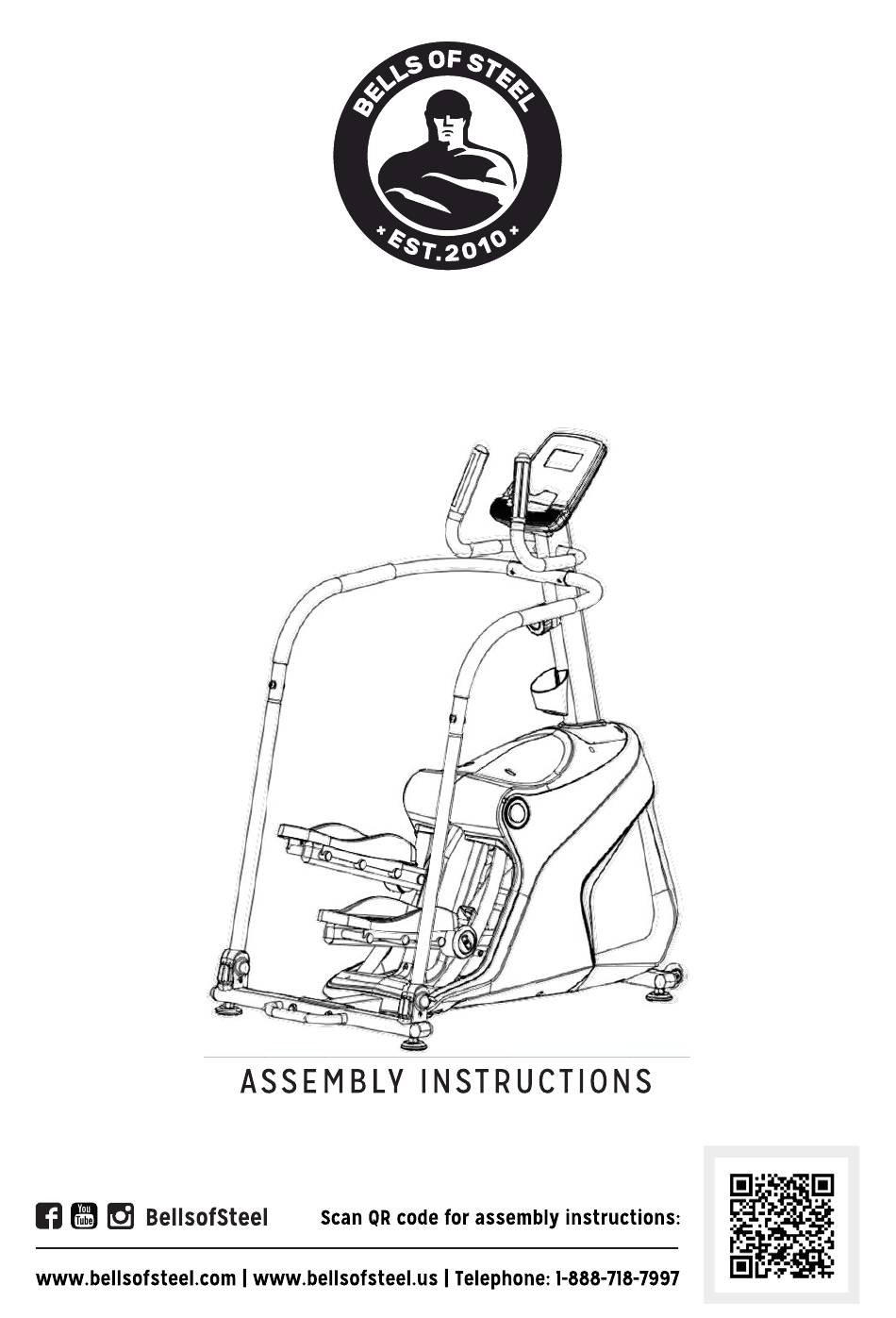

  • Page 1 BLITZ STEPPER MACHINE SKU:STEPPER...

  • Page 4: Assembly Parts

    ASSEMBLY PARTS...

  • Page 5: Parts List

    PARTS LIST Parts Parts Description Description Mainframe connection Inner hex bolt M8*40 Handlebar post Roller wheel 3L/R L/R handlebar 1 pr Flat washerD8*D17*1.5 Handlebar supporting tube Nylon nut M8 Railway Outter Hex bolt M10*58 6L/R L/R pedal tube 1 pr Nylon nut M10 Rear bottom tube connection Inner hex screw M10*20...

  • Page 6: Assembly Instruction

    ASSEMBLY INSTRUCTION Step 1: 1. Lock the Rear Bottom Tube connection (7) firmly onto the Main frame connection (1) with the Outer hex bolt (12) and arc Washers (13) as shown. 2. Lock the pedal 24 to L/R pedal tube 6L/R with Cross pan screw 23 .
  • Page 7 Step 2: 1. Firstly, connected sensor extension wire(37) with sensor wire(35) well. Then, let tension cable(34) through handlebar post(2) and pull out it from the hole of tension control. Finally, connect tension cable(34) and tension control(36) like P P ICTURE A show. 2.
  • Page 8 Step 3: 1. Lock L/R handlebar (3L/R) to Handlebar supporting tube(4) with inner hex screw (31) and arc washer (13).Then lock L/R handlebar (3L/R) to handlebar post (2) with inner hex screw (31),inner hex screw(33 ) ,arc washer(13) and arc washer 2(8). Don't tight screws now. 2.
  • Page 9 Step 4: 1 1 . Connect the sensor extension Wire (37) and handlebar Pulse Extension Wires (42) to the Computer (45). Then, lock the Computer(45) carefully onto the bracket of handlebar post(2), secure in place with Cross Pan Screws (46). 2.
  • Page 10 MONITOR WITH BODYFAT&PULSE RECOVERY INSTRUCTION MANUAL NO.00250 BUTTONS 1. MODE Press this button to changeover display or choose the window needs to be set. 2. RECOVERY / UP In setting status, press this button to increase setting value in relevant flashing window for TIME, COUNT(BMR), CAL and TEMP( ii.

  • Page 11: Operation

    5.PULSE i.Measure the your heart rate per minute. The range is 40 ~ 240bpm. ii. It will display “P” to pause the pulse test if there is no pulse signal over 60 seconds. You can press UP or DOWN to enter the pulse test again. 6.ALARM The monitor will “Beep”...
  • Page 12 from the below sequence: exerciser No.( 1 ~ 8 ), weight( KG ), height( CM ), age ( YEAR ), gender. But, if the meter showing M, the weight will show “lb”,while height will show “in”.Press MODE to proceed to next parameter setting. Press RECOVERY/UP to increase the setting value while press DOWN to decrease.
