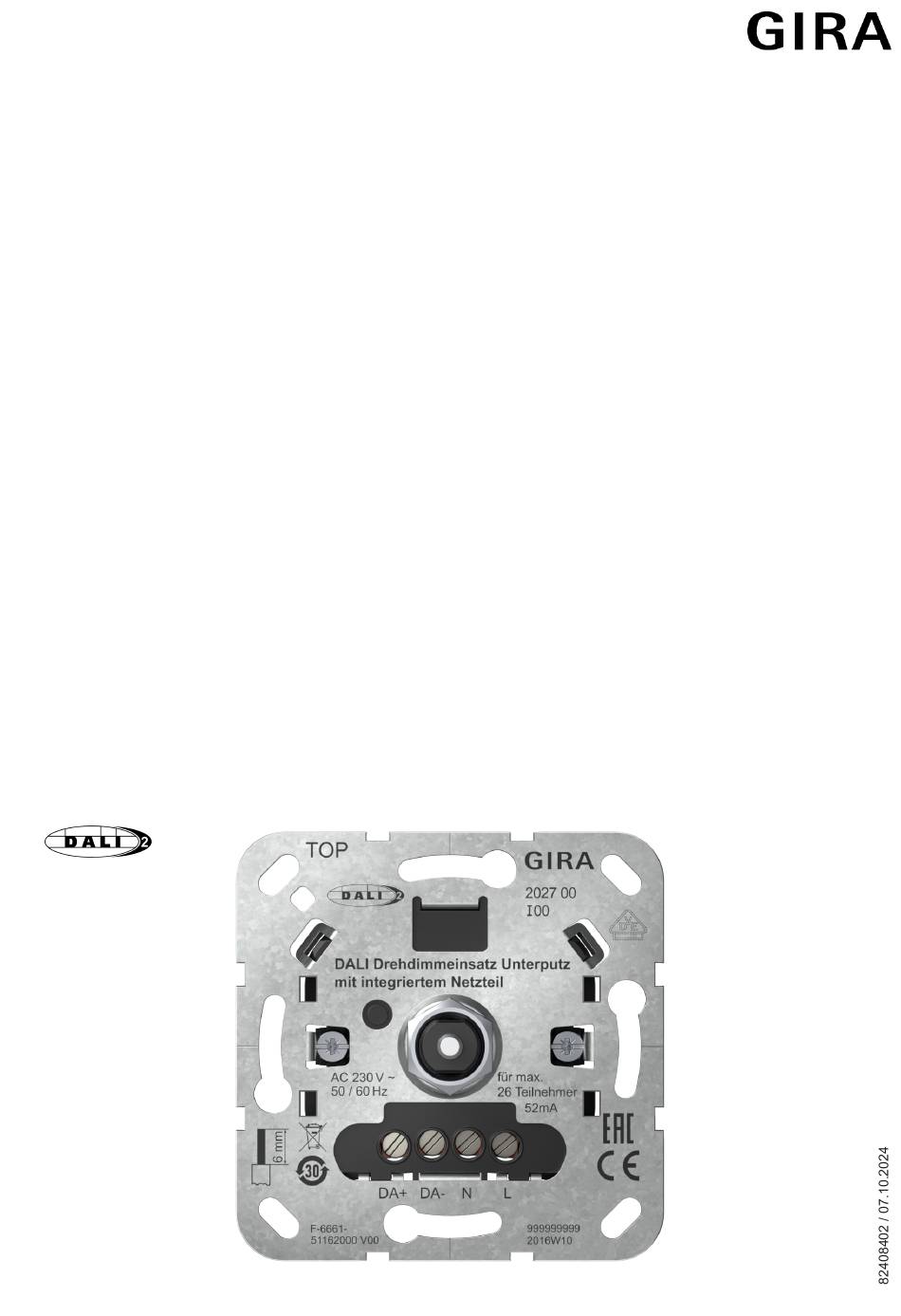

- Page 1 Operating instructions DALI flush-mounted rotary dimming insert with integrated power supply unit Order no. 2027 00 DALI flush-mounted rotary dimming insert Order no. 2026 00 Product image non-binding...
-
Page 2: Table Of Contents
DALI flush-mounted rotary dimming insert Table of contents Safety instructions ...................... 3 Device components ...................... 3 Intended use ........................ 3 Product characteristics ..................... 4 Functional description....................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 7 Mounting and electrical connection................ 7 Commissioning without programming .............. -
Page 3: Safety Instructions
DALI flush-mounted rotary dimming insert Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Product Characteristics
DALI flush-mounted rotary dimming insert Product characteristics Product characteristics without programming – Certified DALI-2 control device to IEC62386-101, 103, 301, 302 – DALI flush-mounted rotary dimming insert with integrated power supply unit: DALI-2 application controller with integrated bus power supply for up to 26 DALI subscribers –... -
Page 5: Operation
DALI flush-mounted rotary dimming insert brightness. If there are multiple control points, saved settings are automatically adopted by the other control points. Input device (programming necessary): The device no longer sends control commands to DALI operating devices, but rather only telegrams to a higher-level DALI-2 controller. This control analyses the pressing or turning movements and then forwards control commands to the lighting. - Page 6 DALI flush-mounted rotary dimming insert Adjusting the brightness ￭ Turn the control knob. Turn slowly = Brightness change small Turn quickly = Brightness change great Setting the colour temperature Figure 2 ￭ Turn pressed control knob. Turn left (W) = warmer light (reduce colour temperature) Turn right (C) = colder light (increase colour temperature) Saving the switch-on brightness If the lighting is not always to be switched on with the same brightness, then this can...
-
Page 7: Information For Electrically Skilled Persons
DALI flush-mounted rotary dimming insert Information for electrically skilled persons DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Always disconnect before carrying out work on the device or load. To do so, switch off all corresponding circuit breakers, secure them against being switched on again and check that there is no voltage. -
Page 8: Commissioning Without Programming
DALI flush-mounted rotary dimming insert Figure 4: Connection diagram, operation as input device DALI flush-mounted rotary dimming insert with integrated power supply unit 2027 00 DALI subscriber e.g. DALI-EVG, DALI Device Type 8 for Tunable White DALI flush-mounted rotary dimming insert 2026 00 Central control, e.g. - Page 9 DALI flush-mounted rotary dimming insert Saving a basic brightness The basic brightness should be set to a state that does not directly lead to an in- crease in brightness when turning the DALI rotary dimming insert at minimum bright- ness. ￭...
-
Page 10: Commissioning Via Dali Programming Device Or Central Control
DALI flush-mounted rotary dimming insert Commissioning via DALI programming device or central control For operation of the device exclusively for control of a DALI group or for integration as Input device in a higher-level controller, programming with an external device is required (e.g. -
Page 11: Technical Data
DALI flush-mounted rotary dimming insert Technical data DALI flush-mounted rotary dimming insert with integrated power supply unit Rated voltage AC 230 V ~ Mains frequency 50 / 60 Hz Power consumption Max. 2 W Ambient temperature -5 ... +45 °C Rated voltage DALI DC 16 V (typ.) Permitted bus power... -
Page 12: Programming
DALI flush-mounted rotary dimming insert Programming Programming the operating mode In Operating mode, you can set whether the device sends broadcast telegrams or transmits telegrams exclusively to an operating device group. Both operating modes can work with or without cyclical transmission. When cyclical transmission is active, the telegrams are repeated at 5-second intervals. - Page 13 DALI flush-mounted rotary dimming insert If the central control is another DALI rotary dimming insert which controls an operat- ing device group as Application Controller, instances 0 and 2 must be activated and instances 1 and 3 deactivated (see Table : Programmierbeispiel Page 14)).
- Page 14 DALI flush-mounted rotary dimming insert Event name Telegram (binary) Slowly rotate anti-clockwise 00 0000 0101 Rotate anti-clockwise in increments 00 0000 0110 Instance 3 = Instance type 2 (analogue input => turning with absolute values) This is a DALI-2 standard instance type. Absolute position values are sent with the rotary motion.
-
Page 15: Troubleshooting
Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG... - Page 16 DALI flush-mounted rotary dimming insert 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82408402 07.10.2024 16 / 16...
