Teammate Portable Player Bench with Backrest
General Assembly Instructions

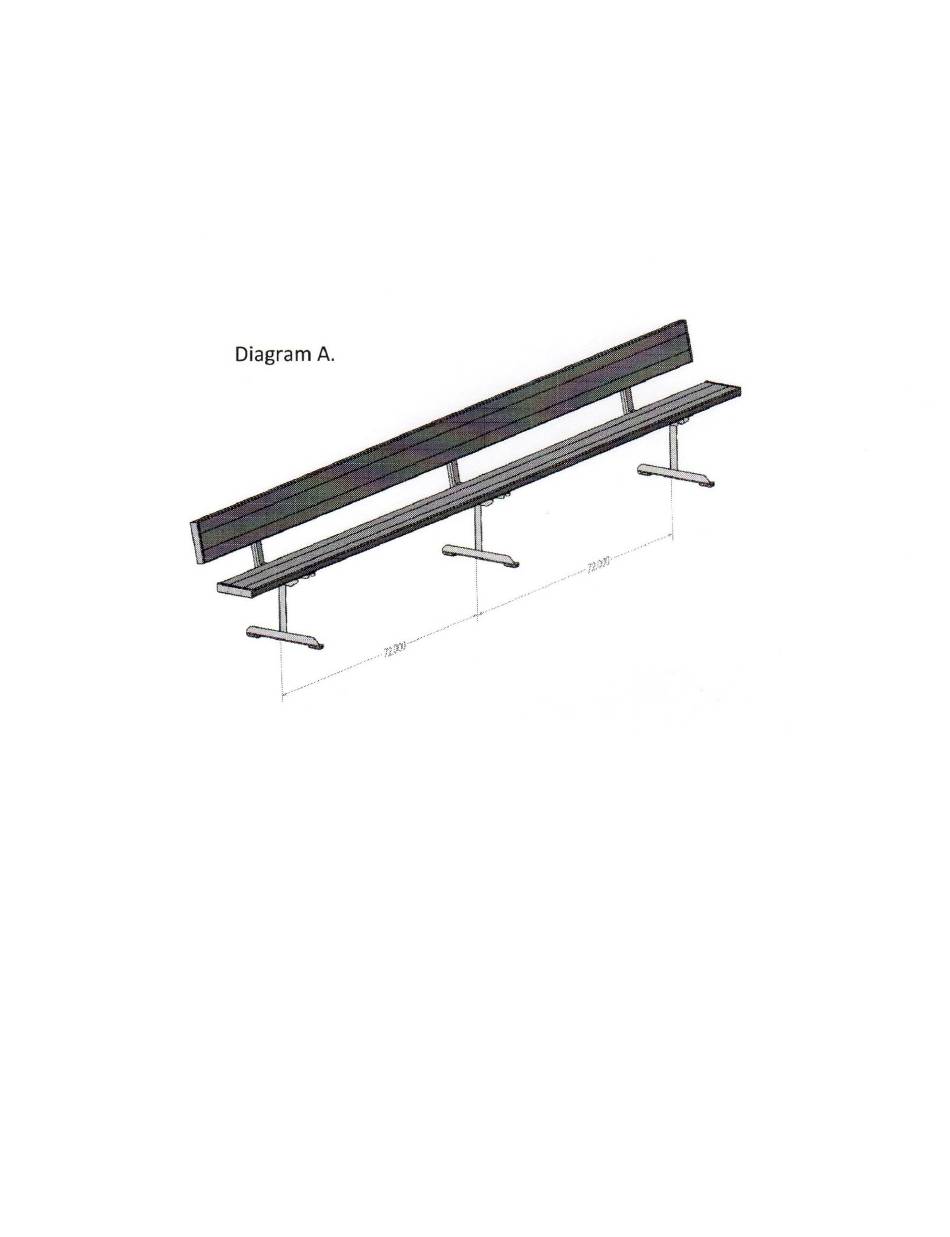

PLEASE NOTE: This assembly diagram is for general reference purposes only. Your bench
configuration may differ from the one shown above.
1. Secure 2 rubber foot pads to the bottom of each bench leg using the #10x1" Philips machine screws,
flat washers, lock washers and hex nuts provided.
2. Lay seat plank face down on a working tabletop surface
3. Using the pressure clamps, 3/8"x2" carriage bolts and hardware provided, loosely secure each leg and
backrest support to the seat plank as shown in diagrams A and B. Backrest supports are the "L"
shaped pieces. Backrest supports can be mounted on either side of the leg. The backrest plank
secures to the portion with "BR" cut into it as shown on the following diagram.
