Dionex UltiMate 3000 Series Operating Instructions Manual
Solvent rack
Hide thumbs
Also See for UltiMate 3000 Series:
- User manual ,
- Operating instructions manual (236 pages) ,
- Operating instructions manual (114 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dionex UltiMate 3000 Series
Summary of Contents for Dionex UltiMate 3000 Series

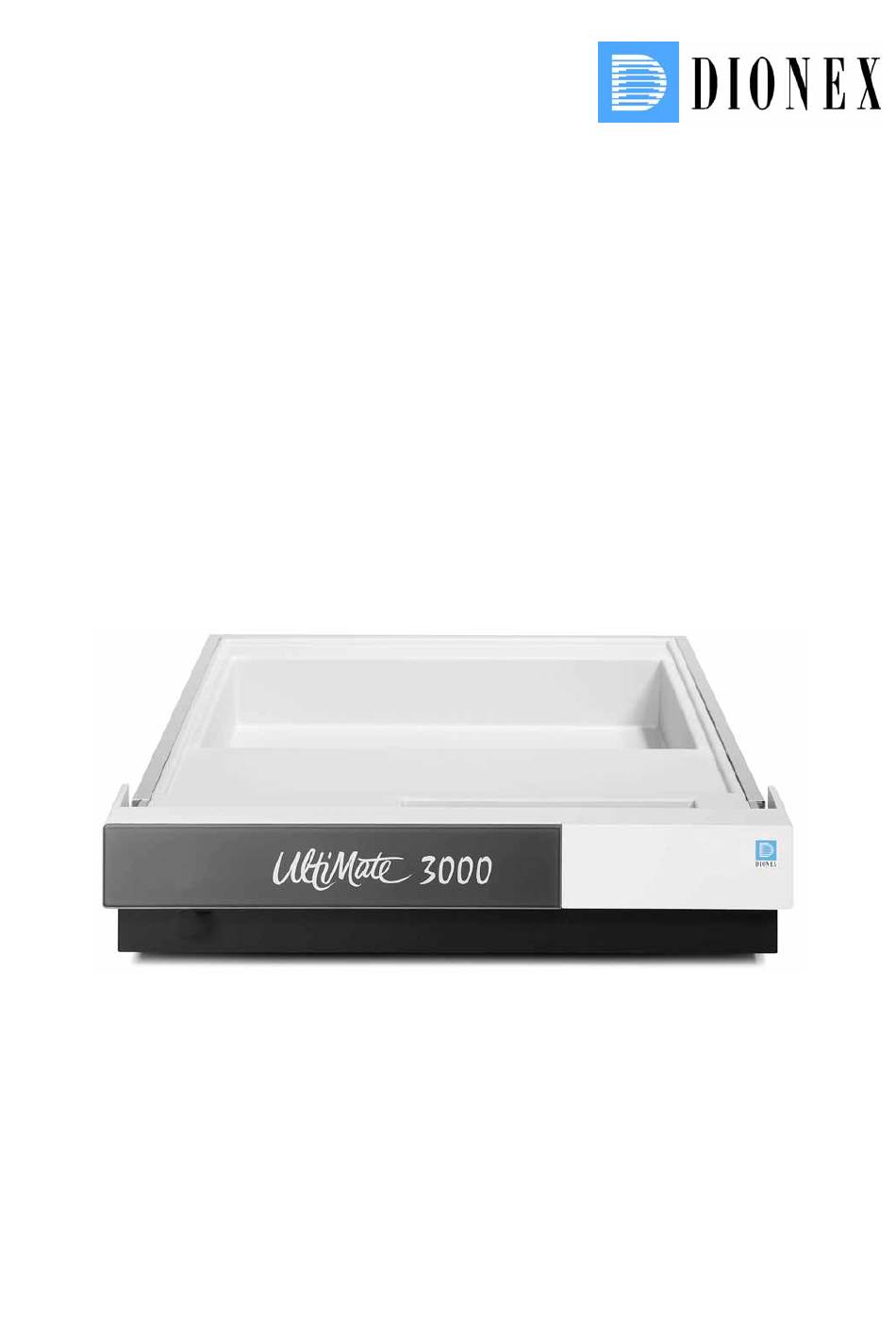

- Page 1 UltiMate 3000 Series SR-3000 Solvent Rack Operating Instructions Revision: 1.3 Date: January 2010 © 2010 Dionex Doc. No. 4820.3555...
- Page 2 UltiMate 3000 Series: SR-3000 Solvent Rack Operating Instructions...
-
Page 3: Declaration Of Conformity
Solvent Rack Types: SR-3000, SRD-3200, SRD-3400, and SRD-3600 Dionex GmbH herewith declares conformity of the above products with the respective requirements of the following regulations: Low-Voltage Equipment Directive 2006/95/EC EMC Directive 2004/108/EC The electrical safety of the products was evaluated based on the following standard: ... - Page 4 UltiMate 3000 Series: SR-3000 Solvent Rack Page II Operating Instructions...
-
Page 5: Table Of Contents
UltiMate 3000 Series: SR-3000 Solvent Rack Table of Contents Introduction........................1 How to Use This Manual ..................1 Safety Information ....................2 1.2.1 Symbols on the Instrument and in the Manual ..........2 1.2.2 General Safety Precautions................3 1.2.3 Consignes Générales de Sécurité............... 4 Federal Communications Commission (FCC) Note .......... - Page 6 UltiMate 3000 Series: SR-3000 Solvent Rack Page ii Operating Instructions...
-
Page 7: Introduction
The layout of this manual is designed to provide quick reference to the sections of interest to the reader. However, in order to obtain a full understanding of the solvent rack, Dionex recommends that you review the manual thoroughly before beginning operation. -
Page 8: Safety Information
Étiquette WEEE (Waste Electrical and Electronic Equipment) — Pour plus d'informations, référez-vous au chapitre WEEE Information dans le classeur "Installation and Qualification Documents for Dionex HPLC Systems". Refer to the operating instructions to prevent risk of harm to the operator and to protect the instrument against damage. -
Page 9: General Safety Precautions
UltiMate 3000 Series: SR-3000 Solvent Rack 1.2.2 General Safety Precautions When working with analytical instrumentation, you should know the potential hazards of using chemical solvents. Tip: For the general safety precautions in French, see Consignes Générales de Sécurité ( page 4). -
Page 10: Consignes Générales De Sécurité
Wear goggles when handling fused silica tubing (during installation, cutting, etc.) Use original Dionex spare parts only. Substituting non-Dionex parts or using non-Dionex accessories may impair the performance of the instrument. Do not use the solvent rack in ways other than those described in this manual. -
Page 11: Federal Communications Commission (Fcc) Note
(pendant l'installation, découpe, etc.). Utilisez des pièces de rechange d'origine Dionex. Effectuer des remplacements par des pièces ne provenant pas de Dionex ou utiliser des accessoires ne provenant pas de Dionex peut affecter les performances de l'instrument. N'utilisez pas l'instrument de manière autre que celles décrites dans ce manuel. - Page 12 UltiMate 3000 Series: SR-3000 Solvent Rack Page 6 Operating Instructions...
-
Page 13: Installation And Maintenance
The solvent rack is a high-quality instrument designed for HPLC analysis as part of a Dionex UltiMate 3000 system. The rack is intended for use as a solvent organizer, for example, together with an LPG-3400 pump, providing a secure location for installation of the solvent reservoirs and, when mounted on top of the UltiMate 3000 system, saves valuable bench space. -
Page 14: Positioning The Solvent Rack In The Ultimate 3000 System
If the solvent rack is part of an UltiMate 3000 system, for example, for analytical HPLC applications, Dionex recommends that you stack the individual modules, for example, as shown in Fig. 1. However, the arrangement of the system modules depends on the application. -
Page 15: Inside View
UltiMate 3000 Series: SR-3000 Solvent Rack 2.4 Inside View The front panel door tilts upward to provide access to the tubing guides in the solvent rack. The open door locks in its topmost position. Tubing guides for the solvent lines Fig. -
Page 16: Solvent Reservoirs
UltiMate 3000 Series: SR-3000 Solvent Rack 2.5 Solvent Reservoirs The solvent rack is shipped with solvent reservoirs and appropriate tubing, including filter holders and filter frits. 2.5.1 General Precautions When connecting the solvent reservoirs, observe the following general precautions: ... -
Page 17: Connecting The Solvent Reservoirs
3. Slide the filter holder with filter frit onto the end of the solvent line. Verify that the end of the solvent line is cut straight and is not deformed. Cut the tubing straight if necessary. Use only the original Dionex solvent lines. 4. Place the complete assembly in the solvent reservoir. -
Page 18: Routine And Preventive Maintenance
If surfaces are exposed for longer periods, these liquids can cause damage. Should you need to return an instrument to Dionex for repair, contact Dionex Service or your local distributor. An RMA (Return Material Authorization) number is required in order to track your instrument. -
Page 19: Technical Information
UltiMate 3000 Series: SR-3000 Solvent Rack 3 Technical Information Solvent reservoir capacity: Eight 1-L reservoirs or four 2.5-L reservoirs or two 5-L reservoirs or five 1-L reservoirs and one 5-L reservoir or three 2.5L and two 1-L reservoirs or three 1-L and two 2.5-L reservoirs or sixteen 0.5L reservoirs... - Page 20 UltiMate 3000 Series: SR-3000 Solvent Rack Page 14 Operating Instructions...
-
Page 21: Accessories, Consumables, And Spare Parts
Therefore, part numbers are subject to alteration. However, updated parts will always be compatible with the parts they replace. The part numbers always refer to the packing unit. For more information contact your Dionex Sales Representative. The following accessories are shipped with the instrument (the list is subject to change without... - Page 22 UltiMate 3000 Series: SR-3000 Solvent Rack Page 16 Operating Instructions...
