Summary of Contents for UNI-T UT196

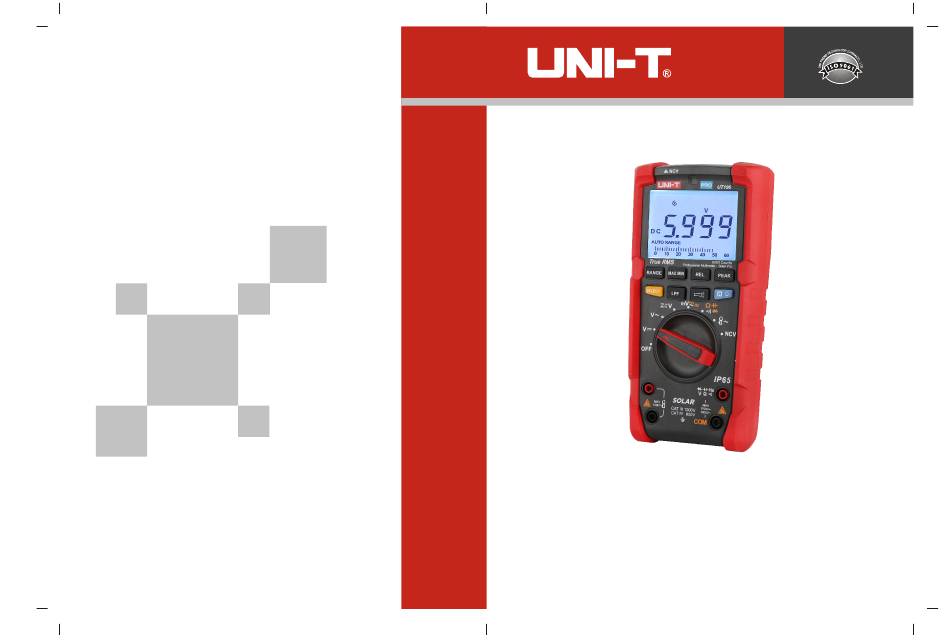

- Page 1 UT 196 Professional Multimeter (Solar Pro) P/N:110401112304X...
- Page 2 Preface Thank you for purchasing this brand new product. In order to use this product safely and correctly, please read this manual thoroughly, especially the safety notes. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference.
-
Page 3: Table Of Contents
UT 196 User Manual Catalogue I. Overview UT196 is a 6000-count ture-RMS photovoltaic multimeter with high reliability and high safety, featuring high voltage measurement (1700V/AC 1500V). Large LCD display, Overview --------------------------------------------------------------------------------- 4 high-resolution analog pointer display, full-range overload protection and unique... -
Page 4: Safety Information
UT 196 User Manual UT 196 User Manual III. Safety information 18. Measure a known voltage to ensure the meter works normally. The meter is designed and produced strictly in accordance with Gb4793, EN61010-1, 19. If the meter is not used in the way designated by the manufacturer, the protection EN61010-2-033, CAT III 1000V, CAT IV 600V, Double provided by the meter may be compromised. -
Page 5: External Structure
UT 196 User Manual UT 196 User Manual VI. LCD display V. External structure 1.NCV sensing position µ 2.Indicator light 3.LCD display screen 4.Function button 5.Function switch 6.Input terminal 7.Strap hook Figure 2 Full symbols display 8.Test lead holder 9.Battery compartment screw Symbols Description 10.Kickstand... -
Page 6: Rotary Switch And Button Function
UT 196 User Manual UT 196 User Manual VII. Rotary switch and button function Button description: Figure 4 Short press: press the button for less than 2 seconds. Long press: press the button for ≥2s. 1) Continuity/resistance/capacitance/diode: short press to cycle through continuity, resistance, capacitance and diode. -
Page 7: Instruction For Measurement Operation
UT 196 User Manual UT 196 User Manual VIII. Instruction for measurement operation 2. DC voltage measurement Please check the 9V battery prior to using the meter, if the meter is in low battery state, Measurement steps: “ ” will be displayed on the display screen, indicating that battery must be replaced in time before use. -
Page 8: Auto Ac/Dc Voltage Measurement
UT 196 User Manual UT 196 User Manual 4. AC/DC mV voltage measurement 3. AUTO AC/DC voltage measurement Measurement steps: Measurement steps: 1) Connect red test lead to terminal, and black test lead to “COM” terminal. 1) Connect the red test lead to terminal, and black test lead to “COM”... -
Page 9: Frequency Measurement
UT 196 User Manual UT 196 User Manual 5. Frequency measurement 6. Continuity measurement Measurement steps: Measurement steps: 1) Connect red test lead to terminal, and black test lead to “COM” terminal. 1) Connect red test lead to terminal, and black test lead to “COM” terminal. 2) Set the rotary switch to 2) Set the rotary switch to . -
Page 10: Resistance Measurement
UT 196 User Manual UT 196 User Manual 7. Resistance measurement 8. Capacitance measurement Measurement steps: 1) Connect red test lead to terminal, and black test lead to “COM” terminal. Measurement steps: 2) Set the rotary switch to . Be sure that the power of the circuit to be measured is 1) Connect red test lead to terminal, and black test lead to “COM”... -
Page 11: Diode Measurement
UT 196 User Manual UT 196 User Manual 9. Diode measurement 10. Flex clamp sensor measurement Measurement steps: Measurement steps: 1) Connect red test lead to terminal, and black test lead to “COM” terminal. 1) Set the rotary switch to 2) Set the rotary switch to 2) Connect the flex clamp to , red probe to red terminal, black probe to black terminal. -
Page 12: Ncv Sensing Measurement
UT 196 User Manual UT 196 User Manual 12. Other functions 11. NCV sensing measurement 1) The meter will switch to “Auto-off” state in 15 minutes of no any operation during measurement. The buzzer will consecutively beep 5 times and make a long beep Measurement steps: sound for a time when the meter automatically powers off, then the meter enters into 1) Turn the rotary switch to NCV position. -
Page 13: Technical Specifications
UT 196 User Manual UT 196 User Manual X. Technical specifications * Input impedance: About 10MΩ. For mV measurement, if the input voltage exceeds the ± range, the protection circuit in the meter will operate to decrease the input impedance. Accuracy: (a% reading + b digit), one year warranty * Display: True RMS... - Page 14 UT 196 User Manual UT 196 User Manual * Overload protection: 1500Vrms or 1700Vdc 4. Resistance measurement * Measurement result = displayed value – capacitance of open-circuit test leads. For capacitance ≤60nF, it is recommended to deduct the open circuit reading in REL Range Accuracy Resolution...
-
Page 15: Maintenance
UT 196 User Manual UT 196 User Manual 8. Frequency measurement Range Accuracy Resolution The contents of this manual are subject to change without prior notice Frequency ～ ～ ±(0.08%+4) 60.00H 1.000MHz 0.01Hz 0.001MHz * Frequency measurement scope: 10Hz 1MHz. Not specified for > ≤99.99kHz: 200mVrms≤...
