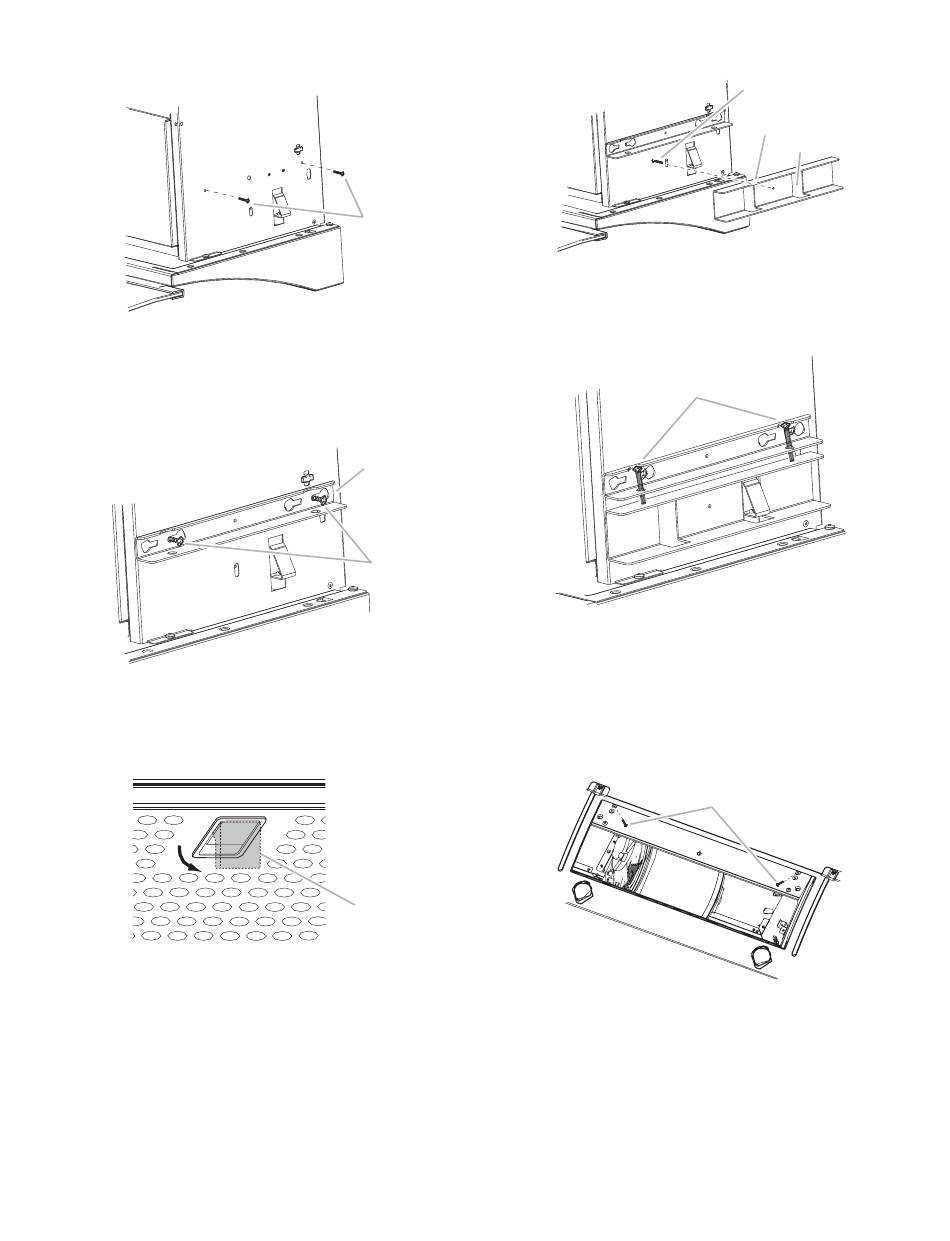

4. Install 2 - 3.5 x 9.5 mm mounting screws. Leave
approximately ¹⁄₄" (0.6 cm) space between the screw heads
and hood to slide the brackets into place.
A. 3.5 x 9.5 mm screws
5. Position an upper bracket so that the large end of the keyhole
slots are over the mounting screws. Then push the bracket
toward the rear of the hood so that the screws are in the neck
of the slots. Tighten the mounting screws, making sure the
mounting screws are in the narrow neck of the slots.
A. Upper bracket
B. Mounting screws
6. Remove the grease filter by pulling the spring release handle
and then pulling down the filter.
A. Spring release handle
10
7. Install a lower bracket with a 3.5 x 9.5 mm screw. Be sure to
position the bracket slot as shown.
A
8. Install 2 - 5 x 18 mm adjusting screws.
A
B
9. Place a level on either side the hood top and check the
levelness of the hood front to back.
10. Adjust the adjusting screws so the hood is level from front to
back. Repeat this procedure on the other side.
11. Drill 2 - ¹⁄₈" (3 mm) pilot holes and install 2 - 4.5 x 16 mm
wood screws to secure the front of the range hood to the
cabinet bottom.
A
A
B
A. 3.5 x 9.5 mm screw
B. Lower bracket
C. Bracket slot
A
A. 5 x 18 mm leveling screws
A
A. 4.5 x 16 mm wood screws
