Instruction Manual
Pressure instrument
S2600
+
Read manual before use!
+
Observe all safety information!
+
Keep manual for future use!
09.2024.0
SYSTRONIK
Elektronik u. Systemtechnik GmbH
Gewerbestrasse 57
D-88636 Illmensee
Tel.: +49-7558-9206-0
Fax: +49-7558-9206-20
E-mail:
info@systronik.de
Internet: www.systronik.com
522901.1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Afriso EURO-INDEX SYSTRONIK S2600
Summary of Contents for Afriso EURO-INDEX SYSTRONIK S2600

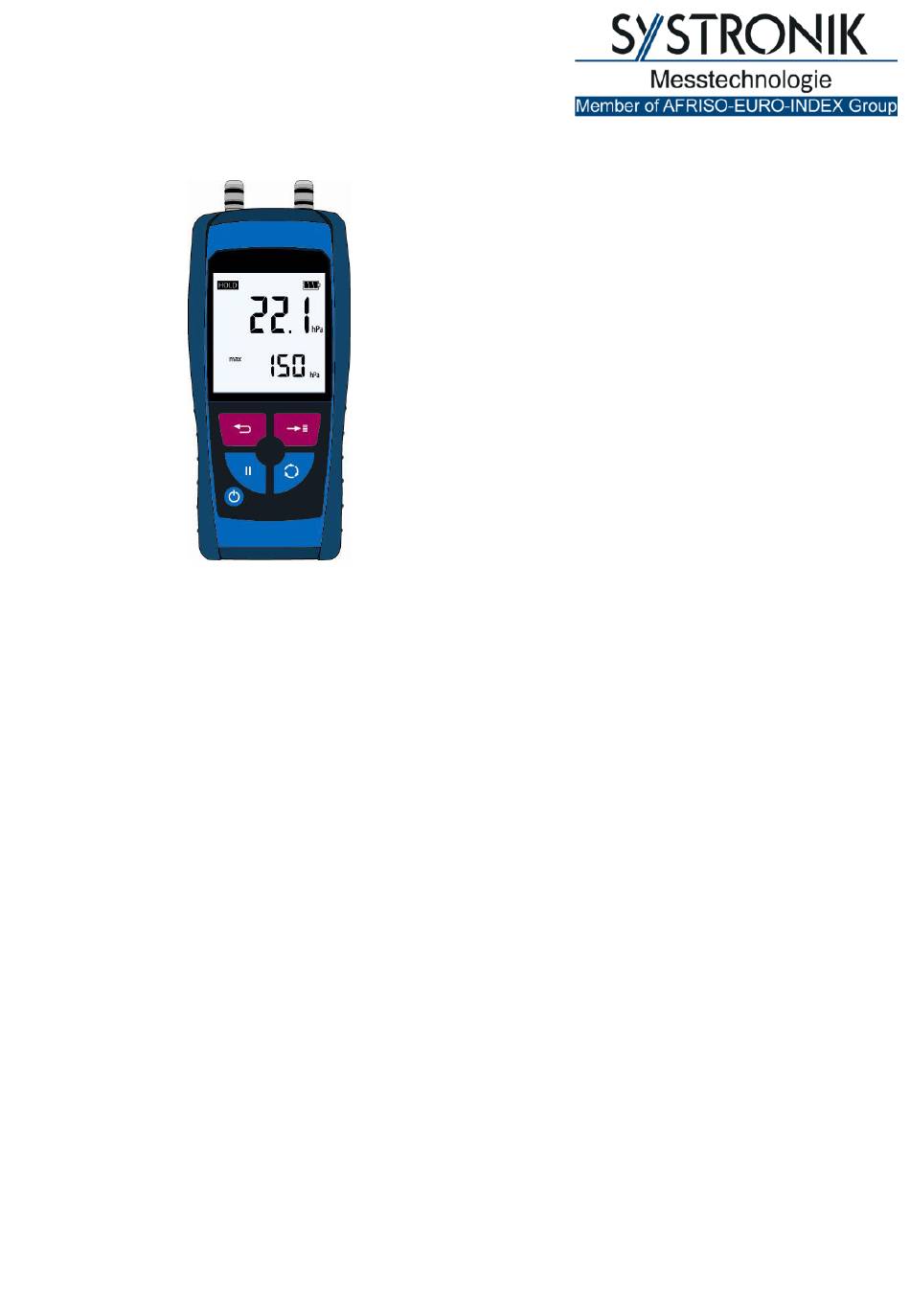

- Page 1 SYSTRONIK Elektronik u. Systemtechnik GmbH Gewerbestrasse 57 D-88636 Illmensee Tel.: +49-7558-9206-0 Fax: +49-7558-9206-20 E-mail: info@systronik.de Internet: www.systronik.com Instruction Manual Pressure instrument S2600 Read manual before use! Observe all safety information! Keep manual for future use! 09.2024.0 522901.1...
-
Page 2: Table Of Contents
Contents About this instruction manual .................. 3 Structure of warning ..................3 Explanation of symbols and typeface ............3 Safety........................4 Intended use....................4 Predictable incorrect application ..............4 Safe handling ....................4 Qualification of personnel ................4 Modifications to the product ................. 4 Use of spare parts and accessories ............. -
Page 3: About This Instruction Manual
About this instruction manual About this instruction manual This instruction manual is part of the product. Read this manual before using the product. Keep this manual during the entire service life of the product and always have it readily available for reference. ... -
Page 4: Safety
Safety Safety Intended use The pressure instrument S2600 is exclusively suitable for measure- ment of low pressure, excess pressure, differential pressure and rel- ative pressure of gaseous media in areas not in danger of explosions (non-hazardous areas). Any use other than the use explicitly stated in this instruction manual is not permitted. -
Page 5: Use Of Spare Parts And Accessories
Product description Use of spare parts and accessories Use of unsuitable spare parts and accessories may cause damage to the product. Use only the manufacturer’s genuine spare parts and accesso- ries (refer to chapter 10, page 13). Liability information The manufacturer shall not be liable for any direct or consequential damage resulting from failure to observe the technical instructions, guidelines and recommendations. -
Page 6: Specifications
Specifications 4 Specifications Table 1: Specifications Parameter Value General Case measurements 66 x 37 x 143 mm incl. protective case (B x H x W) Weight Approx. 250 g Case material Plastics Response delay T 90 < 10 s Pressure connection 2 x 8 mm Operating temperature range Ambient... -
Page 7: Transportation And Storage
Transportation and storage Table 2: Product specifications S2602 S2601 S2610 S2680 Measurement range [mbar] - nominal 1.000 8.000 - maximal 1.500 9.999 Max. excess 0.25 1.35 pressure [bar] Resolution 0.001(<9.999) 0.01 (<19.99) 0.1 (<199.9) [mbar] 0.01 (>10.00) 0.1 (> 20.0) 1 (>200) Accuracy ±... -
Page 8: Operation
Operation Operation 1. Connect battery. 2. Switch on device: Press ON/OFF-key for approx. 1 second. 3. Segment test All available display segments are shown for approx. 2 seconds Measuring range and Firmware-Version This screen displays the measuring (e.g. 123) of the device as well as the firmware version (e.g. -
Page 9: Measuring Mode
Operation Measuring mode Depending on the measurement range several measuring modes (submenus) are available. The operating modes “ZERO” (zero-point adjustment) and “UNIT” (unit selection) are available for all device types. The operating mode “AUTO” (auto-range) is available depend- ing on the measurement range. The Program-Selection-key used to change between the different measuring modes. - Page 10 Operation Min-/Max-Function The min/max key can be used to display the measured min and max values. Pressing this key several times switches between operating mode, min. and max. value display. To delete the min. and max. val- ues, press the menu key during the min. or max. value display. Measuring mode „UNIT“...
-
Page 11: Display Light
Operation Auto: automatic selection of the measurement HI (High): high measurement range (low resolution) Hold-function The reading can be secured with the Hold-key in all measur- ing modes. Press the same key again to release the reading. Display light The display light can be switched on or off with the ON/OFF-key Thereby, pressing the key shortly is sufficient. -
Page 12: Maintenance
Maintenance Maintenance Maintenance intervals Table 3: Maintenance intervals When Activity If required Batteries replacement. Device cleaning. Yearly Calibration Maintenance activities Replacing the battery 1. Take out old battery and connect new battery (refert to chap- ter 6, page 8). 2. -
Page 13: Spare Parts And Accessories
Spare parts and accessories If you do not have the opportunity to dispose of the old device in ac- cordance with environmental regulations, please contact us for pos- sibilities to dispose of it or to return it. 10 Spare parts and accessories Part Part No. - Page 14 Addresses S2600...
- Page 15 Addresses S2600...
