mivoc HA200 BT Operating Manual

Hifi stereo amplifier
Hide thumbs Also See for HA200 BT:
Table of Contents

Advertisement

Quick Links

Download this manual
HA200BT
HIFI STEREO AMPLIFIER
OPERATING MANUAL
DE
EN
ES
FR
IT
中文

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HA200 BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mivoc HA200 BT

Summary of Contents for mivoc HA200 BT

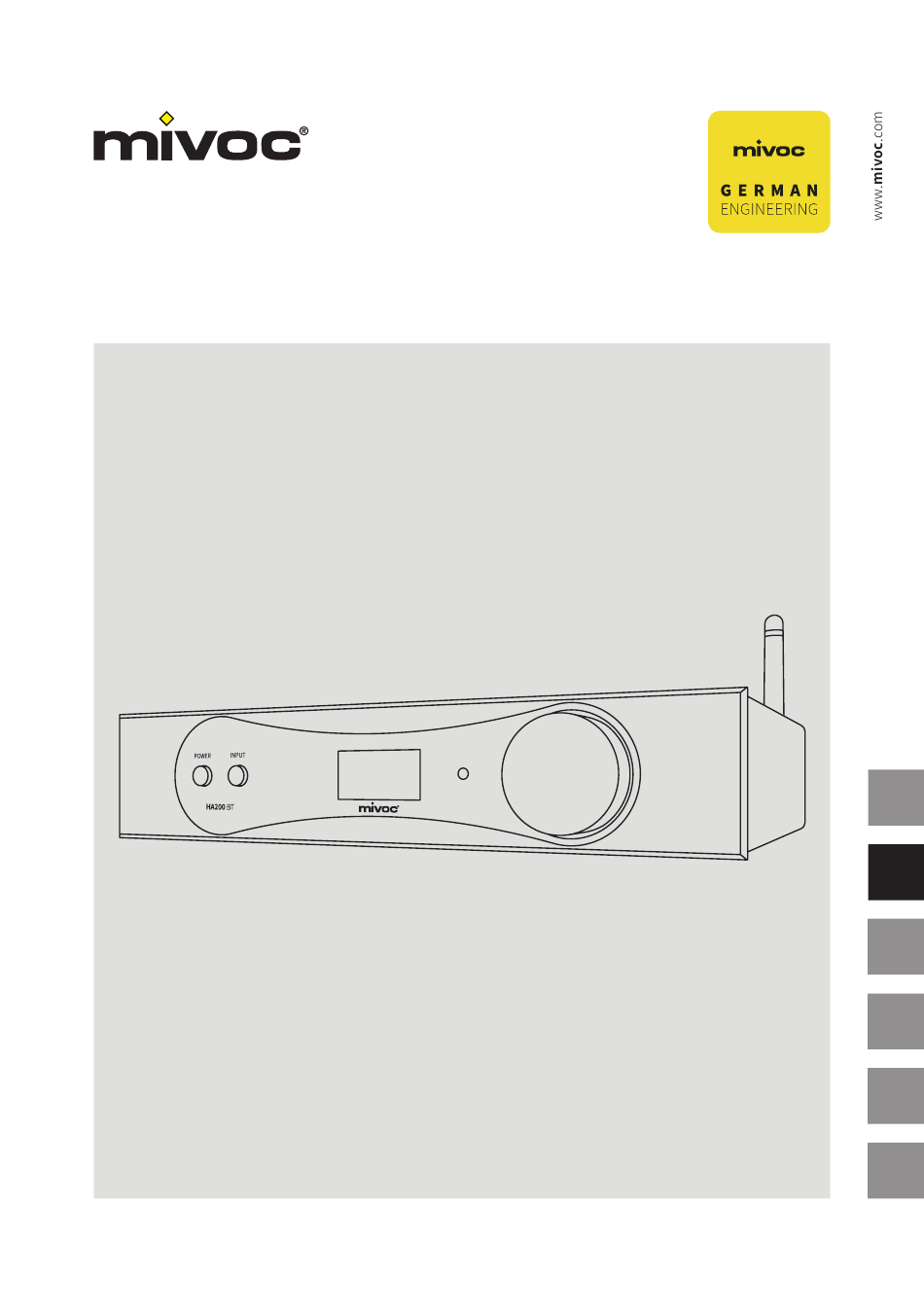

  • Page 1 HA200BT HIFI STEREO AMPLIFIER OPERATING MANUAL 中文...
  • Page 3 BOOM! WHEN SOUND BECOMES AN EXPERIENCE Mivoc lets us bring our passion for good sound to life within our own four walls. The know-how gained from decades of experience and our expertise in developing professional loudspeaker systems come together here to create 100% listening pleasure, which we want to share with you.

  • Page 4: Table Of Contents

    Inputs and outputs Elements of the front Elements of the remote control Presets Display Power supply MIVOC HA200 BT INSTALLATION Bluetooth® antenna Connecting to the mains supply Preparing the speaker cables Connecting the loudspeakers Connecting the subwoofer Connecting a turntable...

  • Page 5: Notes And Information

    100-240 V~ / 50-60 Hz. There are various analogue and digital inputs for connecting source signals. This mivoc amplifier is also equipped with a Bluetooth® receiver for a wireless signal connection. Incoming audio signals are processed and amplified and output to the loudspeaker connections.
  • Page 6 The UKCA mark indicates conformity with the relevant guidelines for safety, health and environmental protection in Great Britain. The SGS mark confirms conformity with the relevant US and Canadian stan- dards to fulfil the highest safety and quality requirements. The FCC mark indicates compliance with Part 15 of the applicable Federal Com- munications Commission guidelines.

  • Page 7: Safety Instructions

    Read these operating instructions carefully and keep them in a safe place so that you can refer to them again if necessary. Some mivoc products have small removable parts. Ensure that children do not come near to mivoc products unsupervised. Small parts pose a risk of swallowing and can cause injury or suffocation.
  • Page 8 Do not remove any housing components from your product. There are no parts inside that you can service yourself. For your own safety and that of third parties, do not modify your mivoc product either in part or as a whole (by adding, modifying or removing components, etc.).
  • Page 9 Ensure that there is no smell of burning and that no smoke is produced. Do not use your mivoc device under such conditions, as doing so could result in damage (risk of injury, damage to health, fire, damage to the speakers or connected devices etc.).
  • Page 10 These precautionary measures include the following points. Only connect your mivoc product to an approved power outlet (100 V~ - 230 V~ / 50-60 Hz). Make sure that the power cable is not crushed or damaged in any other way.
  • Page 11 OBSERVE LOCAL, STATUTORY AND OFFICIAL REGULATIONS AND RULES REGARD- ING THE USE OF ELECTRICALLY POWERED DEVICES. FOLLOW ALL INSTRUCTIONS AND DIRECTIONS IN THESE OPERATING INSTRUC- TIONS. IF YOU HAVE ANY QUESTIONS OR QUERIES, PLEASE CONTACT YOUR MIVOC DEALER OR MIVOC SUPPORT. 中文...

  • Page 12: Package Contents

    (as described below) and check it for visible damage before using it. Notify the delivery company immediately and contact your mivoc dealer or mivoc support for help and assistance. Document any damage carefully. Keep the shipping carton as evi- dence in the event of a complaint, which only you can make.

  • Page 13: Mivoc Ha200 Bt

    The amplifier can be conveniently controlled using the remote control pro- vided. You can also operate it directly using the controls fitted on the unit. The mivoc HA200 BT can be integrated into an existing hi-fi system quickly and easily thanks to the wide range of connections and setting options.

  • Page 14: Inputs And Outputs

    Analogue unbalanced stereo line input (AUX IN) for connecting peripheral devices with analogue stereo output. Analogue unbalanced subwoofer output (SUB OUT) for connecting the HA200 BT HiFi stereo ampli- fier to a subwoofer with integrated amplifier. Analogue speaker outputs (SPEAKER OUT) for connecting the HA200 BT HiFi stereo amplifier to...

  • Page 15: Elements Of The Front

    5 seconds. Status LED: Here you can see directly whether the HA200 BT is switched on or in standby mode. Level control and mute button: You can use this rotary control to adjust the listening volume. If you turn the control to the left, the volume decreases.

  • Page 16: Elements Of The Remote Control

    Settings that you make using the buttons and controls on the front of the amplifier can also be made using the remote control. The remote control also offers additional setting options. POWER: You can use this button to switch the HA200 BT to STANDBY (Off) or wake it up from STANDBY (On). All settings including the current VOLUME remain saved.

  • Page 17: Presets

    HA200 BT HiFi amplifier only partially or not at all. If this happens, replace the batteries. Remove the batteries if you are not using the remote control or the HA200 BT amplifier for a longer period of time to prevent the batteries from leaking and causing damage.

  • Page 18: Display

    SHOWING THE HA200 BT DISPLAY When you press the POWER button on the remote control (p. 16 ) or on the front of the amplifier (p. 15 ) , the in- formation shown opposite appears on the display for a few seconds while the amplifier switches to operating mode.
  • Page 19 If the bass range is adjusted using the tone control buttons B+ or B- on the remote control (p. 16 ), the newly set value is shown on the display for a few seconds. The display then switches back to the standard view. If the treble range is adjusted using the tone control buttons T+ or T- on the remote control (p.

  • Page 20: Power Supply

    Figure 5. HA200 BT - Power input and fuse. POWER: The power switch switches the HA200 BT amplifier completely off [0] or to STANDBY [I] for operation. For safety reasons, the volume level is reset to the default setting of 30 when the power switch is switched off.

  • Page 21: Mivoc Ha200 Bt Installation

    To attach the antenna, proceed as follows: Figure 6. HA200 BT - Mounting the BT antenna. Firstly, ensure that your HA200 BT is standing on a firm and stable surface. Carefully plug the antenna into the antenna socket. Secure the attachment by tightening the screw-on sleeve of the antenna. To do this, hold the antenna firmly with one hand and turn the sleeve clockwise with the other until it is hand-tight.

  • Page 22: Connecting To The Mains Supply

    CONNECTING TO THE MAINS SUPPLY Figure 7. HA200 BT – Connecting the power cable. Use the end of the power cable fitted with the IEC plug. Insert the IEC plug into the power cable socket until the plug is fully inserted into the socket. Ensure that the plug is not tilted and that the cable is not kinked.

  • Page 23: Preparing The Speaker Cables

    PREPARING THE SPEAKER CABLES You will need suitable speaker cable to connect your hi-fi speakers. You will need to prepare these cables before connecting the speakers to your HA200 BT HiFi stereo amplifier. Figure 8a. Stripping the cable. Figure 8b. Twisting the cable ends.

  • Page 24: Connecting The Loudspeakers

    CONNECTING THE LOUDSPEAKERS You can connect your hi-fi speakers to the SPEAKER OUT terminals. The HA200 BT is compatible with all hi-fi speaker systems with a nominal impedance of between 4 Ω and 16 Ω. Figure 9. HA200 BT - Connecting the stereo hi-fi speakers.

  • Page 25: Connecting The Subwoofer

    CONNECTING A SUBWOOFER You can connect an active subwoofer (i.e. with its own integrated amplifier) directly to your HA200 BT HiFi stereo amplifier. The SUB OUT output is used for this purpose. Figure 11. HA200 BT – Connecting a subwoofer.

  • Page 26: Connecting A Turntable

    CONNECTING A TURNTABLE There are three ways in which you can connect a turntable to the HA200 BT HiFi stereo amplifier. If the turn- table does not have a phono preamplifier (preamp) built in, you will need to connect a phono preamp to the turntable.

  • Page 27: Connecting Audio Sources

    Bluetooth®: Select the BT input using the INPUT button on the front of the unit or on the remote con- trol. The selected input is shown on the display. The HA200 BT amplifier appears in the list of Bluetooth® de- vices as ‘BT HiFi Audio’...

  • Page 28: Replacing The Fuse

    If the safety fuse trips, you must replace it. Use ONLY the same type of fuse and observe the rating indicat- ed on your HA200 BT HiFi stereo amplifier. Follow the steps below to replace the fuse: Figure 14. HA200 BT – Replacing the fuse.

  • Page 29: Setting Up

    Now press the POWER button on the front panel. The amplifier switches from STANDBY mode to oper- ating mode. Make sure that the volume of the HA200 BT amplifier is set to a low level (<30). Set the volume control of your subwoofer, if present, to the lowest value (minimum).

  • Page 30: Technical Data

    TECHNICAL DATA HA200 BT TECHNICAL DATA Amplifier type Class D amplifier Number of channels Output power 2 x 100 W Performance efficiency >90% Min. impedance/impedance range 4 Ω / 4-16 Ω Frequency transmission range 20 Hz-20 kHz (depending on the selected preset and the system setup) Bass (±...

  • Page 31: Dimensions

    HA200 BT DIMENSIONS 214.7 173.5 Figure 15. HA200 BT – Dimensions (mm). 中文...

  • Page 32: Manufacturer Information

    Without mivoc will provide a copy of the source code and the full text of the cor- proof of purchase, provision of a warranty service may be refused. In the case responding licence in accordance with the licence conditions on request.
  • Page 33 中文...
  • Page 34 HEAD OFFICE Neuenhofer Strasse 42-44 42657 Solingen, Germany +49 212 382 26-0 info@mivoc.com www.mivoc.com , All rights reserved. The technical data and functional product features are subject to change. Designed in Germany Photocopying, translating or any other form of reproduction of parts or the whole of the user manual is prohibited.
