Summary of Contents for Kogan NBMOCLIMDOA

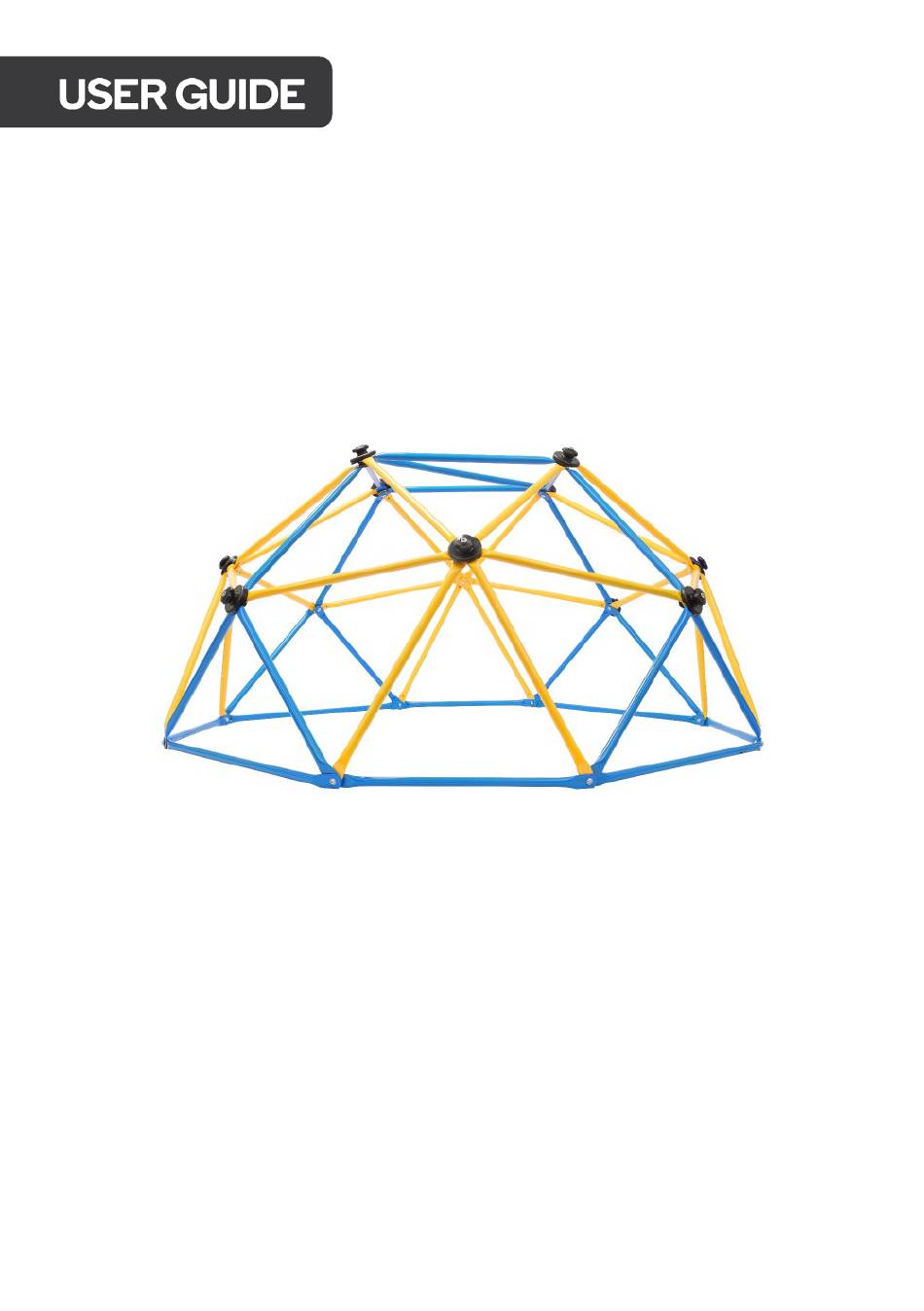

- Page 1 MONKEY CLIMBING DOME NBMOCLIMDOA...
-
Page 3: Safety And Warnings
• WARNING! Not suitable for children under 3 years of age due to small parts which pose a choking hazard. • Attention: If you encounter any issues during assembly, contact help.Kogan.com for support. • This climbing dome is designed for children aged 3-10 years. - Page 4 Assembly Precautions and Instructions • Do not attempt to assemble this product without carefully following the provided instructions. • Inspect the entire package for all parts and additional instruction material before beginning assembly. • Two capable adults are required to complete the assembly. Only adults should set up the product.
- Page 5 Playground Safety and Surfacing Guidelines Surface Materials: • Use containment methods, such as digging out around the perimeter or lining the perimeter with landscape edging, to maintain safety. • Do not install loose fill surfacing over hard surfaces like concrete or asphalt. •...
- Page 6 Note: • An initial fill level of 12 inches (30 cm) will compress to about a 9-inch (23 cm) depth over time. The surfacing may compact, displace, and settle, requiring periodic refilling to maintain the appropriate depth. • Use a minimum of 6 inches (15 cm) of protective surfacing for play equipment less than 4 feet (122 cm) in height.
- Page 7 COMPONENTS B Medium A Short Tube (x20) C Grips (x12) D Long Nut (x12) Tube (x24) E Long Bolt (x12) F Short Bolt (x8) G Lock Nut (x8) H Washer (x28) I Allen Key (x2) J Spanner K Nut (x12) L Glove (x2 pair) M Long Tube (x5)
-
Page 8: Installation
INSTALLATION Step 1: Create a Octagon shape by connecting x4 short poles (A) and x4 long tubes (M) as shown below. Step 2: Take x1 (B) and x1 (A), then connect them with x1 (F), x1 (G), and x2 (H) using tools (I) and (J). - Page 9 Step 3: Repeat the process from Step 2 until you achieve the desired shape. At this point, the bottom circle will be completed. Note: Every node at the bottom circle will have four pole ends. Except the bottom nodes, all the nodes will have five pole ends or six pole-ends.
- Page 10 Step 5: • Next to the section you just assembled, gather x1 short tube (A), x1 medium tube (B), x1 (E), x1 (H), and x1 (K). • Connect these with x1 medium tube (B) and x2 short tube (A)already assembled. •...
- Page 11 Step 6: • Begin assembling the top area using x2 short tubes (A), x1 long tube (M), x1 (E), x1 (H), and x1 (K). • Connect these using x2 medium tubes (B) and x1 short tube (A) that have already been assembled.
- Page 12 Step 7: • At the next node, add x1 short tube (A). This node will now have five pole ends. • Connect these ends with x1 (E), 1 (H), and 1 (K) as shown in the diagram. • Make sure to follow the arrangement and orientation as depicted. Step 8: •...
- Page 13 Step 9: • After assembling all the poles, begin attaching the grips (C). • All nodes, except those at the bottom, will require a grip (C). • For each grip, use x1 (D) tightening them using tool (I). • Ensure that the gap in the grip is positioned between pole 1 and either pole 5 or pole 6, as shown below.
- Page 14 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
