Summary of Contents for Dutypoint QuadraTANK VG

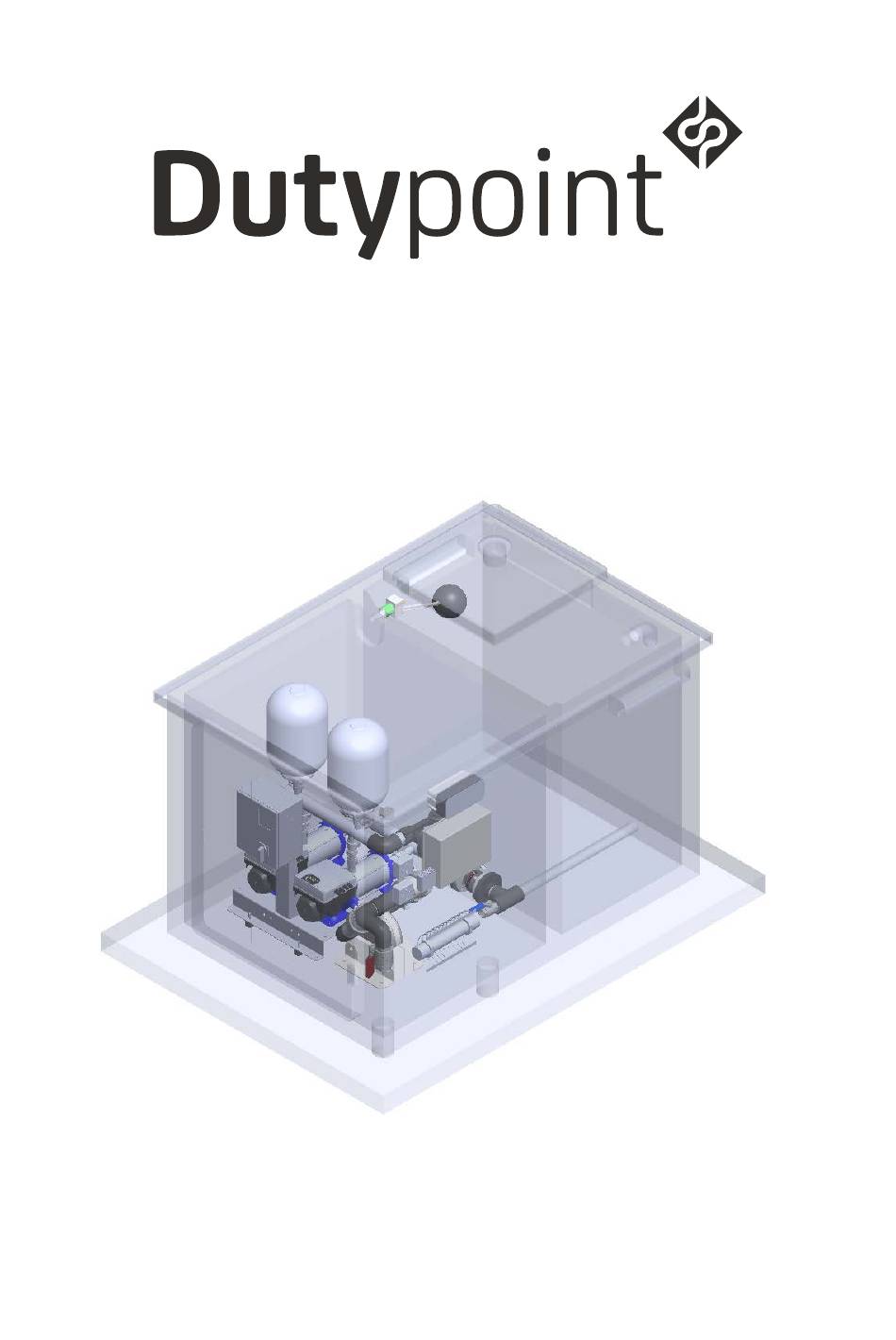

- Page 1 QuadraTANK (VG) with EC Water Conditioner Operation and Maintenance Manual DOC-QTVGECOM2401...
-
Page 2: Table Of Contents
5. Control Panel Overview........................17 6. Pressure Vessel..........................19 7. Maintenance............................21 8. Operating the Pump Set ........................23 9. Troubleshooting ..........................25 10. Control Panel Wiring Diagram ....................27 11. Lowara eSM Pump Drives ......................29 12. Lowara e-HM Pumps........................43 13. Dutypoint EC Specifications.......................51 14. Declaration of Conformity......................53... -
Page 3: Important Safety Information
– Normal safety precautions must be taken and appropriate procedures observed to avoid accidents. Refer to Dutypoint for any technical advice or product information. It is the responsibility of the customer and/or the contractor: – To ensure that anyone working on the equipment is wearing all necessary protective gear/clothing;... -
Page 4: Personal Protective Equipment
1. Important Safety Information – Clean-up of spills – Separate disposal of electrical components from domestic waste Mechanical Device Servicing – Familiarise yourself with the relevant contents of this manual – Installation, maintenance and repair work must only be carried out by trained, skilled and suitably qualified personnel. - Page 5 1. Important Safety Information Precautions During Work – Never work alone – Always wear protective clothing and hand protection – Stay clear of suspended loads – Always use appropriate lifting devices – Beware of risks of sudden starts of any automated equipment such as level control –...
-
Page 6: Electronic Safety Devices
1.13 Spare Parts WARNING Use of non-genuine spare parts may cause damage to equipment, damage to property and voiding of warranty – Use genuine, Dutypoint-approved spare parts only – If in doubt, contact Dutypoint Service on 01452 300590. - Page 7 Inspect the package Inspect the package for damage or missing items upon delivery Note any damaged or missing items on the shipping paperwork and contact Dutypoint immediately File a claim with the shipping company if anything is out of order...
- Page 8 1. Important Safety Information...
-
Page 9: Tank Offloading, Installation And Maintenance
2. Tank Offloading, Installation and Maintenance Tank Offloading, Installation and Maintenance This information applies to all clean water GRP tanks, ElevaTANK and QuadraTANK units. Specification GRP tank products are manufactured from non-corrosive materials to the requirements of EN 13280:2001 (formerly BS7491 Part 1 and 2) and incorporating the quality control requirements of BS EN ISO 9002:2000. Internal surfaces in contact with the fluid are smooth isophthalic gel-coated with a high gloss finish to improve resistance to bacteriological growth. - Page 10 2. Tank Offloading, Installation and Maintenance All tanks and tank systems are factory water tested at manufacture stage. However, connections may be disturbed during transportation and should be checked for tightness before the tank is filled with water and carefully monitored once filled to ensure there is no leakage. It is recommended that tanks should be sterilised before putting into use.
-
Page 11: System Overview
Dutypoint VG Variable Speed Cold Water Booster Set The Dutypoint VG booster set consists of 1, 2 or 3 variable speed electrical pumps connected in parallel. The pumps are mounted on a common base plate with suction and discharge manifolds, isolation valves, non-return valves, a pressure gauge, pressure transducers, and control panel. - Page 12 3. System Overview Table 3.2: Technical Data Input Voltage 230V ±10% Supply Frequency 50/60Hz ±2 Max Input Current See rating plate Enclosure Protection IP55 Storage Relative Humidity 5%-95% Ambient Temperature -20°C - +50°C Max Altitude 1000m above sea level Sound Pressure LpA <62 dB @ 3000 rpm Maximum Operating Pressure See rating plate...
-
Page 13: Booster Set Commissioning
Please note that engineer visits by Dutypoint are priced at one visit to commission one pump set. If there are multiple units on a site, special terms can be negotiated. To arrange a commissioning visit, please call the Technical Service Help line 01452 300590. -
Page 14: Terminal Wiring
If 2 or more float switches are required (due to twin compartment or multiple tanks) all float switches are wired into terminals 1 and 2 in parallel. Figure 4.3: Terminal Wiring If installing a Dutypoint FS-series float switch, the following terminals should be used: LEVEL BROWN: Terminal 1... -
Page 15: Programming The Controller
The advised procedure should then be carried out individually for each pump in the pump set. 4.10 Programming the Controller Dutypoint Systems fit a design of Inverter/Controller that is most suitable for the design duty of the pump set. Manufacturer’s information for them is detailed in the Appendices to this manual. - Page 16 4. Booster Set Commissioning ‘Standby’ Pump now starts and runs in place of the inhibited ‘Duty’ pump and observe the pressure values. Verify that the pump motor speeds up / slows down in accordance with the desired control philosophy. Wait for a normal stop to take place (or create the conditions where this would happen) and check the ‘Standby’...
-
Page 17: Control Panel Overview
5. Control Panel Overview Control Panel Overview The Dutypoint control panel for booster sets provides external user control, internal protection and fault monitoring circuitry. External Features Externally the panel provides: – An overall (main) isolator, single phase or three phase as appropriate –... - Page 18 5. Control Panel Overview...
-
Page 19: Pressure Vessel
6. Pressure Vessel Pressure Vessel The pressure vessel supplied as part of your Dutypoint product is used to absorb and conserve the potential energy of pressurised liquid. Stored energy from liquid under pressure is transferred to the water system when required. -
Page 20: Diaphragm Replacement
6. Pressure Vessel Figure 6.6: Pre-Charging a Pressure Vessel Diaphragm Replacement To replace a diaphragm: Empty the expansion tank Remove the pre-charging by releasing the air vent. Loosen the M8 screws fastening the flange Remove the flange Extract the diaphragm and replace it Installing a Replacement Vessel Read these instructions carefully before installing the product: Make sure the product is in good condition. -
Page 21: Maintenance
7. Maintenance Maintenance General ELECTRICAL HAZARD – Before any service or maintenance work, disconnect the system from the power supply and wait at least 4 minutes before starting work on the unit (the capacitors in the intermediate circuit are discharged by the internal discharge resistors) The pump set does not require any special maintenance, but some periodic checks are essential. - Page 22 7. Maintenance...
-
Page 23: Operating The Pump Set
High liquid temperature – Duty points insisting on unit maximum power – Persisting under-voltage of mains, Lift expectancy of the pump set may be affected and/or de-rating may occur. Contact Dutypoint for more information. Discharge Time WARNING – Disconnect and lock out electrical power and wait for 4 minutes. - Page 24 8. Operating the Pump Set 6. Pressure Vessel for details of pressure vessel adjustment. Startup To start the pump set, proceed as follows: Connect the water supply Connect the power supply 6. Pressure Check the pressure vessel pre-charge value (see Vessel) Close the pump delivery valves Prime the pump set and suction manifold...
-
Page 25: Troubleshooting
9. Troubleshooting Troubleshooting WARNING – The maintenance and repair operations must be performed by qualified personnel – Before servicing the pump set, disconnect the power supply and make sure there is no pressure in the hydraulic components – Wait at least 4 minutes before starting work on or in the unit. The capacitors in the intermediate circuit are discharged by the internal discharge resistors. - Page 26 9. Troubleshooting Symptom Cause Solution The unit does not Pumps rotating in wrong direction Check the correction connection to generate the desired the motor by exchanging 2 leads pressure On-off valves closed Open the valves Air in the suction pipe Eliminate the air Prime the pumps Excessive suction lift...
-
Page 27: Control Panel Wiring Diagram
10. Control Panel Wiring Diagram Control Panel Wiring Diagram Figure 10.7: Twin Pump Control Panel Wiring Diagram 5&&% 0&% &2,ˆ 1# &217% &7 INVERTER 1R %&**° " 1& &217% &7 &&% 0&% 023- 1)# ˛ ,0(5 %($&# 1 0ˆ INVERTER 1R ˆ... - Page 28 10. Control Panel Wiring Diagram...
-
Page 29: Lowara Esm Pump Drives
11. Lowara eSM Pump Drives Lowara eSM Pump Drives 11.1 Specifications Table 11.4: Motor Specification Table e-SM Drive Model 103 105 107 111 115 303 305 307 311 315 322 Input Input Frequency 50/60Hz ±2 Mains Supply L1 L2 L3 Nominal Input Voltage 208-240V ±10% 208-240V / 380-460V ±10%... - Page 30 11. Lowara eSM Pump Drives Table 11.5: I/O Terminals Item Terminals Number Description Comments Fault Signal In case of power wires: use M20 cable gland Auxiliary Voltage Voltage supply 15VDC, 100mA Supply Analogue 0-10V P2IN/S+ Actual value voltage 0-10 VDC P2C/S- Ground for external GND, electronic...
- Page 31 11. Lowara eSM Pump Drives Figure 11.9: eSM Drive Control Panel No. Description Function Communication Green when selected control protocol is activated and functioning. Power LED When green LED is lit, the pump is supplied with power and the electronic devices are operative.
-
Page 32: Display Mode
11. Lowara eSM Pump Drives 11.4 Display Display Mode Description Contacts 11 and 12 are not short-circuited. Note: lower display priority than STOP mode. STOP Pump stopped manually. If the pump is switched on after setting P04 = OFF it is stopped so that the motor is not in operation, and STP flashes (STP ->... - Page 33 11. Lowara eSM Pump Drives Parameter Type Unit Description P03 Regulation restart Global It defines the start value after the stop of the pump, as a value [0-100] percentage of the P01 value. If the required value is met and there is no further consumption, then the pump stops.
-
Page 34: Drive Configuration Parameters
11. Lowara eSM Pump Drives Table 11.7: Settings Parameters No. Parameter Description P20 Password The user can enter here the system password, which gives access to all system [0-999] parameters: this value is compared with the one stored in P22.When a correct password is entered, the system remains unlocked for 10 minutes. - Page 35 11. Lowara eSM Pump Drives No. Parameter Type Unit Description P33 Ramp Speed Global s This parameter sets the fast deceleration time. It represents the deceleration ramp used by the controller for Deceleration stopping the pump once the minimum speed of the pump is [2.0-25.0] reached (P27).
- Page 36 11. Lowara eSM Pump Drives No. Parameter Unit Type Description P42 Pressure Sensor bar/psi Global This parameter sets the Full Scale value of the 4-20mA Full Scale - pressure sensor connected to analogue input 9 and 10. 4-20mA Default: depending on the type of pump. [0.0-25.0 bar] / 0.0-363 psi] P44 Zero Pressure...
-
Page 37: Multi-Pump Configuration Parameters
11. Lowara eSM Pump Drives No. Parameter Unit Type Description P51 Communication This parameter sets the desired address for the unit, when protocol - connected to an external device, depending on the protocol Address selected in P50: [1÷247]/[0÷12 – MOD: any value in the 1÷247 range –... -
Page 38: Test Run Configuration Parameters
11. Lowara eSM Pump Drives Parameter Unit Description P63 Multipump – Priority This parameter shows the pump priority value within the multi-pump set This parameter displays the following information: (Pr1) .. (Pr3) or (Pr0) where – Pr1 .. PR3, indicate that the pump is communicating with others pumps and its priority order, is equal to the visualized number –... -
Page 39: Control Modes
11. Lowara eSM Pump Drives 11.9 Control Modes Table 11.10: Drive Control Modes Code Name Description Actuator Mode A single pump maintains a fixed speed at any flow rate. ACT will always try to minimize the difference between the speed set point and the actual rotational speed of the motor If a 0-10V signal is supplied to terminals 7 and 8, the pump automatically switches to ACT mode, following the external signal. -
Page 40: Technical References
11. Lowara eSM Pump Drives 11.10 Technical references Figure 11.10: ACT Control Mode Diagram Example: ACT control mode with analogue 0-10V input Table 11.11: Descriptions Grey area Missing input Voltage detection threshold Speed [rpm] Actual speed relative to the 0-10V analogue input voltage value P26 (Max RPM set) P27 (Min RPM set) Setpoint... -
Page 41: Example: Ramp Settings
11. Lowara eSM Pump Drives 11.11 Example: Ramp Settings Figure 11.11: Ramp settings Table 11.12: Descriptions P01 (Required Value) P37 (Adjustment hysteresis) as a % of P36 (Adjustment window) P36 (Adjustment window) as a % of P01 (Required Value) P35 (Minimum speed - Duration) P27 (Minimum speed) Actual Head Actual Speed... -
Page 42: Troubleshooting
11. Lowara eSM Pump Drives – K = number of active pumps (K ≥ Pr) – P02 (Actual Required Value) = P01 (Required Value) + (K – 1) * (P58 – P59) Behaviour of P58 (Actual Value Increase) and P59 (Actual Value Decrease): –... -
Page 43: Lowara E-Hm Pumps
12. Lowara e-HM Pumps Lowara e-HM Pumps This section provides installation, operation and maintenance details for the Lowara e-HM range of horizontal multistage pumps. The information in this section is taken from the Installation, Operation and Maintenance Manual issued by Lowara. It is provided here for additional guidance for the user. -
Page 44: Application Limits
12. Lowara e-HM Pumps 12.3 Positioning and Fastening The unit can be transported either horizontally or vertically. Make sure that the unit is securely fastened during transportation and cannot roll or fall over. 12.4 Storage Guidelines : Protect the product against humidity, dirt, heat sources and mechanical damage. NOTE The product must be stored at an ambient temperature from -40°C to +60°C. -
Page 45: Piping Requirements
12. Lowara e-HM Pumps DANGER: – Do not use this unit in environments that may contain flammable/explosive or chemically aggressive gases or powders Observe the following guidelines regarding the location of the product: – Ensure that no obstructions hinder the normal flow of the cooling air that is delivered by the motor –... -
Page 46: Install The Pump
12. Lowara e-HM Pumps : The control panel must match the ratings of the pump. Improper combinations NOTE could fail to guarantee protection of the motor. Check that the following conditions are met: – The control panel must protect the motor against overload and short circuit –... -
Page 47: Electrical Hazard
12. Lowara e-HM Pumps 12.13 Electrical Installation WARNING: – Make sure all connections are performed by qualified installation technicians and in compliance with the regulations in force. – Before starting work on the unit, make sure that the unit and the control panel are isolated from the power supply and cannot be energised. -
Page 48: Prime The Pump
12. Lowara e-HM Pumps 12.16 Prime the Pump See figure for illustration: Fill plug Drain plug Funnel 12.17 Installations with liquid level above the pump (suction head) Close the on-off valve located downstream from the pump Remove the fill plug and open the on-off valve upstream until the water flows out of the hose Close the fill plug 12.18 Installations with liquid level below the pump (suction lift) - Page 49 12. Lowara e-HM Pumps 12.21 Maintenance ELECTRICAL HAZARD – Disconnect and lock out electrical power before installing or servicing the unit. WARNING: – Maintenance and service must be performed by skilled and qualified personnel only – Observe accident prevention regulations in force –...
- Page 50 12. Lowara e-HM Pumps Problem Cause Solution Pump’s delivery is Pump is throttled Check for throttling of pipes reduced Incorrect rotation direction Check direction of rotation Pump is not primed correctly Repeat priming procedure...
-
Page 51: Dutypoint Ec Specifications
Dutypoint EC electromagnetic water conditioners are the ecological solution to increased life cycle costs associated with the build-up of hard lime scale. The Dutypoint EC reduces energy consumption and extends the life of plant equipment by eliminating the build-up of hard calcareous lime scale, without introducing harmful chemicals or additives. -
Page 52: Electrical Information
13. Dutypoint EC Specifications Max Flow Diameter Connection Model Rate (l/sec) Power (W) (mm) Depth (mm) Size Weight (kg) EC50 2” EC65 2½” EC80 10.8 3” EC100 18.3 4” 13.4 Electrical Information The unit does not produce stray currents. Power supply input: 230V 1~ 50Hz... -
Page 53: Declaration Of Conformity
2014/35/EU : Low Voltage Directive. • S.I. 2016:1101 Electromagnetic Compatibility Regulations 2016 Hereby declare that the equipment: Product Range Dutypoint QuadraTANK Is in conformity with the applicable requirements of the following documents: • EN 809:1998+A1:2009: Pumps and pump units for liquids ‐ Common safety requirements • EN 60204‐1:2018: Safety of machinery ‐ Electrical equipment of machines ‐ Part 1: General requirements • EN ISO 12100:2010: Safety of machinery ‐ General principles for design • EN 61000‐6‐2:2019: Electromagnetic compatibility (EMC) — Part 6‐2: Generic standards • EN 61000‐6‐4:2019: Electromagnetic compatibility (EMC) — Part 6‐4: Generic standards I hereby declare that the equipment described above has been designed to comply with the relevant sections of the above referenced specifications. The unit complies with all applicable essential requirements of the d irectives. Nigel Freeman, Director Dutypoint Ltd Unit A, Quedgleley West Business Park, Hardwicke, Gloucester GL2 4PA United Kingdom Tel: +44 (0)1452 300590 www.dutypoint.com ... - Page 54 12 months from date of commissioning. Full terms and conditions are located on the website https://www.dutypoint.com/terms-and-conditions/ If you need to contact us regarding your warranty or any issue regarding your Dutypoint product, please contact our service department: •...
- Page 55 Dutypoint Limited Unit A, Quedgleley West Business Park, Hardwicke, Gloucester GL2 4PA United Kingdom T: +44(0)1452 300592 W: www.dutypoint.com...
