Boya BY-WM4 PRO RXD, BY-WM4 PRO RXU Manual

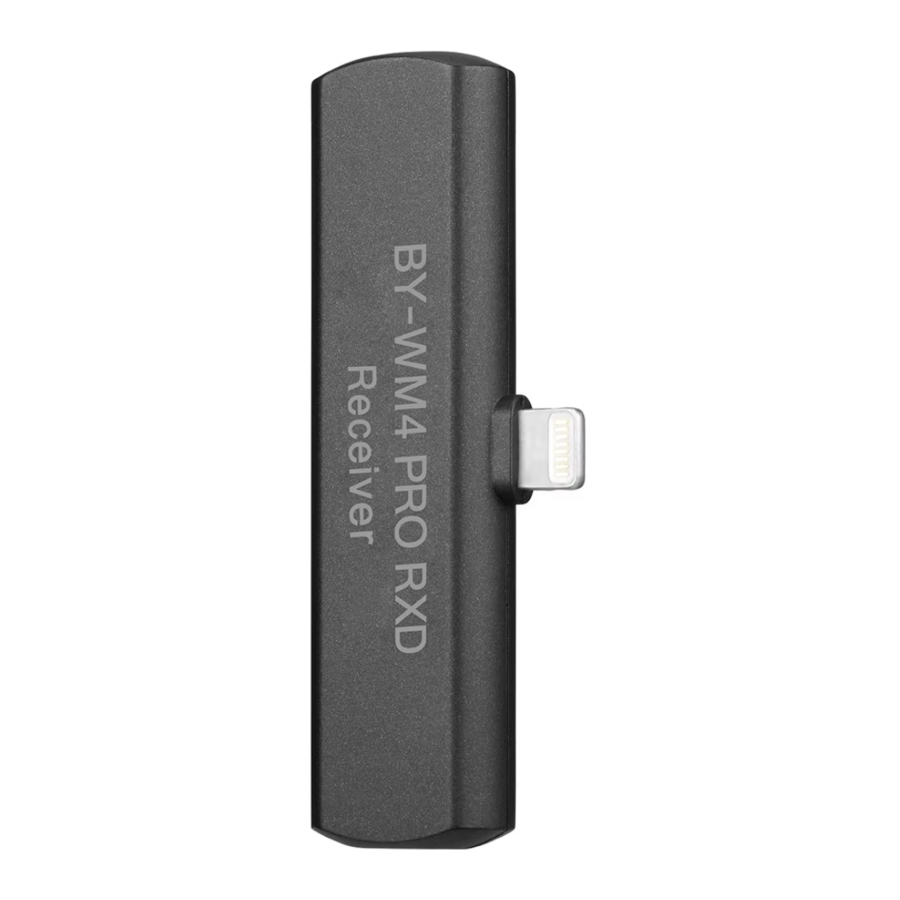

BY-WM4 PRO RXD

For iOS devices

Receiver

3. Lightning Connector
4. Volume +/-
   Press these buttons to set the attenuation level of the input signal.
5. Pair Bottom
   For more details, please see "Connecting the transmitter and the receiver".
6. M/S Switch
7. Built-In Internal Antenna

Set Up Guide

1. Plug the BY-WM4 PRO RXD directly into the lightning port of smartphone.
2. Open the audio/video app on mobile device, then the indicator of receiver should be light up.
3. The Power LED flashes slowly waiting for connecting with the transmitter.

Connecting the transmitter and the Receiver
Before leaving factory, the connection of transmitters and receiver will be established.
If transmitters and receiver disconnect, please follow below steps:

1. Turn on the transmitter and plug the receiver into smartphone.
2. Long press the pair bottom of receiver with pair pin, the indicator of receiver will flash quickly when entering paring mode.
3. Long press the pair button on the side of the transmitter entering the pairing mode.
4. When the transmitter and receiver connected, the light of receiver stays blue, and transmitter flashes every 2.5 seconds.
   Otherwise, the light of receiver and transmitter will flash continually every 1 second, then try 1-3 steps again.

NOTE:

1. Please adjust the monitoring audio volume of BY-WM4 PRO RXD before recording.

BY-WM4 PRO RXU

For Android and other Type-C devices

Receiver

1. Headphone Jack
   (3.5mm diameter stereo mini jack)
   To monitor the receiver output, connect the headphones to this connector.
   NOTE:
   Do not connect headphones with a monaural mini jack. This may lead to short-circuiting of the headphone output, resulting in distorted sound output.
2. Power LED
   For more details about LED indicator, please refer to as following:

   Status	Receiver	Transmitter
   The transmitter and the receiver connects.	The indicator won't light up until you turn on the audio/video app.	Flashes continually every 2.5 seconds.
   The transmitter and the receiver disconnects.	Flashes continually every 1 second.	Flashes continually every 1 second.
   Receiver unit is turned OFF(Transmitter is still ON)	Off	Flashes in blue
   Transmitter unit is turned OFF(Receiver is still ON)	Flashes in blue	Off
   Low power	/	Flashes in red
   The transmitter and the receiver waits for pairing	Flashes quickly in blue light

3. USB Type-C Connector
4. Volume +/-
   Press these buttons to set the attenuation level of the input signal.
5. Pair Bottom
   For more details, please see "Connecting the transmitter and the receiver".
6. M/S Switch
7. Built-In Internal Antenna

Set Up Guide

1. Plug the BY-WM4 PRO RXU directly into the lightning port of smartphone.
2. The Power LED flashes slowly waiting for connecting with the transmitter.

Connecting the transmitter and the Receiver
Before leaving factory, the connection of transmitters and receiver will be established.
If transmitters and receiver disconnect, please follow below steps:

NOTE:

1. Please adjust the monitoring audio volume of BY-WM4 PRO RXU before recording.

Specifications
