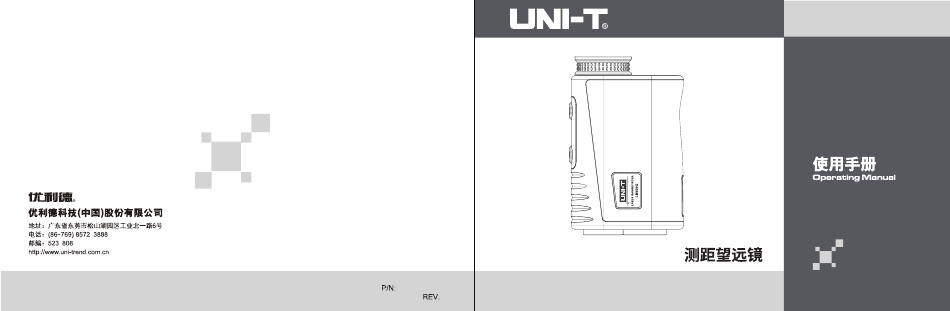

- Page 1 LM600G Series Laser Rangefinders 110401111124X 2022/ 03/30...
- Page 2 Safety Instructions Please read the safety and operating instructions carefully before using the product for the first time. If users do not use the product in accordance with the instructions in this manual, it may cause damage to the product, affect the accuracy or cause personal injury. Do not disassemble or repair the product by yourself.
-
Page 3: Product Introduction
Product Introduction LM600G series laser rangefinders can be used in power equipment installation, highway, municipal engineering, forestry survey and design, construction, network planning, communication maintenance and golf. While clearly observing objects, the product can measure the distance of fixed or slow moving objects in a certain range. -
Page 4: Product Appearance
Product Appearance Power/Measure Eyepiece /Viewfinder Mode/Set Laser emitting lens /Objective lens Rotary focusing Charging ring interface Laser receiving lens /Objective lens... -
Page 5: Specifications
Specifications Range Functions LM���G LM���G LM����G LM����G LM����G Model �-���m �-���m �-����m �-����m �-����m Distance range ±1m±range×0.2% Accuracy Magnification ±6° diopter Diopter adjustment range 250m 300m 450m 500m 600m Height ±�.�m Height error �-���Km/h Speed range ±��° Angle ��mm Objective aperture ��mm Eyepiece aperture �.�mm... - Page 6 Display Indicators/Icons Display Indicators/Icons...
- Page 7 Linear distance mode Speed measurement Battery status Golf trajectory compensation mode Flagpole lock mode Vibration Flagpole unlocked: Units (m: meter/Y: yard) Flagpole locked: Aiming circle/dot kY/h Target seeking: flashes km/h Target sought: stops flashing Uphill or downhill In linear distance mode: Display height and angle Uphill: In flagpole lock mode: Display height and angle In golf trajectory compensation mode: Display...
- Page 8 Power On Press and release the Power Short press button to activate the display Aiming circle/dot down if no button press occurs for 20 seconds. To be measured Measurement complete...
- Page 9 Rotary Focusing Ring According to the positive and negative indications on the knob as a reference. Users who can't see close (e.g., farsighted) should rotate in the "+" direction, and users who can't see far (e.g., nearsighted) should rotate in the "-" direction. Rotate the knob to match eye distance with pupil distance.
- Page 10 Modes Short press to switch between different modes. There are 5 modes: Linear distance mode: Measure the linear distance between the user and the target. Flagpole lock mode: Lock the nearest target Linear distance mode Flagpole lock mode distance. Golf trajectory compensation mode: Measure the golf trajectory compensation distance.
- Page 11 Units and Vibration Long press for 2s to enter the setting interface. Units Short press to switch between m and Y. Short press to set the vibration mode. Vibration Vibration on Setting complete Short press to turn on/off the vibration mode. Short press to complete the setting Note:...
- Page 12 Linear Distance Measure the target distance, height and angle. Single measurement: Short press to take a measurement. Continuous measurement: Long press to scan the laser across an area and get continuously updated range readings. Once Linear distance Relative height Angle Measured result...
- Page 13 Flagpole Lock When measuring overlapping targets, long press to display the distance of the nearest target. For example, if it is not clear whether the measured target is the flag or the forest behind it, the product with the flagpole lock function will lock on the nearest target, the flagpole.
- Page 14 Golf Measurement Long press to display the golf trajectory compensation distance, height and actual distance. Uphill Actual distance corresponds to the value Downhill displayed inside the viewfinder...
- Page 15 Height and Horizontal Distance Short/long press to display the relative height and horizontal distance of the observer to the target. Once Horizontal distance Relative height...
-
Page 16: Speed Measurement
Speed Measurement Press and hold and aim at the moving target. The product will calculate the target speed in real time and display it on the LCD. - Page 17 Cautions The product emits an invisible and harmless infrared pulse laser which is then reflected back to the optical receiver on the product from the target. By measuring how long it takes each pulse laser to travel from the rangefinder to the target and back, the product system uses a precise charging circuit to calculate the measured distance in real time.
- Page 18 When the battery status is , please charge the battery immediately. Do not touch the lens surface to protect the film layer. Do not disassemble the product. If it is damaged, send it to specialized departments for maintenance. Please wipe the lens gently with a cleaning cloth. Do not wipe with other objects. Avoid collision or heavy pressure when carrying.
-
Page 19: Packing List
Packing List Laser rangefinder Packing box Hand strap Carrying bag User manual USB Type-C cable...
