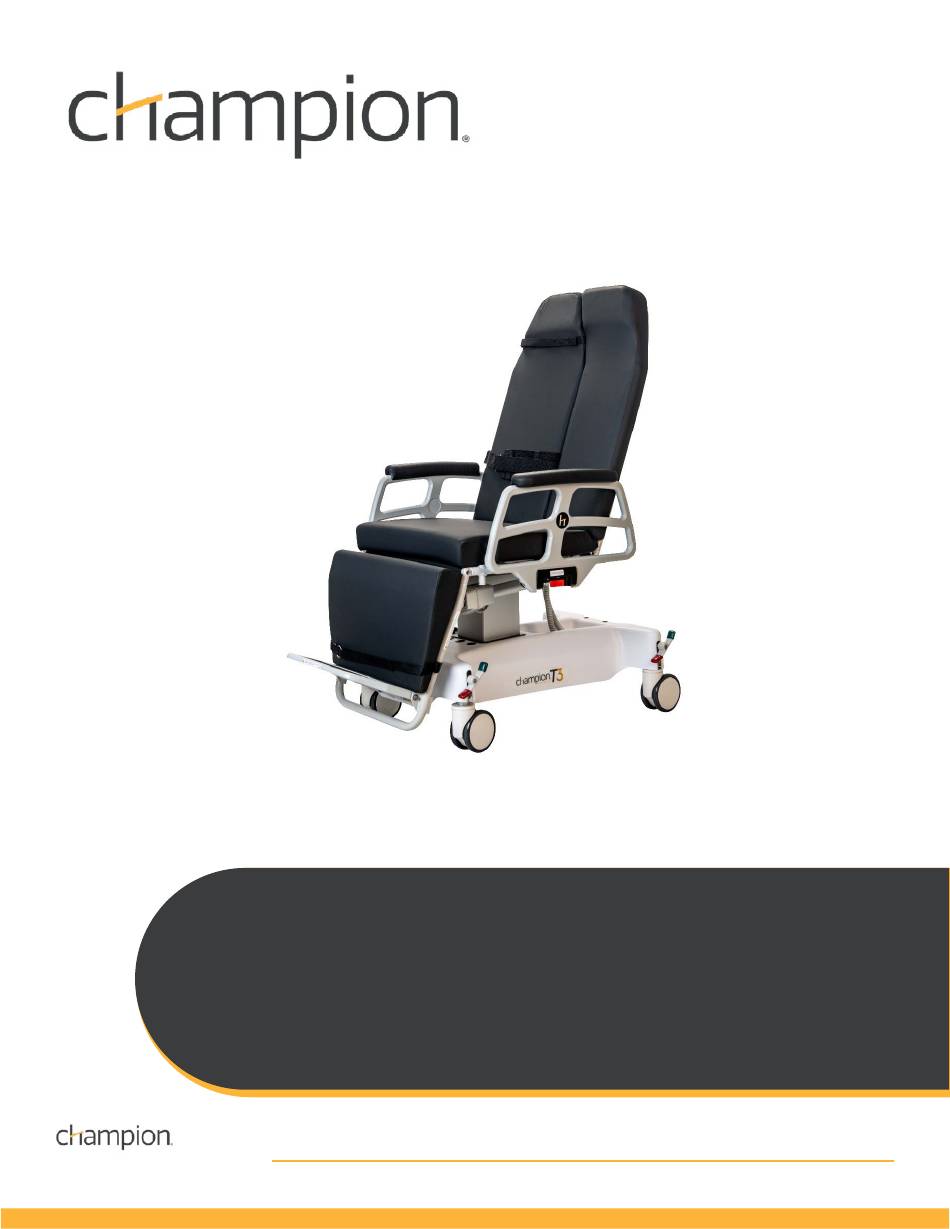

- Page 1 OWNER’S OPERATING AND MAINTENANCE MANUAL T3 PROCEDURE CHAIR 1-800-237-3377 www.championchair.com customerservice@championchair.com...
-
Page 2: Important Notes About This Manual
Champion assumes no responsibility for damage or injury caused by improper assembly, installation, use, or maintenance of these products. No part of this manual may be duplicated in any form without the prior consent of Champion Manufacturing, Inc. Unauthorized duplication/distribution of these materials may result in civil prosecution to the maximum extent allowed by law. -
Page 3: Table Of Contents
..............Intended Use Statement Transportation, Storage, Handling & Disposal ..........................Preparation: Before You Begin ..............................Specifications....................................Power Cable Requirements............................... Safety Precautions................................... Product Labeling Diagrams (T3 Shown)............................. Pinch Points....................................Operating Instructions................................Quick Release Back Section............................... Caster Brake Operation................................Side Rail Operation................................. -
Page 4: Intended Use Statement
This device is battery powered and employs a pendant control to operate a series of electric motors for patient positioning. The pendant control is NOT INTENDED FOR PATIENT USE. A surgeon and/or clinician must always rely on his or her own clinical knowledge when deciding whether to use a T3 Procedure- Chair when treating a patient. -
Page 5: Electrical Specifications
Power consumption (standby) max. 0.5 W (depending on input voltage) Power consumption (charging) max. 30 W (depending on input voltage) DUTY CYCLE 10%, Max / 2 min, MIN / 18 min IP RATING All T3 Procedure chairs are rated IPX0 1-800-237-3377 www.championchair.com customerservice@championchair.com manual... -
Page 6: Power Cable Requirements
T3 & T3-X POWER/CABLE REQUIREMENTS Only use the power/charging cord that came with your product. SAFETY PRECAUTIONS WARNING IMPORTANT: PLEASE READ WARNINGS CHAIR OPERATION BY QUALIFIED, TRAINED MEDICAL PERSONNEL ONLY The chair is intended to be operated only by qualified, trained medical staff. Operation of chair by unauthorized, untrained and/or lay people must be avoided. - Page 7 T3 & T3-X SAFETY PRECAUTIONS CONTINUED WARNING IMPORTANT: PLEASE READ USE CAUTION WHEN STORING OXYGEN CYLINDER UNDER CHAIR To prevent severe gas leakage or rupture of compressed gas cylinder, when placing cylinder under chair, ensure adequate clearance between cylinder and its attached gas equipment (i.e. regulator, gauges, fittings, knobs) and all adjustable chair sections and/or features (i.e.
- Page 8 For T3, chair must be at least 24 inches from nearest wall or obstruction to allow for full range of activation. Leave chair in lowest position whenever possible. This practice will decrease potential injury during an unsupervised patient egress from chair.
-
Page 9: Important: Please Read
CAUTION: Use of accessories, transducers, and cables other than those specified or provided by Champion could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation. The AC power cable supplied with your chair is 3,000 mm long (+/- 300 mm). The pendant cable is 820 mm long coiled and 7,400 mm long uncoiled. - Page 10 T3 & T3-X TEST SPECIFICATIONS FOR ENCLOSURE PORT IMMUNITY TO RF WIRELESS COMMUNICATION EQUIPMENT Test Level Test Frequency (MHz) Band (MHz) Service Modulation (V/m) 380 to 390 TETRA 400 Pulse Modulation, 18 Hz FM ± 5 kHz deviation 1 kHz sine...
-
Page 11: Product Labeling Diagrams
Every three (3) months, inspect all labels and ensure they are legible and not tattered, torn or missing. Refer to the label locations in figure below. If labels need replacing, contact Champion Customer Service at 1-800-237-3377. Back rest Quick Release... -
Page 12: Pinch Points
T3 & T3-X Item No. Part No. Description TMM-2542-10 Base Cover Label (Side), T3 TMM-2536-10 Label, Warning, T3 Rotated Position TMM-2535-10 Label, Warning, Excessive Weight On End TMM-679-10 Base End Label TMM-270-10 Max. Weight Label - 350LB TMM-225-10 Seat Lock Knob Label... -
Page 13: Operating Instructions
T3 & T3-X OPERATING INSTRUCTIONS QUICK RELEASE BACK SECTION FIG. 1 1. LOCATE MANUAL QUICK RELEASE LEVER Back section quick release (red) lever is located under seat on patient’s right side. (Fig. 1) FIG. 2 2. ACTIVATE RELEASE LEVER To activate back section quick release, pull red lever out towards the arm rail. -
Page 14: Caster Brake Operation
T3 & T3-X CASTER BRAKE OPERATION BRAKE MODE FIG. 1 Activate braking system by pressing down on red end of either brake pedal located at base of chair. (Fig. 1) NOTE: This mode prevents all four casters from swiveling and all wheels from spinning. -
Page 15: Side Rail Operation
T3 & T3-X SIDE RAIL OPERATION FIG. 1 LOWERING SIDE RAIL Grasp top of side rail and push inward slightly, while pulling out red rail release tab. Once released, lower rail. (Fig. 1) STOWING SIDE RAIL To stow side rail, lower rail into “down” position below seat (or FIG. -
Page 16: Pendant (Controller)
T3 & T3-X IMPORTANT FIG. 3 FIG. 4 • You do not need to hold the bottom nut while tightening the top nut. • When adjusting, ensure bottom jam nut is contacting seat frame. • Ball joint head angle does not matter. -
Page 17: Back Section Adjustment
T3 & T3-X PENDANT (CONTROLLER) BACK SECTION ADJUSTMENT First row of pendant buttons adjusts angle of back section. Press left button to raise chair back. Press right button to lower chair back. LEG SECTION ADJUSTMENT Second row of pendant buttons adjusts angle of leg section. - Page 18 T3 & T3-X PENDANT (CONTROLLER) INDICATOR LIGHTS MAINTENANCE REQUIRED BATTERY STATUS (see page 19) AC POWER CONNECTED LOCKOUT INDICATOR When illuminated, this function has been manually locked by the user, or has been automatically locked to prevent damage to the unit.
-
Page 19: Control Box Indicator Lights
T3 & T3-X CONTROL BOX INDICATOR LIGHTS CONTROL BOX INDICATOR LIGHTS 1-800-237-3377 www.championchair.com customerservice@championchair.com manual Document No.: TMM-2584-13 - Revision: REV A... -
Page 20: Fault Indicator Leds
T3 & T3-X CONTROL BOX INDICATOR LIGHTS FAULT INDICATOR LEDs 1-800-237-3377 www.championchair.com customerservice@championchair.com manual Document No.: TMM-2584-13 - Revision: REV A... -
Page 21: Patient Ingress/Egress
WARNING CHAIR WHEN IN A PARTIALLY, OR TOTALLY, RECLINED POSITION. SERIOUS PATIENT INJURY MAY OCCUR. ALL PATIENT TRANSFERS MUST BE MADE TO RIGHT SIDE OF T3-SERIES CHAIR, DUE TO SHAPE OF BACK SECTION, AND NOT TO CHAIR ENDS. IMPORTANT: Follow these instructions for safe and proper patient transfer between chair (in procedure orientation) and another horizontal surface. -
Page 22: Push Bar Operation
• Ensure no damage to chair or imaging device while adjusting chair. ROTATING A T3 PROCEDURE-CHAIR With patient in chair, depress RED caster brake pedal to lock caster wheels. Place in chair configuration by pressing "Auto Contour" button on pendant. -
Page 23: Batteries
T3 & T3-X BATTERIES Your procedure chair comes with one rechargeable Lithium-Ion battery pack. The pack may be charged on the chair, or by using the optional tabletop charger (TMA301-15). To charge the battery on the chair, plug the AC power cord into the bottom of the control box. The other end of the cord may be plugged into any standard 110-220 VAC outlet. -
Page 24: F" Option: Folding Footrest
T3 & T3-X “F” OPTION: MANUAL FOLDING FOOTREST WHEN POSITIONING FOOTREST, BE AWARE OF PINCH POINTS WARNING To stow footrest, place both hands on red handles and lift. NOTE: For patient comfort, stow footrest prior to articulating chair into supine (procedure) position. -
Page 25: General Care And Cleaning
T3 & T3-X CLEANING INSTRUCTIONS GENERAL CARE & CLEANING Proper care is essential in ensuring the durability and reliability of Champion upholstery. In general, all products should Cleaned Disinfected (per facility policy) Rinsed Allowed to air dry It is important to note that the terms “disinfecting” and “cleaning” should not be used interchangeably. Disinfectants alone will not provide adequate cleaning since they do not have the appropriate properties to cut grease or oil and remove grime, hair or skin oils. -
Page 26: Preventive Maintenance
T3 & T3-X PREVENTIVE MAINTENANCE Maintenance is not to be performed by the patient COMPONENT FREQUENCY PROCEDURE TOOL COMMENT If torn, Cushion Pads After each use Inspect for tears. discard cushion. • Inspect for integrity, loose All Rails Every three fasteners, and proper operation. -
Page 27: Battery Safety & Charging Information
WARNING Use of Batteries that are NOT factory approved will void any and all warranties. Replace only with Champion part number TMA300-15. SUGGESTED PROTOCOL FOR CHARGING YOUR BATTERY: Benchtop charger (CHL50): Ensure the cord for your battery charger is fully inserted into the battery charger inlet. -
Page 28: Applied Parts Statement
Information contained in this document is based on the latest product data available at the time of printing. Photography, artwork, text and specifications are subject to change. Photographs may show optional items. Champion Manufacturing Inc. reserves the right to make changes to products, materials, options, and/or specification at any time without notice or obligation.
