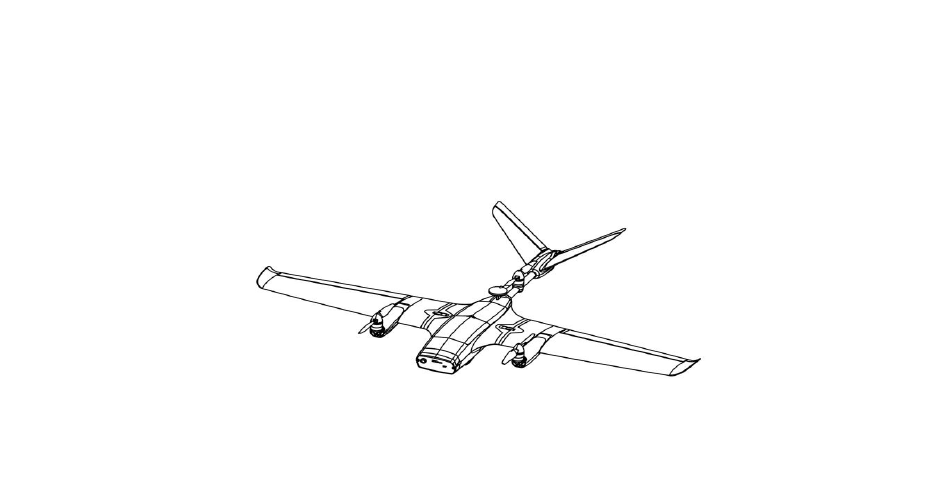

- Page 1 ZMO Pro Quic k Start Gu WWW.OMPHOBBY.COM...
-
Page 2: Power On The Unit
After powering on, do not move the aircraft until the self-check of the aircraft system is completed. (After the self-check is completed, you will hear two long beeps of "Didi"). Tips: The battery for ZMO Pro is 5100mAh 4S HV. Pls charge it with chargers supporting “LiHV” battery. Suggest to charge with 6amp. - Page 3 2. Remote Controller Calibration • Connect the flight controller USB port through the attached upgrade board. • Open the “Mission Planner” ground station software, select the corresponding “COM port” and “115200” baud rate, then click to connect. ① Enter the "Initial Settings" interface, Click " Set Up", ②...
- Page 4 Move all RC sticks and switches to their extreme positions. The red line will appear on the calibration bar, showing the minimum and maximum values. When the operation is completed, return all sticks back to center positions and throttle stick to the lowest position. The notice "Make sure all sticks are located on the center, throttle down, and click OK to continue."...
- Page 5 3. Unlock take-off (VTOL Mode) Make sure GPS has a solid connection. When you switch to the Drone Self-stabilization Mode, the SA, SD Switch needs to be in the “Away Or Down” position, SB, SC Switch needs to be in the “ towards or Up” position The Left stick needs to be in the “Down”...
- Page 6 4. Fixed Wing Departure and Return In the fixed wing mode,keep the accelerator remote lever ≤ 50% and turn the nose against the open and upwind direction (reduce the flight speed in advance),when it is about 30-50m away from the take-off point, switch the SA to the SA2 Position (drone fixed- point flight mode), the ZMO will automatically complete the conversion from fixed wing to VTOL vertical mode and hover, then can manually control the throttle landing.
- Page 7 Danger! If the flight mode is switched to drone self-stabilization mode during landing, the throttle of the aircraft will be controlled by the throttle of the remote control. If the throttle of the remote control is 0, and the throttle of the aircraft is also 0.
- Page 8 5. DJI remote control switch definition...
- Page 9 6. Automatically return home mode When the airplane needs to automatically return and land, keep the throttle stick at about 50% position, Switch the SC switch to SC3, ZMO will automatically return to the take-off point and land. The ZMO will automatically climb to 30 meters when the height is less than 30 meters before returning.
- Page 10 Mode support and Description • Quad stabilize: Under multi axis status, the aircraft only provides stability enhancement function, and the altitude position is controlled by the remote controller. It is generally not recommended for beginner to take off in this mode. •...
- Page 11 7.Linking 1.Power on the air unit and the DJI FPV Remote Controller. 2. Press the link button on the air unit, and then press the record button, C button, and right dial on the remote controller simultaneously.* 3. Both the linking status indicators turn solid green when successfully linked.
- Page 13 When the ZMO PRO is used without a Go pro, the battery should be installed as close to the air unit as possible; When the ZMO PRO is used with Go pro, the battery should be...
- Page 14 Answer: Check the OSD information settings, check whether the connection cable with the flight controller is correct TX-RX, and check whether the flight controller OSD parameter settings are correct. Q5. Does the ZMO PRO support DJI O3 Air Unit ? Answer: Yes.
- Page 15 Protection Mechanism of ZMO PRO flight control: Height protection, Speed protection, Attitude angle protection, out of control protection, automatically return home, voltage protection, mechanical tilt protection, smart tilt protection. 1.Height protection: The flying height of the aircraft in the fixed-wing mode cannot be lower than 15 meters. Below this height, the protection will be triggered and it will automatically switch to the multi-axis fixed-point mode.
- Page 16 Therefore, ZMO PRO can not only fly smoothly in fixed-wing mode, in different wind directions, but also to complete the transition in the downwind or headwind direction, without manual judgment and intervention in the whole process.
