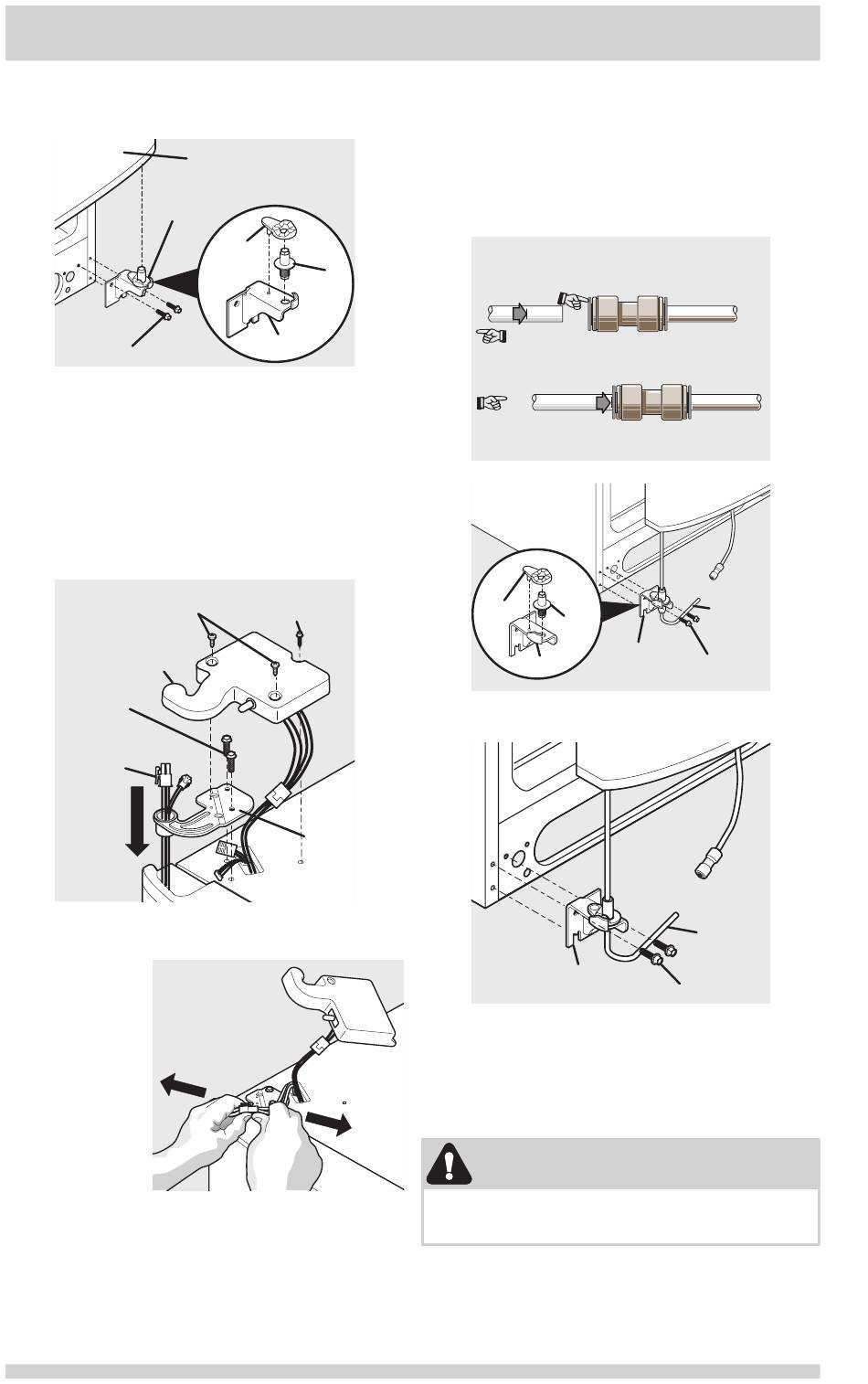

DOOR REMOVAL INSTRUCTIONS
3. Remove the 2 bottom hinge screws and
hinge if necessary.
Hinge
Assembly
Screws
Adjustable Hinge (some models)
To reinstall the refrigerator door, reverse the
above steps.
To remove the freezer top hinge cover:
1. Remove the 2 screws from each cover
over the top door hinges.
2. Lift hinge cover straight up and off.
Front
Cover Screws
Top Hinge
Cover
Hinge
Screws
Multi-Wire
Cable
To remove the freezer door:
1. Detach the
multi-wire
cable
connector
located
above the
top hinge.
Grasp both
sides of the
connector
firmly and
pull apart.
2. Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
3. Detach the water tube from the connector
located below the freezer door. The
connector releases when you press its
outer sleeve inward.
8
Door
Closer
Pin
Hinge
Rear Cover
Screw
Top
Hinge
4. Remove the screws from the top hinge
and pull the multi-wire cable through it.
Lift the door off of the bottom hinge.
5. Remove the 2 bottom hinge screws and
hinge if necessary.
6. Lay the door on its side to avoid damage to the
To Disconnect
1. Press outer ring against face of
fitting
2. Pull to
remove tube
To Connect
Insert tube and push until mark
touches face of fitting
Closer
Pin
Hinge
Adjustable Hinge (some models)
Hinge
Assembly Screws
Non-Adjusting Hinge (some models)
water tube extending from the bottom hinge.
To reinstall the freezer door, reverse the above steps.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury.
Door
Water
Line
Tubing
Hinge
Screws
Assembly
Door
Water
Line
Tubing
