Vecow TGS-1000 User Manual

Intel core ultra processor ultra-compact stackable ai pc 2.5g lan, usb 3.2 type-c, dc12v to 24v, 0c to 55c
Hide thumbs Also See for TGS-1000:
Table of Contents

Advertisement

Quick Links

Download this manual
TGS-1000
Intel
®
Core
™

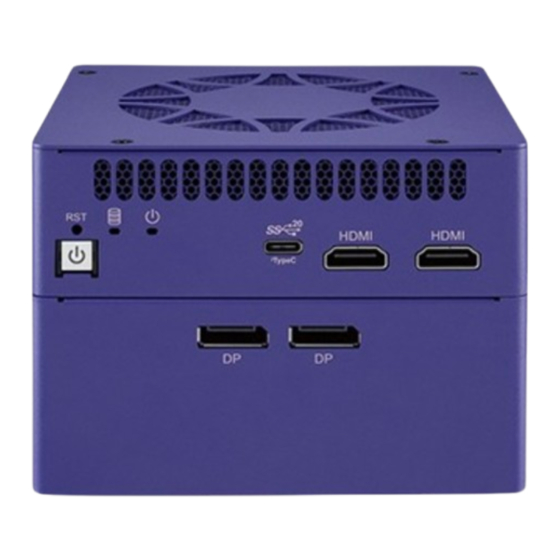

Ultra Processor Ultra-Compact Stackable AI PC
2.5G LAN, USB 3.2 Type-C, DC12V to 24V, 0°C to 55°C
USER
USER
Manual
Manual
1.2.0 Edition 20250106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TGS-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Vecow TGS-1000

Summary of Contents for Vecow TGS-1000

  • Page 1 USER USER TGS-1000 Manual Manual Intel ® Core ™ Ultra Processor Ultra-Compact Stackable AI PC 2.5G LAN, USB 3.2 Type-C, DC12V to 24V, 0°C to 55°C 1.2.0 Edition 20250106...

  • Page 2: Record Of Revision

    Record of Revision Version Date Page Description Remark 1.00 2024/10/24 Official Release 1.10 2024/11/14 v, 99, 100 Update 2.00 2025/01/06 Update...

  • Page 3: Declaration Of Conformity

    This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product;...

  • Page 4: Order Information

    Order Information Part Number Description TGS-1000, onboard Intel Core Ultra 7 165H, 1 2.5G LAN, TGS-1000-165H 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C, 2 HDMI 2.1, 1 DP TGS-1000, onboard Intel Core Ultra 5 135H, 1 2.5G LAN, TGS-1000-135H 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C, 2 HDMI 2.1, 1 DP...

  • Page 5: Optional Accessories

    Optional Accessories Part Number Description DDR5 48G Certified DDR5 48GB 5600MHz RAM DDR5 32G Certified DDR5 32GB 4800/5600MHz RAM DDR5 24G Certified DDR5 24GB 5600MHz RAM DDR5 16G Certified DDR5 16GB 4800/5600MHz RAM DDR5 8G Certified DDR5 8GB 4800/5600MHz RAM 180W, 24V, 90V AC to 264V AC Power Adapter with PWA-180W 3-pin Terminal Block...

  • Page 6: Table Of Contents

    1.4 Mechanical Dimension 1.4.1 TGS-1000 Mechanical Drawing 1.4.2 TGS-1500 Mechanical Drawing 1.4.3 TGS-1550 Mechanical Drawing CHAPTER 2 GETTING TO KNOW YOUR TGS-1000 2.1 Packing List 2.1.1 TGS-1000 Packing List 2.1.2 TGS-1500/1550 Packing List 2.2 Front Panel I/O & Functions 2.3 Rear Panel I/O & Functions 2.4 Main Board Expansion Connectors...
  • Page 7 3.5 Mounting Your TGS-1000 Series 3.5.1 TGS-1000 Wall mount 3.5.2 TGS-1000 VESA mount 3.5.3 TGS-1500 Wall mount 3.5.4 TGS-1500 VESA mount 3.5.5 TGS-100 Wall mount 3.5.6 TGS-100 VESA mount CHAPTER 4 BIOS AND DRIVER SETUP 4.1 BIOS Setting 4.1 BIOS Setting 4.2 Main Menu...

  • Page 8: General Introduction

    GENERAL INTRODUCTION 1.1 Overview The Vecow TGS-1000 Series is an ultra-compact, stackable AI PC powered by ® the all-new hybrid architecture Intel Core™ Ultra Processor. Leveraging three dedicated engines—CPU, GPU, and NPU within a single processor—the TGS- 1000 Series delivers AI-enhanced capabilities and is ideal for AI-accelerated processing, AI-assisted video conferencing, AI-ready immersive gameplay, and 4K streaming.

  • Page 9: Features

    • DC 12V to 24V Power Input, 0°C to 55°C operation • Optional VHub One-Stop AIoT Solution Service supports OpenVINO™ toolkit for AI Computing 1.3 Product Specification 1.3.1 Specifications of TGS-1000 System ® Intel Core™ Ultra 7 165H Processor (16 Cores) Processor ®...
  • Page 10 -40°C to 85°C (-40°F to 185°F) Humidity 5% to 95% Humidity, non-condensing Relative Humidity 95% at 55°C • IEC 61373: 2010 Shock/Vibration • Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests CE, FCC, for TGS-1000 docking module GENERAL INTRODUCTION...

  • Page 11: Specifications Of Tgs-1500

    • 2 DisplayPort 1.4 : Up to 4096 x 2304 @60Hz (By MXM) • 2 USB 3.2 Gen 2 Type A • 1 USB 3.2 Gen 2x2 Type C (5V/3A) • 2 USB 2 Type A Power, HDD ©Vecow TGS-1000 User Manual GENERAL INTRODUCTION...
  • Page 12 Expansion 1 M.2 Key E Socket (2230, PCIe x1/USB) Docking Expansion 2 Expansion Connector for TGS-1000 docking module Power Power Input 24V DC-in Power Interface 3-pin Terminal Block : V+, V-, Frame Ground Others Watchdog Timer Reset : 1 to 255 sec./min. per step Monitoring temperature, voltages.

  • Page 13: Specifications Of Tgs-1550

    • 2 DisplayPort 1.4 : Up to 4096 x 2304 @60Hz (By MXM) • 2 USB 3.2 Gen 2 Type A • 1 USB 3.2 Gen 2x2 Type C (5V/3A) • 2 USB 2 Type A Power, HDD ©Vecow TGS-1000 User Manual GENERAL INTRODUCTION...
  • Page 14 Expansion 1 M.2 Key E Socket (2230, PCIe x1/USB) Power Power Input 24V DC-in Power Interface 3-pin Terminal Block : V+, V-, Frame Ground Others Watchdog Timer Reset : 1 to 255 sec./min. per step Monitoring temperature, voltages. HW Monitor Auto throttling control when CPU overheats.

  • Page 15: Mechanical Dimension

    1.4 Mechanical Dimension 1.4.1 TGS-1000 Mechanical Drawing 147.6 (5.81”) 135.6 (5.34”) 120.0 (4.73”) Unit: mm (inch) 1.4.2 TGS-1500 Mechanical Drawing 147.6 (5.81”) 135.6 (5.34”) 120.0 (4.73”) Unit: mm (inch) ©Vecow TGS-1000 User Manual GENERAL INTRODUCTION...

  • Page 16: Tgs-1550 Mechanical Drawing

    1.4.3 TGS-1550 Mechanical Drawing 120.0 (4.73”) 173.0 (6.81”) Unit: mm (inch) GETTING TO KNOW YOUR TGS-1000...

  • Page 17: Getting To Know Your Tgs-1000

    GETTING TO KNOW YOUR TGS-1000 2.1 Packing List 2.1.1 TGS-1000 Packing List Item Description TGS-1000 Stackable AI PC Item Description Outlook Usage flat head Flat head M3x4L 53-2470000-218 M3x4L Wall-mounting Wall mount 62-03P1688-0FA bracket Terminal block plug DC-IN 51-2411R03-S1B pitch 5.0mm 3-pin ©Vecow TGS-1000 User Manual...

  • Page 18: Tgs-1500/1550 Packing List

    Screw M3 I Head I Head (D=5.0 mm H=1.0 (D=5.0 mm 53-M029800-000 mm) Phillips L H=1.0 mm) =20.5 mm Ni Phillips L =20.5 mm Ni Wall-mounting Wall mount 62-03P1688-0FA bracket Terminal block plug DC-IN 51-2411R03-S1B pitch 5.0mm 3-pin GETTING TO KNOW YOUR TGS-1000...

  • Page 19: Front Panel I/O & Functions

    2.2 Front Panel I/O & Functions 2.2.1 TGS-1000/TGS-1500 Front I/O & Functions In Vecow’s TGS-1000/1500 series family, all I/O connectors are located on the front panel. Most of the general connections to the computer device, such as TypeC, HDMI, are placed on the front panel.

  • Page 20: Power Button

    S3, S5 Suspend to RAM, System off with standby power To power on TGS-1000/1500, please press the power button and then the blue LED is lightened. To power off the system, you can either command shutdown by OS operation, or just simply press the power button.
  • Page 21 DisplayPort 1.4a : Up to 3840 x 2160 @ 60Hz by USB Type-C in the front side of TGS-1000/TGS-1500 series. 2.2.1.5 HDMI Onboard HDMI Port supports DDC channel mode. The connection supports up to 3840 x 2160 resolution at 60Hz. ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...

  • Page 22: Rear Panel I/O & Functions

    2.3 Rear Panel I/O & Functions 2.3.1 TGS-1000/TGS-1500 Rear I/O & Functions In Vecow’s TGS-1000/1500 series family, some of the general connections to the computer device, such as DC-Input power connector, USB2.0/3.2 ports and RJ45 are placed on the rear panel.
  • Page 23 There are 2 USB 3.2 Gen2 ports connection available supporting up to 10GB per second data rate in the front side of TGS-1000/1500. It also compliant with the requirements of Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS).
  • Page 24 Intel I226 RJ45(10/100/1000/2500Mbps) Using suitable RJ-45 cable, you can connect TGS-1000/1500 system to a computer or to any other devices with Ethernet connection, for example, a hub or a switch. Moreover, LAN1 support Wake on LAN and Pre-boot functions. The pinouts of LAN1 is listed as follow : Pin No.
  • Page 25 1000/1500. Onboard Realtek ALC888 audio codec supports 7.1 channel HD ® audio and fully complies with Intel High Definition Audio (Azalia) specifications. To utilize the audio function in Windows platform, you need to install corresponding drivers for Realtek ALC888 codec. ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...

  • Page 26: Main Board Expansion Connectors

    2.4 Main Board Expansion Connectors 2.4.1 TGS-1000/1500 Main Board Top Side View BAT1 M2M_CN1 DDR5_A2 DDR5_A1 JIMVP1 J80P1 M2M_CN2 GETTING TO KNOW YOUR TGS-1000...
  • Page 27 TGS-1000/1500 Main Board Bottom Side View M2E_CN1 CPU_FAN1 LED2 LED1 RST_SW1 ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...
  • Page 28 2.4.3 BAT1 : RTC Battery BAT1 The TGS-1000/1500's real-time clock is powered by a lithium battery. It is equipped with Panasonic BR2032 190mAh lithium battery. It is recommended that you not replace the lithium battery on your own, but if the battery needs to be changed, please contact the Vecow RMA service team.
  • Page 29 M.2 key M connector is suitable for applications that use Host I/Fs supported by either PCIe Module card types include 2242/2280 (Only Support PCIEx4). Signal Name Pin No. Signal Name Ground Ground 3.3V Ground 3.3V PEDET 3.3V Ground Mechanical Key Ground REFCLKp ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...
  • Page 30 PERn1 Ground PETp2 PETn2 Ground PERp2 PERn2 3.3V Ground 3.3V PETp3 3.3V PETn3 3.3V Ground LED1# PERp3 PERn3 Ground 3.3V Ground 3.3V 2.4.5 M2E_CN1 : M.2 key E Slot for USB2.0, PCIe Gen4x1 support M2E_CN1 GETTING TO KNOW YOUR TGS-1000...
  • Page 31 Ground ALERT I2C_CLK Ground I2C_DATA PEWAKE0# CLKREQ0# Ground PERST0# REFCLKn0 REFCLKp0 Ground PERn0 PERp0 Ground PETn0 DEVSLP PETp0 Ground Mechanical Key Ground Ground Ground Ground USB- LED1# USB+ 3.3V Ground 3.3V ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...
  • Page 32 2.4.6 JIMVP1 : VCORE FW Programming Header JIMVP1 PIN NO. Definition Layout SMB_CLK SMB_DATA 2.4.7 CPU_FAN1: CPU FAN Connector CPU_FAN1 Fan power connector supports higher thermal requirements. Definition Definition Layout +12V (1.5A max) Fan speed sensor Fan PWM GETTING TO KNOW YOUR TGS-1000...
  • Page 33 The system’s provide a ESPI Port 80 Header for Debug Card. J80P1 PIN NO. Definition Layout +V3.3S Port 80_ESPI_CS# Port 80_ESPI_IO0 Port 80_ESPI_IO1 Port 80_ESPI_IO2 Port 80_ESPI_IO3 Port 80_ESPI_CLK RST 80_ESPI_RST# ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...

  • Page 34: Main Board Jumper Settings

    2.5 Main Board Jumper Settings 2.5.1 Front View of TGS-1000/1500 Main Board with Jumper Location The figure below is the top view of the TGS-1000/1500 main board. It shows the location of the jumpers. You may configure your card to match the needs of your application by setting jumpers.
  • Page 35 2.5.2 Clear CMOS(JP1) Location Setting Function Layout Normal (Default) Clear CMOS 2.5.3 HDA_SDO1(JP2) Location Setting Function Layout Enable security measures defined in the Flash Descriptor. (Default) Disable Flash Descriptor Security. (override) ©Vecow TGS-1000 User Manual GETTING TO KNOW YOUR TGS-1000...

  • Page 36: System Setup

    SYSTEM SETUP 3.1 Installing DDR5 SO-DIMM Module Step 1 Remove four flat head M3x4L screws and bottom cover. SYSTEM SETUP...
  • Page 37 Step 2 Remove release liner. Step 3 Install DDR5 SO-DIMM. DDR5 SO-DIMM DDR5 SO-DIMM ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 38 Step 4 Remove the release liner from the bottom cover. SYSTEM SETUP...
  • Page 39 Step 5 Install four flat head M3x4L screws to lock bottom cover. ©Vecow TGS-1000 User Manual SYSTEM SETUP...

  • Page 40: Installing

    3.2 Installing M.2 3.2.1 Installing M.2 Key M 2280 Step 1 Remove four flat head M3x4L screws and bottom cover. SYSTEM SETUP...
  • Page 41 Step 2 Remove release liner. Step 3 Install M.2 module (Key M 2280) and fasten I head M3x4L screw. Key M 2280 I Head M3x4L ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 42 Step 4 Remove the release liner from the bottom cover. SYSTEM SETUP...
  • Page 43 Step 5 Install four flat head M3x4L screws to lock bottom cover. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 44 3.2.2 Installing M.2 Key M 2242 Step 1 Remove four flat head M3x4L screws and bottom cover. SYSTEM SETUP...
  • Page 45 Step 2 Remove release liner. Step 3 Install M.2 module (Key M 2242) and fasten I head. Key M 2242 I Head M3x4L ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 46 Step 4 Remove the release liner from the bottom cover. SYSTEM SETUP...
  • Page 47 Step 5 Install four flat head M3x4L screws to lock bottom cover. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 48 3.2.3 Installing M.2 Key E 2230 Step 1 Remove four flat head M3x4L screws and top cover. SYSTEM SETUP...
  • Page 49 Step 2 Remove three I head M2.5x3L screws and fan connector, then take out the fan. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 50 Step 3 Remove release liner. Step 4 Install M.2 module (Key E 2230) and fasten I head M3x4L screw. Key E 2230 I Head M3x4L SYSTEM SETUP...
  • Page 51 Step 5 Install the three I head M2.5x3L screws and the fan connector onto the heatsink. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 52 Step 6 Install four flat head M3x4L screws and top cover. SYSTEM SETUP...

  • Page 53: Installing Antenna Cable

    3.3 Installing Antenna Cable Step 1 Refer to steps 1 through 4 for installing the M.2 Key E 2230. Step 2 Remove hole plug. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 54 Step 3 Install SMA cable , and fasten washer and nut. Step 4 Connect the antenna connector to the M.2 Key E. SYSTEM SETUP...
  • Page 55 Step 5 Install the three I head M2.5x3L screws and the fan connector onto the heatsink. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 56 Step 6 Install four flat head M3x4L screws and top cover. SYSTEM SETUP...

  • Page 57: Dock Your Tgs-100 Series

    3.4 Dock Your TGS-100 Series 3.4.1 Docking TGS-100 Series Step 1 Remove four flat head M3x4L screws and bottom cover of TGS-1000. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 58 Step 2 Remove five flat head M3x4L screws and bottom cover of TGS-100. SYSTEM SETUP...
  • Page 59 Step 3 Replace the thermal pad on the bottom cover from TGS-1000 to TGS-100. Before replacement TGS-1000 Botton cover TGS-100 Botton cover After replacement TGS-1000 Botton cover TGS-100 Botton cover ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 60 Step 4 Install the TGS-100 bottom cover onto TGS-1000 using four flat head M3x4L screws. SYSTEM SETUP...
  • Page 61 Step 5 Install the TGS-1000 bottom cover onto the TGS-100 using five flat head M3x4L screws. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 62 Step 6 Remove hole plug. SYSTEM SETUP...
  • Page 63 Step 7 Install four copper pillars(M3x19.5L) on the TGS-1000. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 64 Step 8 Rotate 180 degrees to change the perspective. Assemble the TGS-1000 and TGS-100 using I Head(M3x4L)screws. SYSTEM SETUP...
  • Page 65 For the following models, if you want to assemble them with the TGS-1000, please refer to the TGS-1000 Docking TGS-101 assembly instructions. Item Module Name Item Module Name TGS-102 TGS-106 TGS-105 TGS-107 3.4.2 Docking TGS-103 Step 1 Remove four flat head M3x4L screws and bottom cover of TGS-1000.
  • Page 66 Step 2 Remove five flat head M3x4L screws and bottom cover of TGS-103. SYSTEM SETUP...
  • Page 67 Step 3 Replace the thermal pad on the bottom cover from TGS-1000 to TGS-103. Before replacement TGS-1000 Botton cover TGS-103 Botton cover After replacement TGS-1000 Botton cover TGS-103 Botton cover ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 68 Step 4 Install the TGS-103 bottom cover onto TGS-1000 using four flat head M3x4L screws. SYSTEM SETUP...
  • Page 69 Step 5 Install the TGS-1000 bottom cover onto the TGS-103 using five flat head M3x4L screws. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 70 Step 6 Remove hole plug. SYSTEM SETUP...
  • Page 71 Step 7 Install four copper pillars(M3x35L) on the TGS-1000. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 72 Step 8 Rotate 180 degrees to change the perspective. Install the TGS-1000 and TGS-103 together with four I head M3x20.5L screws. SYSTEM SETUP...

  • Page 73: Mounting Your Tgs-1000 Series

    3.5 Mounting Your TGS-1000 Series 3.5.1 TGS-1000 Wall mount Step 1 Installing Wall Mount Bracket with the four flat head M3x4L screws. ©Vecow TGS-1000 User Manual SYSTEM SETUP...

  • Page 74: Tgs-1000 Vesa Mount

    3.5.2 TGS-1000 VESA mount Step 1 Mount the VESA on the wall; the screw specification is M4x10L, with a head thickness of less than 7mm. SYSTEM SETUP...
  • Page 75 Step 2 Install the TGS-1000 onto the VESA mount with two Phillips M3x4L. ©Vecow TGS-1000 User Manual SYSTEM SETUP...

  • Page 76: Tgs-1500 Wall Mount

    3.5.3 TGS-1500 Wall mount Step 1 Installing Wall Mount Bracket with the four flat head M3x4L screws. SYSTEM SETUP...

  • Page 77: Tgs-1500 Vesa Mount

    3.5.4 TGS-1500 VESA mount Step 1 Mount the VESA on the wall; the screw specification is M4x10L, with a head thickness of less than 7mm. ©Vecow TGS-1000 User Manual SYSTEM SETUP...
  • Page 78 Step 2 Install the TGS-1500 onto the VESA mount with two Phillips M3x4L. SYSTEM SETUP...

  • Page 79: Wall Mount

    3.5.5 TGS-100 Wall mount Step 1 Installing Wall Mount Bracket with the four flat head M3x4L screws. ©Vecow TGS-1000 User Manual SYSTEM SETUP...

  • Page 80: Vesa Mount

    3.5.6 TGS-100 VESA mount Step 1 Mount the VESA on the wall; the screw specification is M4x10L, with a head thickness of less than 7mm. SYSTEM SETUP...
  • Page 81 Step 2 IInstall the TGS-100 onto the VESA mount with two Phillips M3x4L. ©Vecow TGS-1000 User Manual SYSTEM SETUP...

  • Page 82: Bios And Driver Setup

    BIOS AND DRIVER SETUP 4.1 BIOS Setting 4.1 BIOS Setting Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown.

  • Page 83: Main Menu

    Set the Date. Use Tab to switch between Date elements. Default Ranges : Year : 1998-9999 Months : 1-12 Days : Dependent on month Range of Years may vary. System Time Set the Time. Use Tab to switch between Time elements. ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 84: Advanced Function

    4.3 Advanced Function Figure 4 3 : Advanced Function Select advanced tab to enter advanced BIOS setup options such as CPU configuration, ACPI settings, and Super IO configuration. 4.3.1 CPU Configuration Figure 4 3-1 : CPU Configuration Intel (VMX) Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

  • Page 85: Memory Configuration

    Figure 4 3-2 : CPU - Power Management Control Turbo Mode Enable/Disable processor Turbo Mode. View/Configure Turbo Options View/Configure Turbo Options 4.3.3 Memory Configuration Figure 4 3-3 : Memory Configuration Maximum Memory Frequency Maximum Memory Frequency Selections in Mhz. ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 86: Graphics Configuration

    4.3.4 Graphics Configuration Figure 4 3-4 : Graphics Configuration Primary Display Select AUTO set IGD to be Primary Display if no external Graphics Device connected otherwise external Graphics Device detected on first PCIe port will be Primary Display or Select IGFX for IGD to be Primary Display Or Select HG for Hybrid Gfx.

  • Page 87: Pch-Io Configuration

    Selects TPM device: PTT or dTPM. PTT - Enables PTT in SkuMgr dTPM 1.2 - Disables PTT in SkuMgr Warning ! PTT/dTPM will be disabled and all data saved on it will be lost. ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 88: Trusted Computing

    4.3.10 Trusted Computing Figure 4-3-10 : Trusted Computing Control the TPM device status and display related information if TPM chip is present. 4.3.11 ACPI Settings Figure 4 3-11 : ACPI Settings Enable Hibernation Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems.

  • Page 89: Hardware Monitor

    Note: A device driver is required on OS for high speed serial port function. 4.3.13 Hardware Monitor Display NVMe controller and Drive information. Figure 4-3-13 : Hardware Monitor The IT8659 SIO features an enhanced hardware monitor providing thermal, fan speed, and system voltage status monitoring. ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 90: Network Stack Configuration

    4.3.14 Smart Fan Function Figure 4-3-14 : Smart Fan Function Smart Fan X Mode Smart Fan Mode Select [Automatic Mode/ Software Mode] Fan off temperature limit Fan will off when temperature lower than this limit Fan start temperature limit Fan will work when temperature higher than this limit Fan full speed temperature limit Fan will full speed when temperature higher than this limit Fan start PWM...

  • Page 91: Nvme Configuration

    Display NVMe controller and Drive information. 4.3.17 Module Management Figure 4-3-17 : Module Management Specific device workaround Workaround for specific device. [Disabled / Boot delay / Warm reset / Cold reset] Delay Time 0~255 (second). ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 92: Security Function

    4.4 Security Function Figure 4-4 : Security Function Administrator Password Set administrator password. HDD Security Configuration HDD Security Configuration for selected drive Secure Boot Secure Boot configuration 4.5 Boot Function Figure 4-5 : Boot Function BIOS AND DRIVER SETUP...

  • Page 93: Save & Exit

    Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options. ©Vecow TGS-1000 User Manual BIOS AND DRIVER SETUP...

  • Page 94: Appendix A : Watchdog Function

    APPENDIX A : Watchdog Function A.1 Function Description The TGS-1000 offers a watchdog timer. A.2 Software Package contain Distribution folders include x32 and x64 versions, use the batch file for driver installation. There are included as fallowed : Win10_32.bat, and Win10_64.bat : Installation for driver, and Uninstall_32.bat, and Uninstall_64.bat :...
  • Page 95 A.3 Sample Execute demo tool. Windows Linux Sample, as shown below : Vecow_WDT Appendix A ©Vecow TGS-1000 User Manual...

  • Page 96: Appendix B : Software Functions

    APPENDIX B : Software Functions BOOL get_WDT(DWORD *WDT) Get watchdog timer setup. WDT : watchdog timer setup. Unit : second (Range: 0 ~ 65535 sec, 1093 ~ 65535 min (=65580 ~ 3932100 sec)). Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error, or call by pointer error, or hardware problem). BOOL set_WDT(DWORD WDT) Set watchdog timer setup.

  • Page 97: Appendix C : Raid Functions

    Chipset → System Agent (SA) Configuration → VMD setup menu→ Enable VMD controller → Enabled → Save Changes and Reset. 1. Select System Agent (SA) Configuration. 2. Select the VMD setup menu. 3. Enabled VMD controller. Then Save Changes and Reset. Appendix C ©Vecow TGS-1000 User Manual...
  • Page 98 C.1.2 UEFI Mode for RAID 1. Into BIOS menu again, select Intel(R) Rapid Storage Technology on BIOS menu. Advanced → Intel(R) Rapid Storage Technology. Note : Since each model differs, the following example screenshots are for reference only.) 2. Select Create RAID Volume on the BIOS menu. This system features 1 M.2 Key M Socket (2280, PCIe 4.0 x4) and 1 M.2 Key M Socket (2242, PCIe 4.0 x4) support NVME storage.
  • Page 99 After extraction, a "SetupRST_extracted " folder will be created, and then the folder will be put on the USB drive used for installing Windows. Load the drivers and install them during the Windows installation. Appendix C ©Vecow TGS-1000 User Manual...
  • Page 100 Then you can select the hard drive and install the OS. Appendix C...
  • Page 101 Also, you can find the latest information and software directly from Intel’s website. http://www.intel.com/p/en_US/support/highlights/chpsts/imsm Install "SetupRST.exe" The RAID environment has been done when you completed the steps above. At this point, the basic RAID Volume setup steps have concluded. Appendix C ©Vecow TGS-1000 User Manual...
  • Page 102 C.5 Manage RAID Volume on “Intel® Optane™ Memory and Storage Management” Software ® You can download "Intel Optane™ Memory and Storage Management" to manage and create RAID Volumes. You can find it at Microsoft Store. https://apps.microsoft.com/detail/9MZNG5HZWZ1T?activetab=pivot%3Aovervie wtab&hl=en-us&gl=US After installation, the created RAID Volume will be displayed here. Appendix C...
  • Page 103 C.6 To Create RAID Volume on “Intel® Optane™ Memory and Storage Management” Software You can connect additional SATA devices to build RAID Volumes (If available), ® and use "Intel Optane™ Memory and Storage Management" Software for management. Appendix C ©Vecow TGS-1000 User Manual...

  • Page 104: Appendix D : Power Consumption

    APPENDIX D : Power Consumption Testing Board TGS-1000_9100_9200 RAM: 32GB * 1 USB-1 : (USB 2.0) USB Micsoft Wired Keyboard 600 USB-2 : (USB 2.0) USB Mouse HP G1K28AA USB-3 : (USB 3.0) USB Flash ADATA 3.0 16GB USB-4 : (USB 3.0) USB Flash ADATA 3.0 16GB USB-5 : USB Flash Kingston 3.0 16GB...
  • Page 105 Power on and boot to Win 10 (64-bit) Run 100% CPU Run 100% CPU Power usage with 2D usage with 3D Input Current Consumption Current Consumption ® Intel 3.495A 41.94W 3.603A 43.236W ™ Core Ultra 5 1.777A 42.648W 1.818A 43.632W 135H Appendix D ©Vecow TGS-1000 User Manual...
  • Page 106 D.2 Intel® Core™ Ultra 5 135H 1.7GHz (18M Cache, up to 4.60 GHz) with MXM RTX A2000 Ada Power on and boot to Win 10 (64-bit) Power on and boot to Win 10 (64-bit) Standby Mode Idle status CPU Power Sleep Mode usage less 3% Input...

  • Page 107: Appendix E : Supported Memory & Storage List

    E.2 Supported Non-ECC Memory List Test Temp. Brand Info (Celsius) Transcend 8G DDR5-5600 TS1GSA64V6G 25ºC SO-DIMM Kingston 16G DDR5-5600 SO-DIMM M425RGA3PB0-CWM0D 25ºC SLLINK 32G DDR5 4800 SO-DIMM KSM56T46BS8KM-16HA 25ºC SMART 32G DDR5 4800 SO-DIMM M5S0-BG2OCZQ-H03 25ºC Appendix E ©Vecow TGS-1000 User Manual...
  • Page 108 E.3 Supported ECC Memory List Test Temp. Brand Info (Celsius) Transcend 32G DDR5-5600 ECC TS4GSA72V6E 25ºC SO-DIMM E.4 Supported Storage List Type Vendor Model Capacity 4TG2-P 512GB DGM28-C12DP1KCAEF-H03 G4X4 Innodisk 3TE6 M.2 PCle 512GB DEM28-C12DD1KCCQF-H03 G3X2 TS512GMTE720T G4X4 512GB Transcend TS512GMTE460T 512GB Appendix E...

  • Page 109: Appendix F : Selection And Use Guide

    APPENDIX F : Selection and Use Guide of TGS-100 1. TGS-101 (GPIO) and TGS-102 (DIO) cannot be jointly used and can only be installed at the first expansion layer. TGS-101/102 at first layer TGS-101/102 at second layer Appendix F ©Vecow TGS-1000 User Manual...
  • Page 110 2. For TGS-1000, can support up to 4 expansion layer. Up to 4 layer 3. For TGS-1500, can support up to 2 additional expansion layer. (excludes MXM layer). Up to 2 expansion layer MXM layer Appendix F...
  • Page 111 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2025. All rights reserved.

This manual is also suitable for:

Tgs-1000-165hTgs-1000-135hTgs-1500-165hTgs-1500-135hTgs-1550-165hTgs-1550-135h
