Summary of Contents for CARDIO STRONG TX50

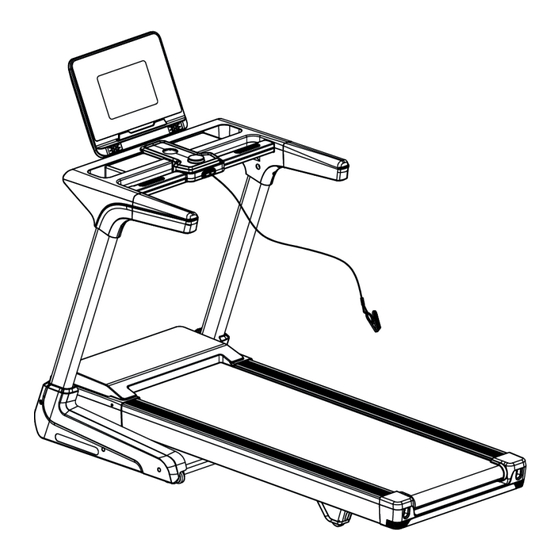

- Page 1 Assembly and Operating Instructions max. 150 kg ~ 30 Min. 93 kg L 188 | B 89 | H 147 FSCSTTX50.04.03 Art.-No. CST-TX50-4 Treadmill TX50...
- Page 2 TX50...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display 3.1.1 Rotary Knob Function Media Management Applications Workout Programmes 3.4.1 Programmes User-defi ned Programmes Hand Pulse Sensors Lubrication Reminder Function Saving Energy Power Switch 3.10 Wireless connection and Fitness Apps... - Page 4 5.4.3 Lubricating the Running Mat Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT TX50...
- Page 5 Dear customer, thank you for choosing fi tness equipment from cardiostrong®. cardiostrong off ers high-quality home fi tness equipment that is optimally adapted to the conditions at home. Train at home no matter what the weather or time of the day. cardiostrong fi tness equipment off ers training programmes and a variety of equipment for all training levels and all training goals.
- Page 6 (person with legal responsibility). Class H (home use): use at home. These stationary training devices are intended for the use in private homes where access to the training device is regulated by the owner (person with legal responsibility). TX50...
- Page 7 Please pay close attention to the safety and maintenance instructions given here. The contract partner cannot be held liable for damage to health, accidents or damage to the equipment when it is not used in accordance with these instructions. The following safety instructions may appear in this manual: ATTENTION This notice indicates potentially hazardous situations which, if not avoided, may result in property damage.
-
Page 8: General Information
18 mm Running mat size in cm (L x W): 150 x 51 Motor: Minimum speed: 0.8 km/h Maximum speed: 20 km/h Speed interval: 0.1 km/h Incline: 0 % - 15 % Incline interval: Mains supply: Motor type: Use class: TX50... -
Page 9: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly aff ected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 10: Electrical Safety
The software systems on gym equipment with TFT consoles are set up only for the pre- installed apps. Do not install any additional apps. NOTICE The pre-installed apps on TFT consoles are produced and provided by external manufacturers. Fitshop does not take any responsibility for the availability, functionality or contents of these apps. TX50... -
Page 11: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. ⚠ CAUTION Make sure that there is a safety area behind the treadmill with a length of at least 2 m and a width at least equal to the width of the treadmill. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 12: Assembly
To prevent damage to the equipment and the fl oor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. TX50... -
Page 13: Scope Of Delivery
Scope of Delivery ⚠ WARNING There is a transportation lock that prevents the treadmill from opening during transport. This transportation lock must be removed before assembly. The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. -
Page 14: Assembly
Acrobat Reader programme must be installed on your end device in order to open the fi le. Step 1: Removing the Packaging Remove the main frame (A) and the console (B) from the packaging. Inspect the components for damage and completeness. TX50... - Page 15 Step 2: Folding out the Upright Tubes Fold the left and right upright tube (A06 & A07) into a vertical position. Secure the position of the left and right upright tube (A06 & A07) on the sides with one bolt (D07) and one washer (D28) each.
- Page 16 Take care not to pinch the cable. Secure the console (B) to the left and right upright tube (A06 & A07) with two bolts (D12), two spring washers (D29) and two washers (D32) each. Use the Allen key (B06). Tighten all screws fi rmly. TX50...
- Page 17 Step 4: Removing the fi rst Transport Lock Cut through the transport lock. CAUTION Material damage due to incorrect tools Do not use a carpet knife for cutting. Material damage may result. Use safety scissors to release the transport lock.
- Page 18 Step 5: Removing the second Transport Lock Loosen the transport lock (a) on the lower side of the treadmill belt. Use the Allen key (B05). TX50...
- Page 19 Step 6: Attaching the Covers Attach the left and right upright tube cover (C07 & C08) to the side of the treadmill with three bolts (D39) each. Use the screwdriver (B04).
- Page 20 Step 7: Attaching the EMERGENCY STOP Key Attach the EMERGENCY STOP Key (C19) to the console. Ensure that all screws are tightened. → The treadmill is now fully assembled. TX50...
- Page 21 Step 8: Alignment of the feet If the fl oor is uneven, you can stabilize the treadmill by adjusting the adjustable foot pad (C30) on the main frame. ⚠ WARNING The treadmill is equipped with high-pressure shock absorbers that can cause the treadmill to suddenly open if handled incorrectly.
-
Page 22: Operating Instructions
To enable the safety key to detach from the contact point of the cockpit in the event of a fall, the safety key clip must be fi rmly attached to your clothing! Make sure that the safety key is not accessible to children. TX50... -
Page 23: Console Display
Console Display Knob/button Function INSTANT INCLINE To set the incline, press the shortcut keys 2-10. INCLINE + To increase the incline, press this button. The maximum is 15%. INCLINE - To reduce the incline, press this button. HOME To go to the main page, press this button START To start the device, press this button. -
Page 24: Rotary Knob Function
Tap on the desired application to select it. Tap the icon in the middle of the console to open the application. NOTICE Make sure that you are connected to the Internet before using Internet-based applications. TX50... - Page 25 Web: The web application provides an overview of the available apps such as Netfl ix, YouTube, etc. Music: The Music application allows you to play music. Displays the music that you have connected via the USB stick. Movie: The Movie application allows you to play videos. Displays the videos that you have connected via the USB stick.
-
Page 26: Workout Programmes
Once the target value has been reached, the training session ends. Cardio test: Test to determine your fi tness level Set the time. To start the test, tap on “start”. When the test is complete, an overview of your values is displayed. TX50... - Page 27 NOTICE Please note that the test cannot replace a medical examination. → Once the target value has been reached, the training programme ends. Hills: Incline programme Set the time. To start the training programme, tap “start”. The programme consists of segments with diff erent incline values. →...
- Page 28 To start the training programme, tap “start”. The programme consists of several segments with diff erent intensities. → Once the distance has been reached, the training session ends. Special Training-2: Run against a virtual opponent Set the time. To start the training programme, tap “start”. TX50...
- Page 29 The programme consists of several segments with diff erent intensities. → Once the distance has been reached, the training session ends. Special Training-3: Run against a virtual opponent Set the time. To start the training programme, tap “start”. The programme consists of several segments with diff erent intensities. →...
- Page 30 Once the distance has been reached, the training session ends. Outdoor Running-3: Run against a virtual opponent Set the time. To start the training programme, tap “start”. The programme consists of several segments with diff erent intensities. → Once the distance has been reached, the training session ends. TX50...
- Page 31 Programme Overview Time TIME INTERVAL=setting time/16 TIME PROG Prog Incline Cadio test Speed Incline Hills Speed Incline Fitness Test Speed Incline Cross Country Speed 10,5 10,5 Incline Lose weight Speed Incline Interval training Speed Incline Speed Drill Speed Incline Hill and Back Speed Incline Power Walk...
-
Page 32: User-Defi Ned Programmes
The treadmill switches to standby mode after 5 minutes of inactivity. NOTICE A message appears before the treadmill switches to standby mode. 3.10 Standby Mode NOTICE If you are in standby mode, you must pull out the safety key and insert it again to start the treadmill. TX50... -
Page 33: Power Switch
3.11 Power Switch The on/off switch is located on the back of the treadmill. NOTICE Switch the treadmill off if you are not using it for a longer period of time. -
Page 34: Wireless Connection And Fitness Apps
Just follow the instructions on the screen to perform the update. Please note: The system is set up only for the pre-installed apps. Do not install any additional apps as their proper functionality can not be guaranteed. The installation of other apps might cause technical issues. Example: Kinomap TX50... -
Page 35: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ATTENTION Make sure that the equipment is protected from moisture, dust and dirt in the selected storage location. -
Page 36: Folding Up The Treadmill
To release the hydraulic brake lock, use your left foot to push the upper part of the hydraulic brake slightly forward until the lock releases and the treadmill can be pulled back. Keep holding the treadmill. The hydraulic brake lowers itself gently downwards. Once the treadmill has lowered 2⁄3, you can let go of the treadmill. TX50... -
Page 37: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. ⚠ CAUTION Damaged or worn components may aff ect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 38: Error Codes And Troubleshooting
Error Codes and Troubleshooting The electronics of the equipment continuously carries out tests. In case of deviations, an error code appears on the display and normal operation is stopped for your safety. Please contact the contract partner for technical support. TX50... -
Page 39: Care And Maintenance
Care and Maintenance The most important maintenance measure is the care of the running mat. This includes adjustment, re tensioning and lubrication of the running mat. Damage resulting from insuffi cient or neglected care is not covered by the warranty. You should therefore carry out maintenance checks at regular intervals. -
Page 40: Re-Tensioning The Running Mat
Continue turning the belt by hand so that the entire surface between the endless belt and the running plate is lubricated. Wipe off the excess silicone oil or silicone spray. NOTICE This maintenance must also be carried out after prolonged non-use of the equipment. TX50... -
Page 41: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specifi ed intervals: Part Weekly Monthly Quarterly Display console Tension of the running mat... -
Page 42: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap fl oor mat chest strap contact gel silicone spray handrails TX50... -
Page 43: Ordering Spare Parts
The serial number of your equipment is unique. It’s located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate fi eld. Serial number: Brand / Category: Cardiostrong / treadmill Model Name: Treadmill TX50 Article Number: CST-TX50-4... -
Page 44: Parts List
Motor top cover Motor bottom cover Back end cover Adjustable wheel cover Side rail Panel turning sleeve Left upright tube cover Right upright tube cover Console top cover Console bottom cover Console left side cover Console right side cover TX50... - Page 45 Left handle bar Right handle bar Console cover adapter block Panel top cover Panel bottom cover Holder Safety key clip Side rail tension seat Running belt Cushion Cushion Wheel Adjustable wheel Plastic gasket Ring protective plug Foot pad Cylindrical cushion Adjustable foot pad Safety key base Safety key...
- Page 46 ST4.2*12 Screw ST4.2*12 Screw ST2.9*8 Lock washer Lock washer Lock washer Spring washer Big washer "φ10*φ 26*2.0" Screw ST4.2*20 Flat washer Screw ST2.0*6 Bolt M10*3 Screw ST2.9*16 Lock washer Spring washer Screw ST4.2*30 Bolt M5*10 DC motor Incline motor TX50...
- Page 47 Switch on-off Power socket Overload protector Magnetic ring Magnetic core Power wire AC signal wire 200 brown AC signal wire 350 brown AC signal wire 350 blue Ground wire Running board Console Control board Left touch button board Right touch button board Switch knob Console top signal wire "Console middle signal wire"...
- Page 48 Inductance AC signal wire ( L 350) Ground wire ( L 350) Screw ST4.2*12 Wireless charging adapter board "Wireless charging adapter board wire" Screw Wireless pulse connecting wire POLAR wireless receiver USB module USB connecting wire USB charging wire TX50...
-
Page 49: Exploded Drawing
Exploded Drawing... - Page 50 TX50...
-
Page 52: Warranty
Ownership of equipment or parts of equipment which have been replaced is transferred to us. The warranty period is not extended nor does a new warranty period begin following repair or replacement under the warranty. TX50... - Page 53 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 54: Contact
Sie unserer Homepage: Sie unserer Homepage: https://stg.fi t/statit6 https://stg.fi t/statitb https://stg.fi t/statit9 Please fi nd a detailed overview including address and opening hours for all stores of the Fitshop Group in Germany and abroad on the following website: www.fi tshop.com/en/stores TX50... - Page 55 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Fitshop is Europe’s largest specialist store for www.fi tshop.co.uk home fi tness equipment with currently over 70 www.fi tshop.de/blog stores and one of the world’s most renowned online mail order companies for fi tness equipment.
- Page 56 Notes TX50...
- Page 57 Notes...
- Page 58 Notes TX50...
- Page 60 Treadmill TX50...
