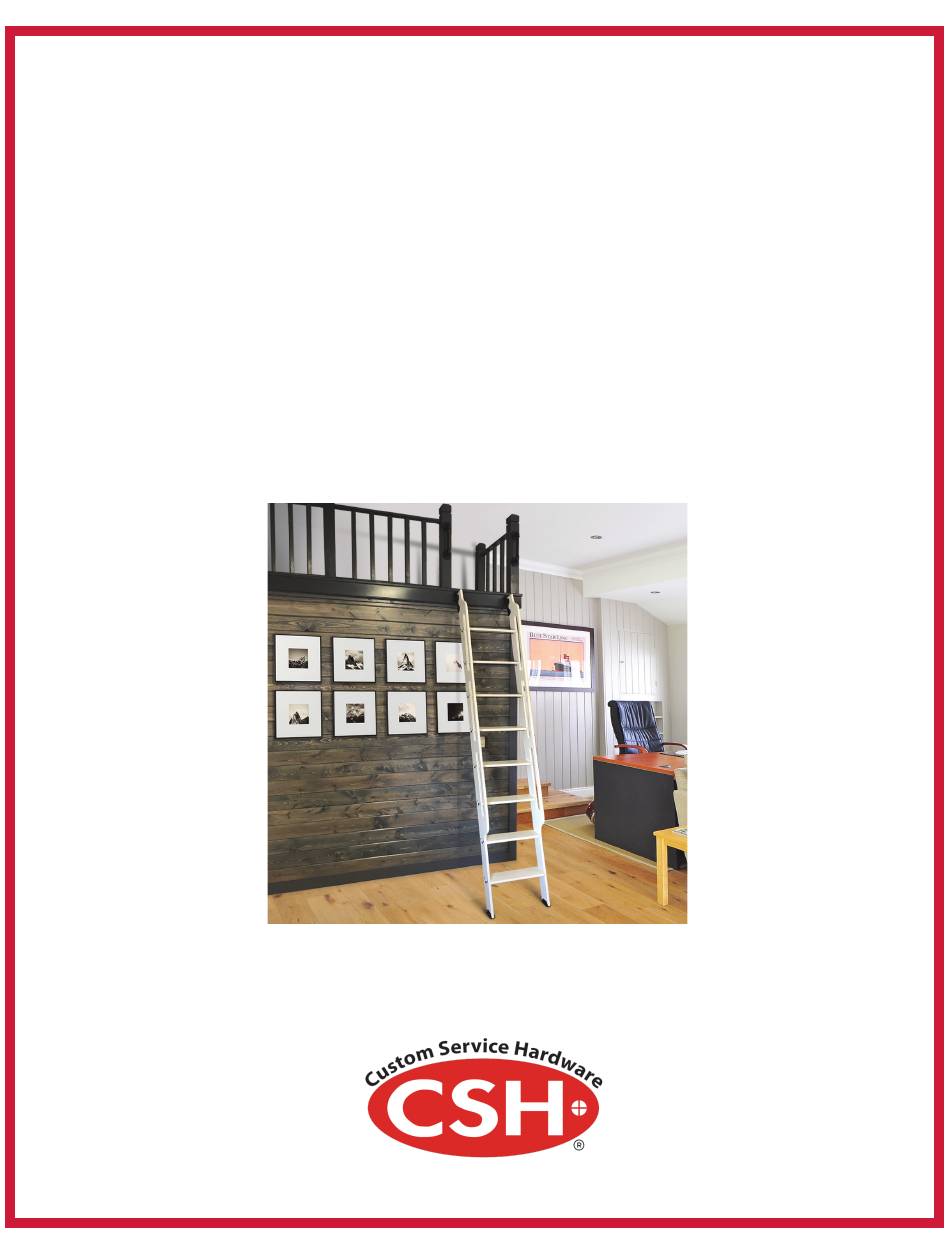

- Page 1 INSTRUCTION MANUAL for Installing STATIONARY LOFT LADDER HARDWARE QG.830 Series...
- Page 2 Instruction Manual for Installing Stationary Loft Ladder Hardware Shown: QG.830.08 Installation Tools Needed: 5mm and 4mm wrenches Step 1: Calculating ladder length and clearances • All ladders using the Stationary Loft Hardware are custom, made-to-order ladders. • On all custom Stationary Loft Ladders, the top step will be 10” down from the top of the ladder. All other steps (except the bottom step) will be 11-1/2”...
- Page 3 Figure 1a Figure 1b Stored Position Climbing Position...
- Page 4 Step 2: Installing the Sliding Upper Guide Hardware to the Ladder 1. On the back edge of both the ladder side rails, measure down ¾” down from the tip of the ladder and scribe a straight line ( see figure 3a and 3b) . 2.
- Page 5 5. Complete the installation of the Sliding Upper Guide to the ladder using the ¼” x 20 bolts and acorn nuts by following the procedure below . Using a ¼” drill bit and the holes in the top roller guide as a drill guide, drill a ¼” hole halfway through the thickness of the ladder slide rail.
- Page 6 Step 3: Installing the Bottom Foot on the Ladder 1. From the back edge of the ladder side rails, draw a line on the bottom of the rail ¼” in from the edge (see figure 6) . Figure 6 2. Align the back edge of bottom foot hardware to the scribed line, pushing the bottom foot hardware tight and flush to the bottom surface of the ladder (see figure 7) .
- Page 7 Step 4: Installing the Ladder onto the Header Board of the Loft 1. Align the ladder in the desired position in front of the opening to the loft. 2. Stand the ladder upright in the vertical stored position (see figure 9) and using the supplied #10 x ¾...
- Page 8 Measurements for Flat Plate Stationary Ladder Hardware Flat Plate Dimensions 3 3/8” overall height 2” cc ” cc ” overall width Pin to attach Sliding upper Guide to Flat Plate Sliding Upper Guide Flat Plate...
- Page 9 QuietGlide Ladder Dimensional Specification Stationary Loft Ladder Application Notes: All ladders are custom cut to length Sanded to 180 grit Material: Select or Better, Flat cut 12° (Bottom) ” R Bullnose Variable 11.43 Dado 0.830 +/- 0.005 x 0.25 deep 12°...
- Page 10 Application Photos of Rolling Ladders...
- Page 11 Also available from CSH: Mini Barn Doors InvisiDoors Rolling Barn Doors N169W21008 Meadow Ln. Jackson WI, 53037 (262) 262) 365-7960 cshardware.com REV. 5.16.23...
