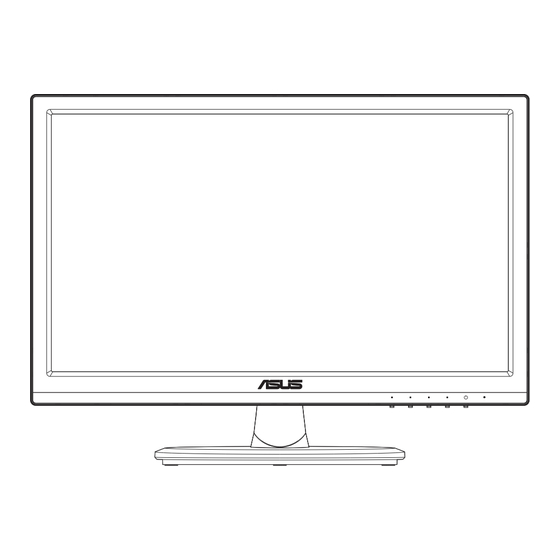

VT169HE Series
LCD Monitor
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT169HE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Asus VT169HE Series

Summary of Contents for Asus VT169HE Series

  • Page 1 VT169HE Series LCD Monitor User Guide...

  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Tco Certified

    TCO certified A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.

  • Page 4: Notices

    Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003.

  • Page 5: Declaration Of Conformity

    NOTE: This monitor is ENERGY STAR certified. This product qualifies for ENERGY STAR in the factory default setting which can be restored by “Factory Reset” function in the OSD menu. Changing the factory default settings or enabling other features may increase power consumption that could exceed the ENERGY STAR specified limits. Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union. WEEE Symbol Statement This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product. EEE yönetmeliğine uygundur...

  • Page 6: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extention cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges. •...
  • Page 7 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures. Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum). If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature. Stability Hazard. The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions. A product may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such ALWAYS use cabinets or stands or installation methods recommended by the manufacturer of the product set. ALWAYS use furniture that can safely support the product. ALWAYS ensure the product is not overhanging the edge of the supporting furniture. ALWAYS educate children about the dangers of climbing on furniture to reach the product or its controls. ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled or grabbed. NEVER place a product in an unstable location. NEVER place the product on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support. NEVER place the product on cloth or other materials that may be located between the product and supporting furniture. NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the product or furniture on which the product is placed. If the existing product is going to be retained and relocated, the same considerations as above should be applied.
  • Page 8 ASUS CONTACT INFORMATION ASUSTeK Computer Inc. ASUS Computer International (America) ASUS Computer GmbH (Germany and Austria) Address 1F, No.15, Address 48720 Kato Rd, Fremont, Address Harkortstr. 21-23 Lide Rd., Beitou Dist., CA 94538, USA...

  • Page 9: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor: • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears. • You may find slightly uneven brightness on the screen depending on the desktop pattern you use. • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours. • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself! Conventions used in this guide WARNING: Information to prevent injury to yourself when trying to complete a task.
  • Page 10 Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package. Protect your eyes with ASUS EYE CARE Monitors The latest ASUS monitors feature exclusive Blue Light Filter and Flicker free technologies to keep your eyes healthy in today’s digital world. Refer to https://www.asus.com/Microsite/display/eye_care_technology/ Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detail recycling information in different region. Product information for EU energy label...

  • Page 11: Welcome

    Welcome! ® Thank you for purchasing the ASUS VT169HE Series LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VT169HE Series brings you! Package contents Check your VT169HE Series LCD package for the following items: LCD monitor Monitor base Quick start guide 1 x Power cord 1 x VGA cable (optional) 1 x HDMI cable (optional) 1 x USB cable (optional) 1 x Warranty card If any of the above items is damaged or missing, contact your retailer immediately. ASUS LCD Monitor VT169HE...

  • Page 12: Assembling The Monitor Base

    Assembling the monitor base To assemble the monitor base: Place the display on a cloth on the table. Then attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers. Adjust the monitor to the angle that is most comfortable for you. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. *Base screw size ： M6 x 13mm Connecting cables To connect cables: Connect the cables you need based on chapter 1.5.2, page1-4. Chapter 1: Product Introduction...

  • Page 13: Monitor Introduction

    Monitor introduction 1.5.1 Front of the LCD monitor Energy Saving key: • This is a Energy Saving key. Input Select: • Input Select: Use this hotkey to switch from input signal. Close Button: • Exit the OSD menu. MENU Button: • Press this button to enter the OSD menu. Power Button: • Press this button to turn the monitor on/off. Power Indicator: • The color definition of the power indicator is as the table below. Status Description White Amber Standby mode ASUS LCD Monitor VT169HE...

  • Page 14: Rear Of The Lcd Monitor

    1.5.2 Rear of the LCD monitor HDMI AC-IN port HDMI port VGA port USB 2.0 port Control buttons Kensington Lock Screw holes for VESA Wall Mount Chapter 1: Product Introduction...

  • Page 15: Detaching The Base/Stand(For Vesa Wall Mount)

    Detaching the base/stand (for VESA wall mount) The detachable stand of the LCD monitor is specially designed for VESA wall mount. To detach the arm/stand: Disconnect power and signal cables. Carefully put the front of the monitor face down on a clean table. Use your finger to loosen the screw located at the bottom of the base, and remove the base from the stand. And then remove the hinge cover from monitor body by using your fingers. Use a screwdriver to remove the four screws on the arm, and then detach the arm/stand from the monitor. • W e recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • H old the stand of the monitor while removing the screws. • The VESA wall mount kit ( 75 x 75 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/ load 4.8kg according to the model listed in the specification table (Screw size: M4 x 10 mm). ASUS LCD Monitor VT169HE...

  • Page 16: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. • You can adjust the monitor’s angle from -5˚ to 30˚. • Do not touch the Touch screen when you change the angle. It may cause damage or break the Touch screen and LCD screen. -5 ~ 30 Chapter 2: Setup...

  • Page 17: Touch Operation

    Touch Operation • ASUS VT169HE is a touch monitor which uses 10 point touch panel technology. Please use with latest OS like Windows 10. • You can use either single finger touch, or multi-finger touch up to maximum simultaneous 10 touch points. 10-Point Touch • To activate touch functionality, you need to connect the display with the provided USB type B cable to your computer. • You do not need to install any other software. • ASUS VT169HE offers you groovy touch gestures like tap, grab, pinch, rotate, zoom, swipe, etc. The gestures allow you to launch programs and access the setting of your ASUS VT169HE Display. The functions can be activated by using the hand gestures to ASUS VT169HE. ASUS LCD Monitor VT169HE...
  • Page 18 Left edge swipe (on Windows 7/8/8.1/10/11 only) Swipe from the left edge of the screen to shuffle your running apps. Right edge swipe (on Windows 7/8/8.1/10/11 only) Swipe from the right edge of the screen to launch the Charm bar. Finger slide (on Windows 7/8/8.1/10/11 only) Slide your finger to scroll up and down and slide your finger to pan the screen left or right. Chapter 3: Touch operation...
  • Page 19 Zoom out Bring together your two fingers on the touch panel. Zoom in Spread apart your two fingers on the touch panel. Single Tap/Double tap Single Tap Touch the target on the screen with one fingertip for one quick tap, then release. ASUS LCD Monitor VT169HE...
  • Page 20 Double Tap Touch the target on the screen with one fingertip for two quick taps, then release. Tap an app to launch it (on Windows 7/8/8.1/10/11 only). Double-tap an item to launch it. Tap and hold To move an app, tap and hold the app tile and drag it to a new location. To close an app (on Windows 7/8/8.1/10/11 only), tap and hold the top side of the running app and drag it down to the bottom of the screen to close it. Chapter 3: Touch operation...
  • Page 21 NOTE: • You can access to OS website to get more description on touch operation. • Do not touch the screen with sharp objects, it may result in damage, and void warranty. • Do not push hard, or rest anything on the glass surface (if in horizontal position) as it will damage the screen and void warranty. • Please keep your hands clean and dry before touching the screen to ensure fluid touch operation. • The touch function works only on OS and applications which support touch functions. ASUS LCD Monitor VT169HE...

  • Page 22: Osd (On-Screen Display) Menu

    OSD (On-Screen Display) menu 4.1.1 How to reconfigure ASUS VT169 Splendid Standard Mode HDMI 1920x1080 @ 60Hz Standard Mode sRGB Mode Scenery Mode Theater Mode Game Mode Night View Mode Reading Mode Darkroom Mode Press the [MENU] button to activate the OSD menu. Press  and  buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted. To select the highlighted item on the menu press the button. Press  and  buttons to select the desired parameter.

  • Page 23: Osd Function Introduction

    • Scenery Mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Enhancement. • Theater Mode: This is the best choice for movie watching with SPLENDID™ Video Enhancement. • Game Mode: This is the best choice for game playing with SPLENDID™ Video Enhancement. • Night View Mode: This is the best choice for playing dark- scene game or watching movie with SPLENDID™ Video Enhancement. • Reading Mode : This is the best choice for book reading. • Darkroom Mode : This is the best choice for a weak ambient light environmen. In the Standard Mode, the Saturation, Skin Tone, Sharpness, and ASCR functions are not user-configurable. In the sRGB, the Brightness, Contrast, Saturation, Color Temp., Skin Tone, Sharpness, and ASCR functions are not user- configurable. ASUS LCD Monitor VT169HE...
  • Page 24 EyeCare ASUS VT169 EyeCare Standard Mode HDMI 1920x1080 @ 60Hz Blue Light Filter Rest Reminder Color Augmentation • Blue Light Filter: In this function, you can adjust the blue light filter from 0 to max. 0: no changes；Max: The higher the level, the less blue light is scattered. When blue light filter is activated, the default settings of Standard Mode will be automatically imported. Besides maximum level, the brightness is user- configurable. Maximum is the optimized setting. It is compliance with TUV low blue light certification*. The brightness function is not user configurable. • When the user adjusts blue light filter bar to maximum level. • *When color augmentation is in default value (50). Chapter 4: General Instruction...
  • Page 25 Please refer to the following to alleviate eye strains: • Users should take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 mins) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a single longer break. • To minimize eye strain and dryness in your eyes, users should rest the eye periodically by focusing on objects that are far away. • Eye exercises can help to reduces eye strain. Repeat these exercises often. If eye strain continues please consult a physician. Eye exercises: (1) Repeating look up and down (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). • Rest Reminder: This function provides you a rest reminder according to how long you set for your working time. For example, a user sets 60 minutes working time and there will be a pop up reminder appeared on the upper left corner of the monitor for 5 seconds. Press any key to make this reminder OSD disappeared. • When this function is enable, the following functions are not available: Splendid Demo Mode, GamePlus and QuickFit. • Color Augmentation: The adjusting range of color enhancement is from 0 to 100. • This function is not available in sRGB mode under Splendid. ASUS LCD Monitor VT169HE...
  • Page 26 Color Select the image color you like from this function. ASUS VT169 Color Standard Mode HDMI 1920x1080 @ 60Hz Brightness Contrast Saturation Color Temp. • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100. • Saturation: The adjusting range is from 0 to 100. • Color Temp.: Contain three preset color modes (Cool, Normal, Warm) and one User Mode. In the User Mode, colors of R (Red), G (Green), and B (Blue) are userconfigurable; the adjusting range is from 0 ~ 100. Chapter 4: General Instruction...
  • Page 27 Aspect Control ASCR Position Focus Auto Adjust • Sharpness: Adjust the picture sharpness. The adjusting range is from 0 to 100. (Only disable for selecting “Standard Mode” and “sRGB Mode” in Splendid menu.) • Trace Free: Speeds up the response time by Over Drive technology. The adjusting range is from lower 0 to faster 100. • Aspect Control: Adjust the aspect ratio to “Full”, “4:3”. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function. (ASCR: ASUS Smart Contrast Ratio. Disabled at “Standard Mode”, “sRGB Mode” and “Reading Mode.) • Position: Adjust the horizontal postition (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100. (Only available for VGA input.) • Focus: Reduce Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100. (Only available for VGA input.) • Auto Adjust: Automatically adjust the image to its optimized position, clock, and phase. (Only available for VGA input.) 4:3 is only available when input source is in 4:3 format. ASUS LCD Monitor VT169HE...

  • Page 28: Input Select

    Input Select Select the input source from VGA, HDMI. ASUS VT169 Input Select Standard Mode HDMI 1920x1080 @ 60Hz HDMI Auto Detection System Setup Adjust the system configuration. ASUS VT169 System Setup Standard Mode HDMI 1920x1080 @ 60Hz Touch Screen GamePlus QuickFit Power Saving OSD Setup Language Key Lock...
  • Page 29 To active GamePlus: • Select ON to enter the GamePlus main menu. • Press and to select between Chrosshair and Timer function. • Press to confirm the function you choose. Press to go back. Press to go off, and exit. GamePlus main menu GamePlus-Crosshair GamePlus Crosshair Timer (Practice Mode) GamePlus-Timer • QuickFit: Contains two patterns: (1) Grid (2) Photo size. Grid patterns:The grid patterns facilitate designers and users to organize content and layout on a page and achieve a consistent look and feel. Alignment Grid1 Alignment Grid2 Photo size:The various real photo sizes displayed in the QuickFit function provides photographers and other users to accurately view and edit their photos in real size on the screen. ASUS LCD Monitor VT169HE...
  • Page 30 • Power Saving: Reduces power consumption. The default setting is “Deep Level”. When “Deep Level” is selected, the maximum brightness value is fixed and Splendid mode is fixed at “Standard Mode”. • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croatia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian, Ukrainian, Vietnamese. • Key Lock: Disable all key functions. Pressing the second button on the right for more than five seconds to disable key lock function. • More: Return the next page of System Setup. • Back: Return the previous page of System Setup.
  • Page 31 Shortcut Selecting this option allows you to set one shortcut key. ASUS VT169 Shortcut Standard Mode HDMI 1920x1080 @ 60Hz Shortcut 1 Shortcut 2 • Shortcut 1: User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Contrast”, “Input Select”, “Color Temp.”, “QuickFit”, “More”, “Back”, “GamePlus”, “Rest Reminder”, “Color Augmentation”, “Energy Saving” and set as shortcut key. The default setting is Brightness. • Shortcut 2: User can select from “Blue Light Filter” “Splendid”, “Brightness”, “Contrast”, “Input Select”, “Color Temp.”, “QuickFit”, “More”, “Back”, “GamePlus”, “Rest Reminder”, “Color Augmentation”, “Energy Saving” and set as shortcut key. The default setting is Energy Saving. ASUS LCD Monitor VT169HE 4-10...

  • Page 32: Specifications

    Specifications Model VT169HE Panel Size 15.6”W(39.62 cm) Max. Resolution 1920 x 1080 Brightness (Typ.) 220cd/m Intrisinc Contrast Ratio 1000:1 (Typ.) Viewing Angle (CR=10) ≧170°(H) / ≧170°(V) (Typ.) Display Colors 262,144 Response Time(Typ.) HDMI input Yes D-Sub input Yes USB port Yes (Touch function only) Power ON Consumption 7.38 W** Power Saving Mode < 0.5 W Power OFF Mode < 0.3 W Tilt -5° ~ +30° VESA Wall Mounting Yes (75mm x 75mm) Phys. Dimension (WxHxD) 377.8 x 280.7 x 189.4mm Box Dimension (WxHxD) 434 x 350 x 122mm Net Weight (Esti.)

  • Page 33: Troubleshooting (Faq)

    • Adjust the Contrast and Brightness settings via OSD. Screen image is not centered or • Press the auto button to automatically adjust the sized properly image. • Adjust the H-Position or V-Position settings via OSD. Screen image bounces or a wave • Make sure the signal cable is properly connected to pattern is present in the image the monitor and the computer. • Move electrical devices that may cause electrical interference. Screen image has color defects • Inspect the signal cable and make sure that none of (white does not look white) the pins are bent. • Perform Reset via OSD. • Adjust the R/G/B color settings or select the Color Temperature via OSD. Screen image is blurry or fuzzy • Press the auto button to automatically adjust the image (for VGA mode only). • Adjust the Phase and Clock settings via OSD. ASUS LCD Monitor VT169HE 4-12...

  • Page 34: Supported Timing List

    Supported Timing List Supported Primary Timing Timing Resolution HDMI1.4 640x480-60Hz 800x600-60Hz 1024x768-60Hz 1280x720-60Hz PC Timing 1280x960-60Hz 1280x1024-60Hz 1600x1200-60Hz 1920x1080-60Hz 640x480P-60Hz 720x480P-60Hz Video Timing 1280x720P-60Hz 1920x1080P-60Hz 16:9 Timing Timing Resolution HDMI1.4 Detail Timing 1920x1080-60Hz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables.
