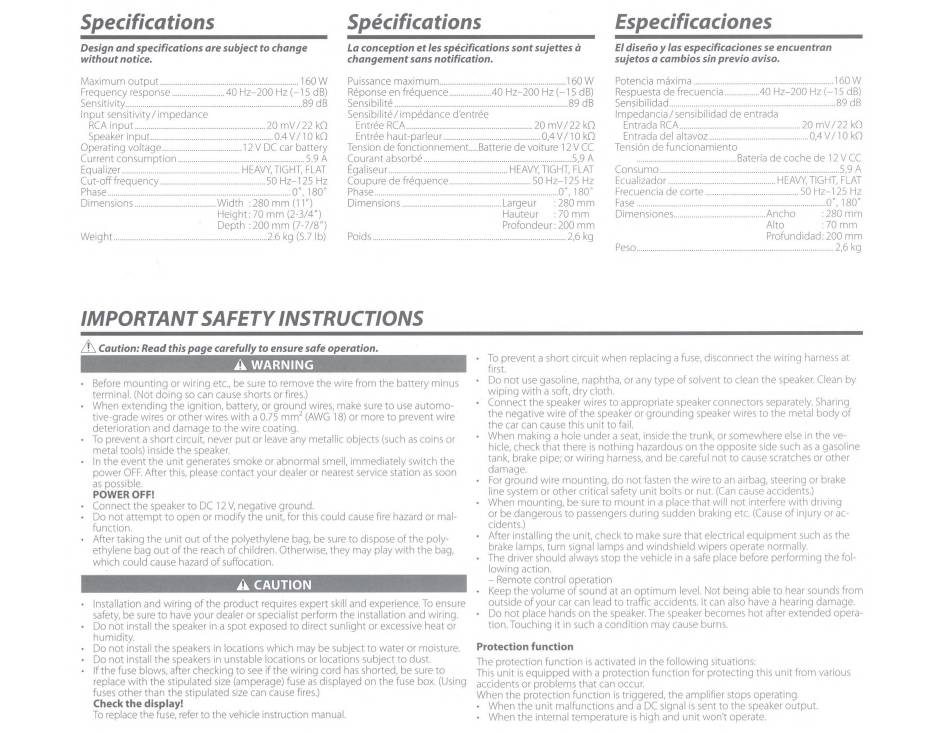

Specifications Specifications Especificaciones
Design and specifications are subject to change
without notice.
La conception et /es specifications sont sujettes
a
changement sans notification.
El diseiio y las especificaciones se encuentran
sujetos a cambios sin previo aviso.
Maximum output............ . ....................................... 160W Puissance maximum ............................................................... 160 W
Potencia maxima................. . ......................................... 160
w
Frequency response ........................ .40 Hz-200 Hz (- 15 dB) Reponse en frequence ................. ..40 Hz-200 Hz (-15 dB)
Respuesta de frecuencia ............... ..40 Hz-200 Hz (-15 dB)
Sensitivity .................................................................... 89 dB Sensibilite ...... . .............................................................. 89 dB
Sensibilidad ... . ......... .. . ......... 89 dB
Input sensitivity/ impedance Sensibilite / impedance d'entree lmpedancia / sensibilidad de entrada
RCA input ................................................. 20 mV
I
22 kO En tree RCA ................................................................ 20 mV
I
22 kO Entrada RCA........................ . ........... 20 mV
I
22 kO
Speaker input .................. 0.4 V / 10 kO En tree haut-parleur .................................................. 0,4 V / 10 kO Entrada del altavoz ......... . ........... 0,4 V / 10 kO
Operating voltage.................. . ........... 12 V DC car battery Tension de fonctionnement... .. Batterie de voiture 12 V CC
Tension de funcionamiento
Current consumption......... . .................... 5.9 A Courant absorbe ....... .5,9 A
.............................. Baterfa de coche de 12 V CC
Equalizer......... . .......................... HEAVY, TIGHT, FLAT Egaliseur ........................................................... HEAVY, TIGHT, FLAT
Consumo ......... . .................................... .5,9 A
Cut-off frequency... . .... 50 Hz-125 Hz Coupure de frequence. ... ..... . ................... 50 Hz-125 Hz Ecualizador ................ HEAVY, TIGHT, FLAT
Phase .............................................................. o·, 180° Phase..................... . .............................. o·, 1 so · Frecuencia de corte ........ . ........ 50 Hz- 125 Hz
Dimensions. . ................... .Width : 280 mm (11 ")
Height 70 mm (2-3/4")
Depth: 200 mm (7-7/8")
Dimensions ........................ . ..... Largeur : 280 mm Fase .............................. o· , 1so·
Hauteur : 70 mm Dimensiones ............ Ancho : 280 mm
Profondeur: 200 mm
Alto :70 mm
Weight ................................................ 2.6 kg (5.7 lb) Poids .............................................................. 2,6 kg
Profundidad: 200 mm
IMPORTANT SAFETY INSTRUCTIONS
Lt,
Caution: Read this page carefully to ensure safe operation.
A
WARNING
Before mounting or wiring etc., be sure to remove the wire from the battery minus
terminal. (Not doing so can cause shorts or fires.)
When extending the ignition, battery, or ground wires, make sure to use automo-
tive-grade wires or other wires with a 0.75 mm
2
(AWG 18) or more to prevent wire
deterioration and damage to the wire coating.
To
prevent a short circuit, never put or leave any metallic objects (such as coins or
metal tools) inside the speaker.
In the event the unit generates smoke or abnormal smell, immediately switch the
power OFF. After this, please contact your dealer or nearest service station as soon
as possible.
POWER OFF!
Connect the speaker to DC 12 V, negative ground.
Do not attempt to open or modify the unit, for this could cause fire hazard or mal-
function.
After taking the unit out of the polyethylene bag, be sure to dispose of the poly-
ethylene bag out of the reach of children. Otherwise, they may play with the bag,
which could cause hazard of suffocation.
.A.CAUTION
Installation and wiring of the product requires expert skill and experience.
To
ensure
safety, be sure to have your dealer or specialist perform the installation and wiring.
Do not install the speaker in a spot exposed to direct sunlight or excessive heat or
humidity.
Do not install the speakers in locations which may be subject to water or moisture.
Do not install the speakers in unstable locations or locations subject to dust.
If the fuse blows, after checking to see if the wiring cord has shorted, be sure to
replace with the stipulated size (amperage) fuse as displayed on the fuse box. (Using
fuses other than the stipulated size can cause fires.)
Check the display!
To
replace the fuse, refer to the vehicle instruction manual.
Peso.......... . ............................................. 2,6 kg
To
prevent a short circuit when replacing a fuse, disconnect the wiring harness at
first.
Do not use gasoline, naphtha, or any type of solvent to clean the speaker. Clean by
wiping with a soft, dry cloth.
Connect the speaker wires to appropriate speaker connectors separately. Sharing
the negative wire of the speaker or grounding speaker wires to the metal body of
the car can cause this unit to fail.
When making a hole under a seat, inside the trunk, or somewhere else in the ve-
hicle, check that there is nothing hazardous on the opposite side such as a gasoline
tank, brake pipe; or wiring harness, and be careful not to cause scratches or other
damage.
For ground wire mounting, do not fasten the wire to an airbag, steering or brake
line system or other critical safety unit bolts or nut. (Can cause accidents.)
When mounting, be sure to mount in a place that will not interfere with driving
or be dangerous to passengers during sudden braking etc. (Cause of injury or ac-
cidents.)
After installing the unit, check to make sure that electrical equipment such as the
brake lamps, turn signal lamps and windshield wipers operate normally.
The driver should always stop the vehicle in a safe place before performing the fol-
lowing action.
- Remote control operation
Keep the volume of sound at an optimum level. Not being able to hear sounds from
outside of your car can lead to traffic accidents. It can also have a hearing damage.
Do not place hands on the speaker. The speaker becomes hot after extended opera-
tion. Touching it in such a condition may cause burns.
Protection function
The protection function is activated in the following situations:
This unit is equipped with a protection function for protecting this unit from various
accidents or problems that can occur.
When the protection function is triggered, the amplifier stops operating.
When the unit malfunctions and a DC signal is sent to the speaker output.
• When the internal temperature is high and unit won't operate.
