Summary of Contents for El Rocio MANUS

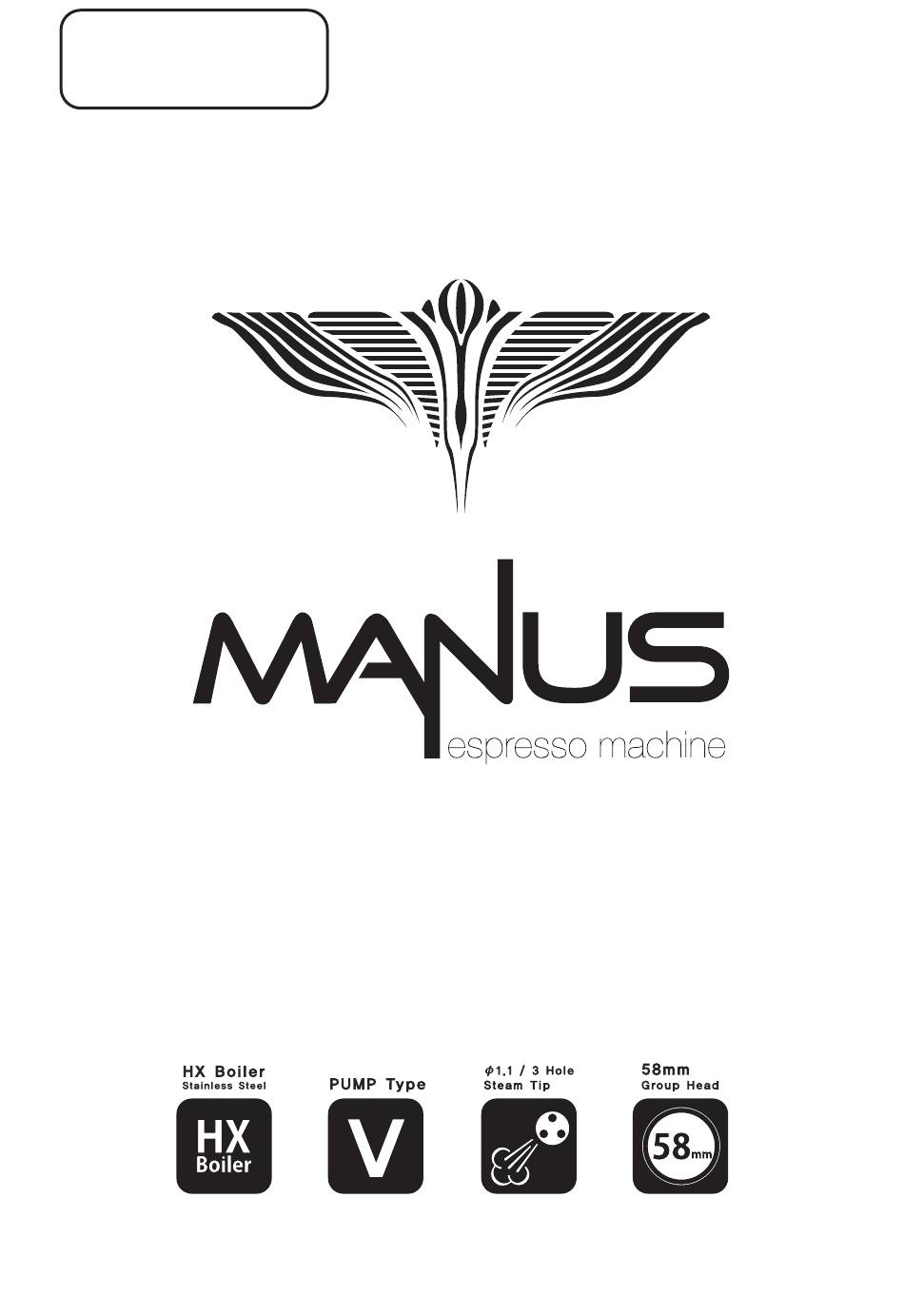

- Page 1 Please read this user manual prior to using the machine. USER MANUAL *The contents of this user manual is subject to change at any time without notice...
- Page 2 1. Contents and included accessories 2. Precautions before using 3. Information display 4. How to use 5. Cleaning and maintenance 6. FAQ...
- Page 3 Contents and included accessories Manus Double spout portafilter (chrome) Blind basket Cleaning brush Single basket Double basket User manual Drain hose...
- Page 4 Contents and included accessories Drip tray Settings dial Brew group lever Steam valve Steam pressure gauge Steam wand Brew pressure gauge Machine feet Group head Water reservoir handle FND Display...
- Page 5 Contents and included accessories Drain ball valve Drain pipe Drain plug...
- Page 6 Precautions Please read carefully before using. We are not responsible for any safety incidents that may arise from ignoring the safety precautions. This product’s electric specification is for Korea: 220V / 60Hz / 1.5Kw. Please use the correct electric specification. Ignoring the precautions may lead to physical injuries or damages.
- Page 7 Precautions • A safety-approved unit must be used when using a multi-tab power strip. This unit requires 10A+ (1.5Kw) electric current to operate. ※ using too many plugs at once can lead to a power overload fire. • Do not place sharp objects or flammable, combustible liquids that can cause electrocution around the machine.
- Page 8 Information display When on, the Manus machine’s status can be checked on the temperature display. • temperature display Displays current steam temperature, Please set the steam temperature in the settings menu according to the desired steam pressure. • No water in water reservoir This message appears when there is no water in water reservior.
- Page 9 User Instructions The recommended single extraction time is a maximum of 30 seconds, and we recommend 1 1-minute rest time after every use. ※ 30-second extraction / 1-minute rest (based on 2 shot lungo, 80ml extraction) Water reservoir removal and water refill Before connecting to power, remove the water tank in the order of the diagrams below and fill the water resevoir with water.
- Page 10 User Instructions 1) Please check the direction of the water reservoir. ※ The water level sensor must be on the left side for the water level detection function to operate properly. Check for foreign objects in the water reservoir. Filling the boiler up to its appropriate water level requires a lot of water. Please make sure water is filled up to the guide line on first use.
- Page 11 How to use 4. Extraction Dose an adequate amount of coffee into the portafilter basket, and tamp using a tamper. When tamping, make sure the portafilter is in a secure position and avoid wrist injuries by not applying excessive pressure. 2) Lock in the portafilter from the 8 o'clock position to 6 o'clock position 1.
- Page 12 How to use Change modes by turning the dial knob, and select modes by pushing the dial knob in. turning the dial knob click Push and hold for 3 seconds to enter settings. When HoE is selected, the machine goes from settings to regular mode. Set boiler temperature.
- Page 13 Cleaning and maintenance How to install and remove shower screen Place the shower screen and gasket on top of the portafilter without the basket. 2) Take the prepared portafilter with shower screen and gasket, place it into the group head, and turn as far counterclockwise as the portafilter can go to install the shower screen.
- Page 14 Cleaning and maintenance 3) Check for correct installation by placing a basket inside the portafilter and attaching the portafilter to the group head. 4) How to remove the shower screen Take a tool without a sharp end (teaspoon, etc) and pull it down at the edge of the shower screen.
- Page 15 Cleaning and maintenance Please ensure the machine is fully off and cooled off with the main switch in the off position before cleaning the machine. Cleaning the group head Remove the shower screen from the group head as shown in the diagram. ※...
- Page 16 Cleaning and maintenance Cleaning water tank 1) Remove water tank from the machine. 2) Wash and clean the water reservoir well. 3) Fully remove moisture and install water reservoir the opposite order of removal. Cleaning drip tray Take both hands to grip the ends of drip tray then slowly pull the drip tray forwards away from machine.
- Page 17 Long-term storage tips - How to remove water from the boiler 1. Preheat well for over 30 minutes, turn off the machine, and turn the brew lever upto remove any water left in the heat exchange chamber 2. Open the steam valve fully for over 10 minutes until any leftover boiler pressure is fully removed.
- Page 18 Q . Temperature is not showing on display and instead, Lo1 appears. A . Fill water in the water tank. Q . When first plugged in, the machine makes noise. A . The noise is from the pump working to fill the boiler with water. Please check to see if there is water in the water tank.
- Page 19 Notice Protection film may have air bubbles because El rocio products are handcrafted. All El Rocio products go under quality control protocols even right before the machines are shipped. Therefore, some moisture may be on the machines...
- Page 20 M E M O...
