Summary of Contents for BALAY 3VS953ID - annexe 2

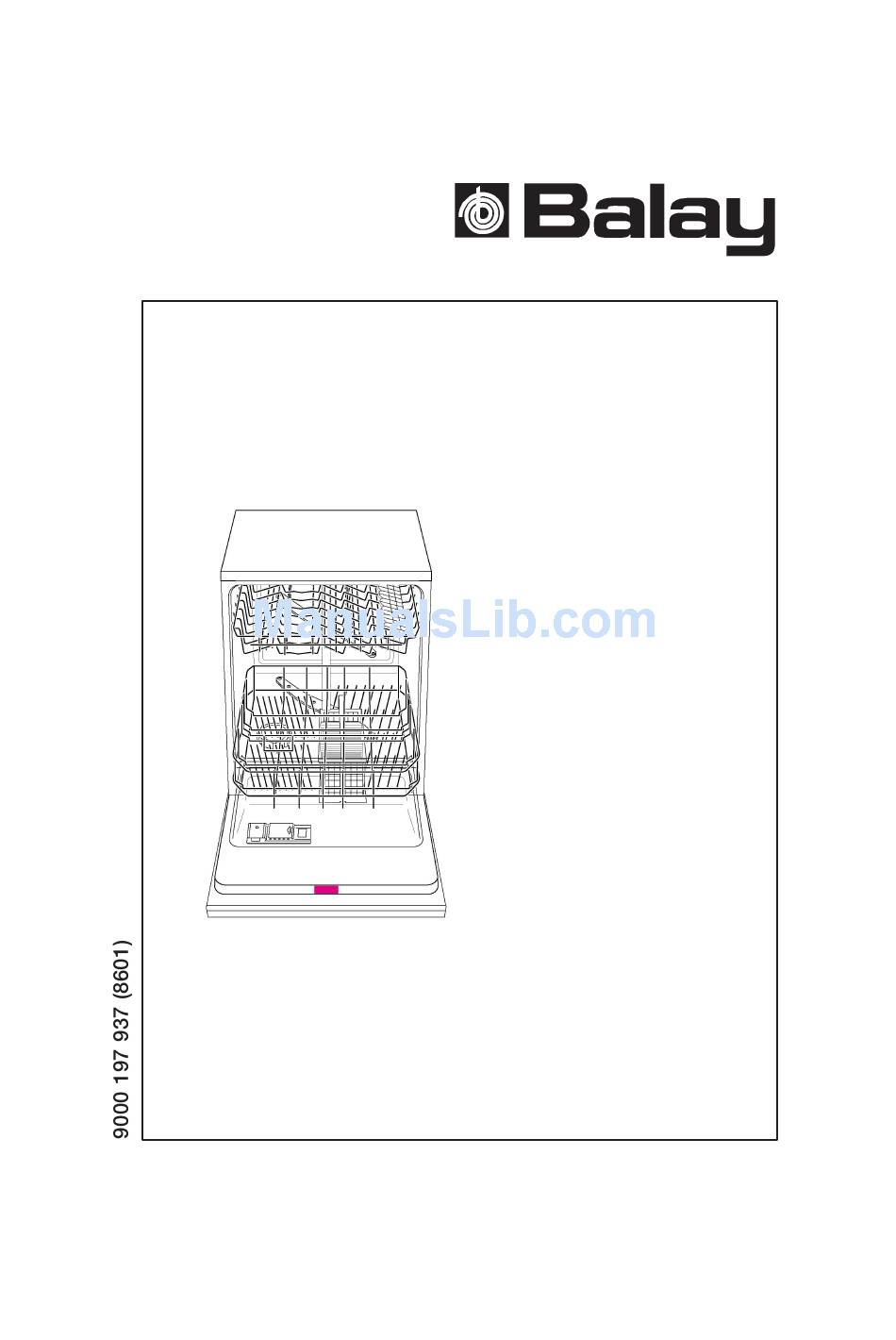

- Page 1 Instructions for use...
-
Page 3: Table Of Contents
Index Safety instructions ... . . Overview of programmes ..Getting to know your appliance Washing dishes ....Water softener . -
Page 4: Safety Instructions
Safety instructions Warning Delivery For safety reasons, if the appliance is not Immediately check the packaging and fitted in a recess, thereby making a side dishwasher for any damage which may wall accessible, the door hinge area have been caused in transit. Do not use should be covered at the side. - Page 5 Children in the household When disposing of old appliances Do not let infants play or operate the dishwasher. Appliances that have reached the end Keep cleaning and rinsing agents out of of their service life should be rendered the reach of infants. These may cause inoperable in order to exclude the chemical burns in the mouth, throat and possibility of subsequent accidents.
-
Page 6: Getting To Know Your Appliance
Getting to know your Appliance interior appliance Upper basket with additional cup rack Diagrams of the control panel and the Additional cutlery basket for the interior of the appliance can be found top basket* in the envelope at the front. Top spray arm Individual positions are referred to in Bottom spray arm... -
Page 7: Water Softener
Water softener Hold down programme button B and switch on the main switch, then In order to rinse dishes and glasses release both buttons. satisfactorily, the dishwasher requires soft water, i.e. containing little or no lime, The LED for button B flashes and the otherwise water stains will be left behind digital display displays the factory on crockery and glasses, etc. -
Page 8: Filling In The Salt
Filling in the Salt The LOW SALT indicator on the front panel will light up initially but will extinguish Open the screw-type cap of the again after a short period when the salt compartment solution has become sufficiently concentrated. When the control is set to , it is not Warning necessary to fill up with salt as none will... -
Page 9: Adding Rinse Aid
Adding rinse aid Adjusting the amount of rinse-aid The rinse aid is required for stain-free The amount of rinse-aid added to the utensils and clear glasses. water can be varied by adjusting the Use only rinse aid for domestic stepless control. The rinse-aid control has dishwashers. -
Page 10: Not Suitable For The Dishwasher
Not suitable for Damage to glassware and other dishes the dishwasher Possible causes: The following should not be type of glass or manufacturing process cleaned in the dishwasher: chemical composition of detergent Wooden cutlery and utensils – these water temperature and duration of will leach out and become unsightly;... -
Page 11: Arranging Crockery, Glasses, Etc. In The Dishwasher
Arranging crockery, Cups and glasses glasses, etc. in the Upper basket dishwasher Loading the dishwasher Scrape off any large amounts of left-over food. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in such a way that D items such as cups, glasses, pots/pans, etc. - Page 12 Cutlery Small accessories holder* Cutlery should be placed in the * some models dishwasher always unsorted and with the Light-weight plastic accessories, e.g. cups, eating surface pointing downwards. The lids, etc. can be held securely in the small spray jet is then better able to reach the accessories holder.
- Page 13 Top basket with upper Top basket with side levers and lower roller pairs (Rackmatic) Pull out the top basket. Pull out the top basket. Remove the top basket and re-attach it to the upper or lower rollers. To lower the basket, press in succession the two levers on the left and right sides of the basket.
-
Page 14: Detergents
Baking sheet spray head * Detergents * some models Information about detergents You can clean large baking sheets or You can use any brand of liquid or powder grilles with the baking sheet spray head. detergent, as well as tablets, that have To do this, remove the top basket and been specifically designed for use in insert the spray head as illustrated in the... - Page 15 Detergent compartment with measuring marks Reduce costs! If your dishes are only moderately dirty, The side of the detergent compartment is you may be able to use less detergent marked with lines to help you determine than recommended. how much powder to add. The capacity of the detergent container is Close the lid on the detergent 15 ml up to the bottom line and 25 ml up to...
-
Page 16: Auto 3In1
auto 3in1 Note The use of so-called combined detergent Optimum rinsing and drying results can be products may make the use of rinse aid obtained by using standard detergents in and/or salt unnecessary. conjunction with separate application of There are currently several types of salt and rinse aid. - Page 17 Switching the salt refill indicator / water softening system off and on Hold down the programme button B and switch on the main switch then release the buttons. The illuminated button B and the factory-set value on the digital display flash. To change the setting: press the programme button B .
-
Page 18: Overview Of Programmes
Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of dishes e.g. porcelain Non- Delicate pans, Mixed Mixed sensitive cutlery, glasses, etc. Type of food remnants e.g. -
Page 19: Washing Dishes
Washing dishes Switching the dishwasher ON Turn on the tap. Set main switch to ON. Reduce costs! Indicators light up according to the last If only a small number of dishes have programme that was selected. been loaded into the dishwasher, selecting This same programme will run again if a programme that operates at the next no other programme button... - Page 20 Time delay * Switching the dishwasher OFF Several minutes after the programme has on applicable models ended: You can delay the start of the programme Open the door when the programme in 1-hour steps up to 19 hours. has ended. Switch on the appliance.
-
Page 21: Information On Programme Sequence
Intensive drying Information on programme sequence If the “Intensive drying” function is activated, the temperature of the final rinse When the appliance starts, the following is increased in all programmes and you displays are indicated. will therefore receive an improved drying result. -
Page 22: Additional Functions
Additional functions Maintenance and care A regular inspection and maintenance on some models additional functions of your machine will help to prevent faults. can be set with the buttons. This saves time and prevents problems. Therefore you should occasionally have Pre-Soak * a careful look inside your dishwasher. - Page 23 Filters The filters prevent larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a filter cylinder, a flat fine filter and, depending on the model, a microfilter (*). Inspect the filters for obstructions every time the dishwasher has been used.
- Page 24 Spray arms Pump * Lime and remnants of food in the washing on applicable models water can block the nozzles in the spray Larger remnants of food that have not arms and the arm been trapped by the filters and have been mountings .
-
Page 25: Fault Finding
Fault finding The filter on the water supply hose is blocked. Resolving minor problems Switch off the appliance and pull out the mains plug. Turn off the yourself tap. Then clean the filter which is Experience has shown that you can situated at the connection of the resolve most problems that arise during supply hose. - Page 26 ... with the dishes, cutlery, etc. Refill display does not light up. Rinse aid refill indicator switched Remnants of food are stuck to the off. (see auto 3in1 chapter) dishes, cutlery, etc. Salt refill indicator switched off. Dishwasher was not loaded (see auto 3in1 chapter) properly.
-
Page 27: Customer Service
Customer Service Glasses have a dull appearance Amount of rinse-aid was set too Please call your local service agent, if you low. are not able to resolve any problem Tea stains or traces of lipstick have yourself. The name of your nearest service not been completely removed agent is shown in the Customer Service Detergent does not have a... -
Page 28: Information
Information Installation Notes on comparison tests The dishwasher must be connected by a qualified technician to ensure correct You will find details of the conditions for operation. The specifications for supply, the comparison tests on the additional drainage and connected load must fulfil ”Notes on comparison tests”... - Page 29 Fresh water connection Loosen the fastening screws under the worktop. If fitted, remove the base panel. Using the enclosed parts, connect the Pull out the appliance, carefully pulling the fresh water connection to the tap hose behind. according to the installation instructions. Ensure that the fresh water connection is Transporting the dishwasher not kinked, crushed or twisted.
-
Page 30: Waste Disposal
Waste disposal D The polyethylene film (PE) consists partly of secondary raw materials. Disposal D The wooden frames (if fitted) are made of untreated residual wood. Old appliances are not worthless rubbish. D The hoops (if fitted) consist Valuable raw materials can be reclaimed of polypropylene (PP). - Page 31 en Subjekt to modification...
- Page 33 Balay (BYSE Electrodomésticos, S.A.) BSH Electrodomésticos España S.A. Avda. de la Industria, 49 50059 Zaragoza (Spain) To contact us directly, use the tel. no or fax no. in the 9000 197 937 en (8601) enclosed customer service list. 638X...
