Wiring and ferrule terminal specifications
Cable gauge (mm
0.3
0.5
0.75
1
1.25 / 1.5
0.75 (for two wires)

Ferrule terminals and the tool are distributed by Phoenix Contact Co., Ltd.
Shorting wire
The shorting wire are installed between terminals S1/S2 and PC in the initial status as shown in Figure 2.
Remove the shorting wires and connect the safety relay module when using the safety stop function.
FR-D800
10 2
A B C
Table 5 Wiring and Ferrule terminal specifications
2
Ferrule terminal model
)
AI 0,34-10TQ
AI 0,5-10WH
AI 0,75-10GY
AI 1-10RD
AI1,5-10BK
AI TWIN 2 X 0,75-10GY
5 4 AM 5
S1 S2 PC So SoC PC
STF STR RL RM RH SD
T+ T- R+/FU R-/SD SE RUN

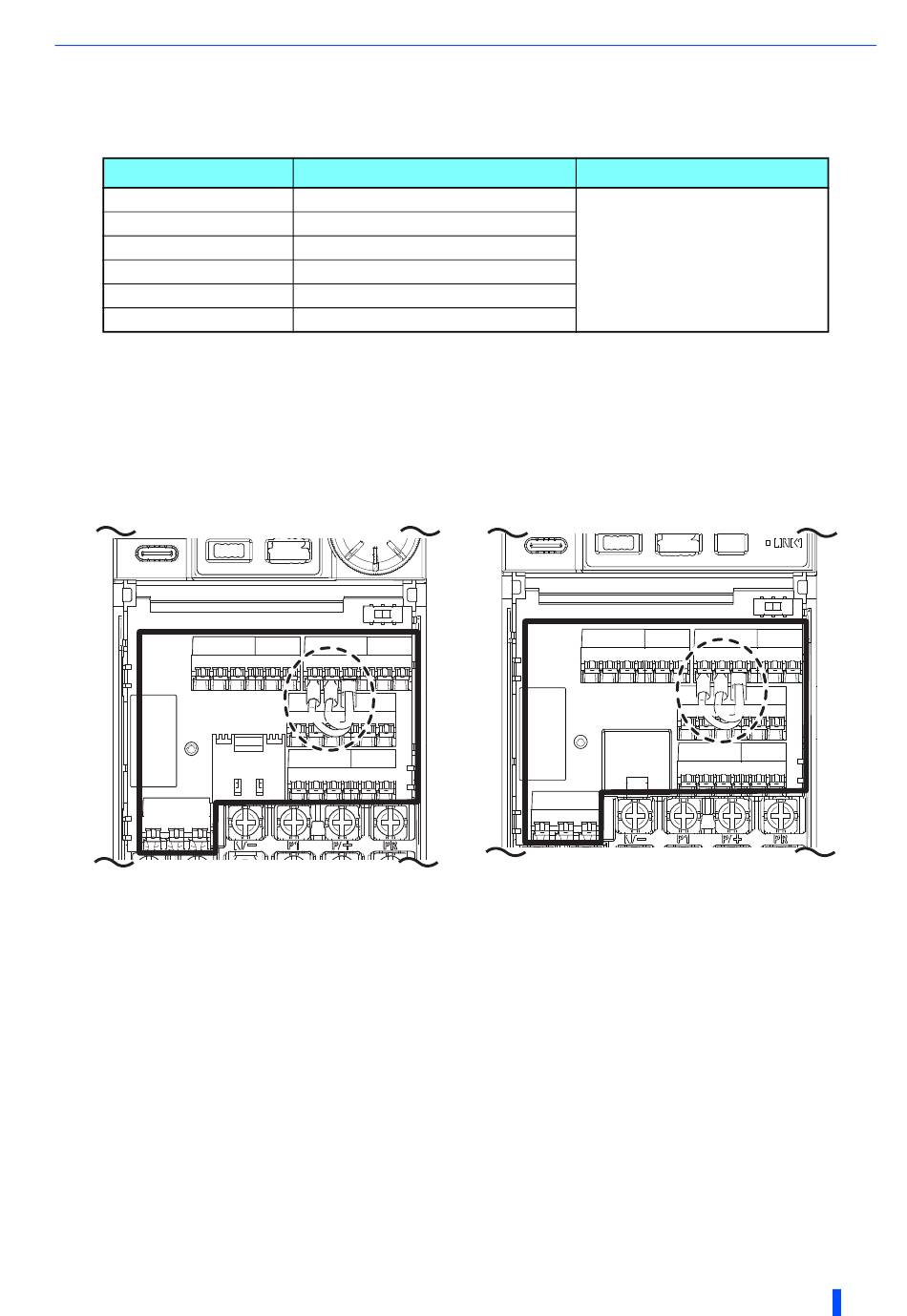

Figure 2 Shorting wire
Crimping tool name

CRIMPFOX 6
FR-D800-E
10 2 5 4
A B C
INSTALLATION AND WIRING

AM 5 S1 S2 PC So SoC PC
STF STR RL RM RH SD
FG FG NC SD SE RUN
