Note: Read instructions entirely before assembling this product.

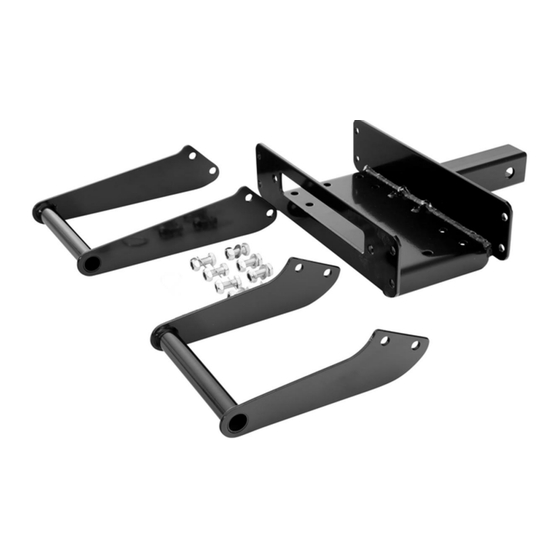

Parts Included
Main Base Plate
Gear Side Handle
Motor Side Handle
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Receiver Winch Cradle
Qty
Parts Included
1
10mm Ny-lock Nut
1
10mm x 20mm Bolt
1
Flat Washer
Part # 2811
Qty
8
8
8
Winch cradle can
handle most winches
up to 12k lb. Keep in
mind the capacity of
your hitch, as it may be
rated lower than the
winch cradle and/ or
winch.
