- Page 1 CAR AUDIO AMPLIFIER DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 CAR AUDIO AMPLIFIER User Manual...
- Page 2 DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 INTRODUCTION Thank you for purchasing a Recoil amplifier for your car audio system. You have chosen Recoil because you deserve the best! Please thoroughly read through this manual before getting started. If you have any questions and require additional assistance, please contact support@recoilaudio.com.
- Page 3 Connect the remote turn on cable to the REM ( remote ) terminal. SPEAKER TERMINAL BLOCK Connect speaker wire from amplifier's terminal block to subwoofers. Subwoofers' impedance should be checked carefully. WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...

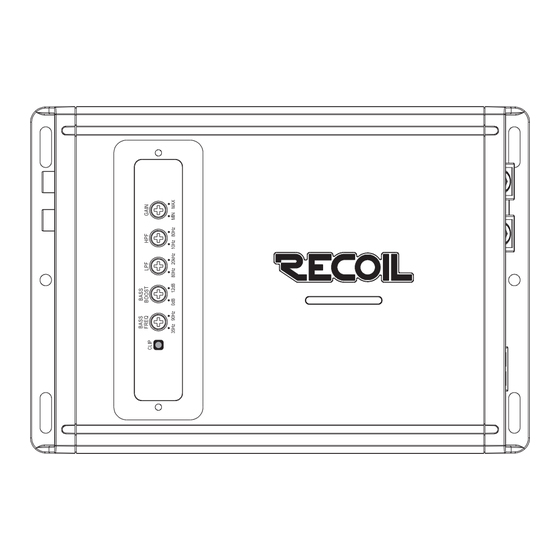

- Page 4 CAR AUDIO AMPLIFIER DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 FRONT PLATE DII1000.1 & DII1600.1 RCA INPUTS The RCA jacks allow for a normal Left and Right channel signal input. Simply connect to the source unit using RCA type audio cables, keeping them away from power wiring wherever possible to reduce risk of noise.
- Page 5 The CLIP LED is When flashing indicates clipping is present while playing source material At this point it is suggested to adjust the amplifiers gain level until the CLIP LED is only flashing on peak notes. FRONT PLATE DII3300.1 & DII5000.1 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 6 10Hz - 50Hz. For Low Pass Mode adjust the knob by turning clockwise/counter clockwise, this control limits the frequencies that are distributer to the speakers within the range 40Hz - 250Hz. WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 7 The CLIP LED is When flashing indicates clipping is present while playing source material At this point it is suggested to adjust the amplifiers gain level until the CLIP LED is only flashing on peak notes. FRONT PLATE DII400.4 & DII700.4 & DII1100.4 & DII1400.4 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 8 Increases sound level in lower frequencies by 12dB. SUBSONIC This control allows you to remove the unwanted sub-sonic frequencies below the tuning frequency of a ported enclosure. This helps to protect the woofer from over excursion. Adjustable from 10Hz - 50Hz. WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 9 This switch allows the amplifier to be driven with either 2 or 4 or 5 pairs of inputs. GAIN The input gain control is preset to match the output of most source units. It can be adjusted to match output levels from a variety of source units. WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 10 This control allows you to remove the unwanted sub-sonic frequencies below the tuning frequency of a ported enclosure. This helps to protect the woofer from over excursion. Adjustable from 10Hz - 50Hz. SPEAKER CONNECTION DIAGRAM DII1000.1 & DII1600.1 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 11 CAR AUDIO AMPLIFIER DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 SPEAKER CONNECTION DIAGRAM DII3300.1 & DII5000.1 DII400.4 & DII700.4 & DII1100.4 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 12 CAR AUDIO AMPLIFIER DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 SPEAKER CONNECTION DIAGRAM DII1400.4 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 13 CAR AUDIO AMPLIFIER DII1000.1/DII1600.1/DII3300.1/DII5000.1 DII400.4/DII700.4/DII1100.4/DII1400.4/DII1400.5 SPEAKER CONNECTION DIAGRAM DII1400.5 WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 14 Subsonic Filter 30Hz-300Hz High Pass Filter 30Hz-300Hz 30Hz-300Hz 30Hz-300Hz 30Hz-300Hz Low Pass Filter 30Hz-300Hz 30Hz-300Hz 30Hz-300Hz Bass Boost Remote Control Fuse Rating(ATC) 120A 5.55x5.37x2.09 in Dimensions(mm) 6.22x5.37x2.09 in 7.17x5.37x2.09 in 7.59x5.37x2.09 in 141x136.5x53mm 158x136.5x53mm 182x136.5x53mm 202x136.5x53mm WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 15 Efficiency @ 4 ohm 0.2V-12V Input Sensitivity CH5: 10Hz-50Hz Subsonic Filter CH1-CH4: 50Hz-5KHz High Pass Filter CH1-CH4: 50Hz-5KHz Low Pass Filter CH5: 50Hz-250Hz CH5: 0-12dB Bass Boost Remote Control Fuse Rating(ATC) 10.87x5.37x2.09 in Dimensions(mm) 276x136.5x53mm WWW.RECOILAUDIO.COM Copyright ©2024 Recoil Audio...
- Page 16 • Please check whether speakers work well, you can test speakers by connecting to another amplifier. WWW.RECOILAUDIO.COM COPYWRITE © 2024 RECOIL ALL RIGHTS RESERVED. RECOIL, AVS INDUSTRIAL CO. LTD AND DOMESTIC INVESTMENT GROUP, LLC ASSUME NO RESPONSIBILITY OR LIABILITY FOR FINES OR DAMAG-...
