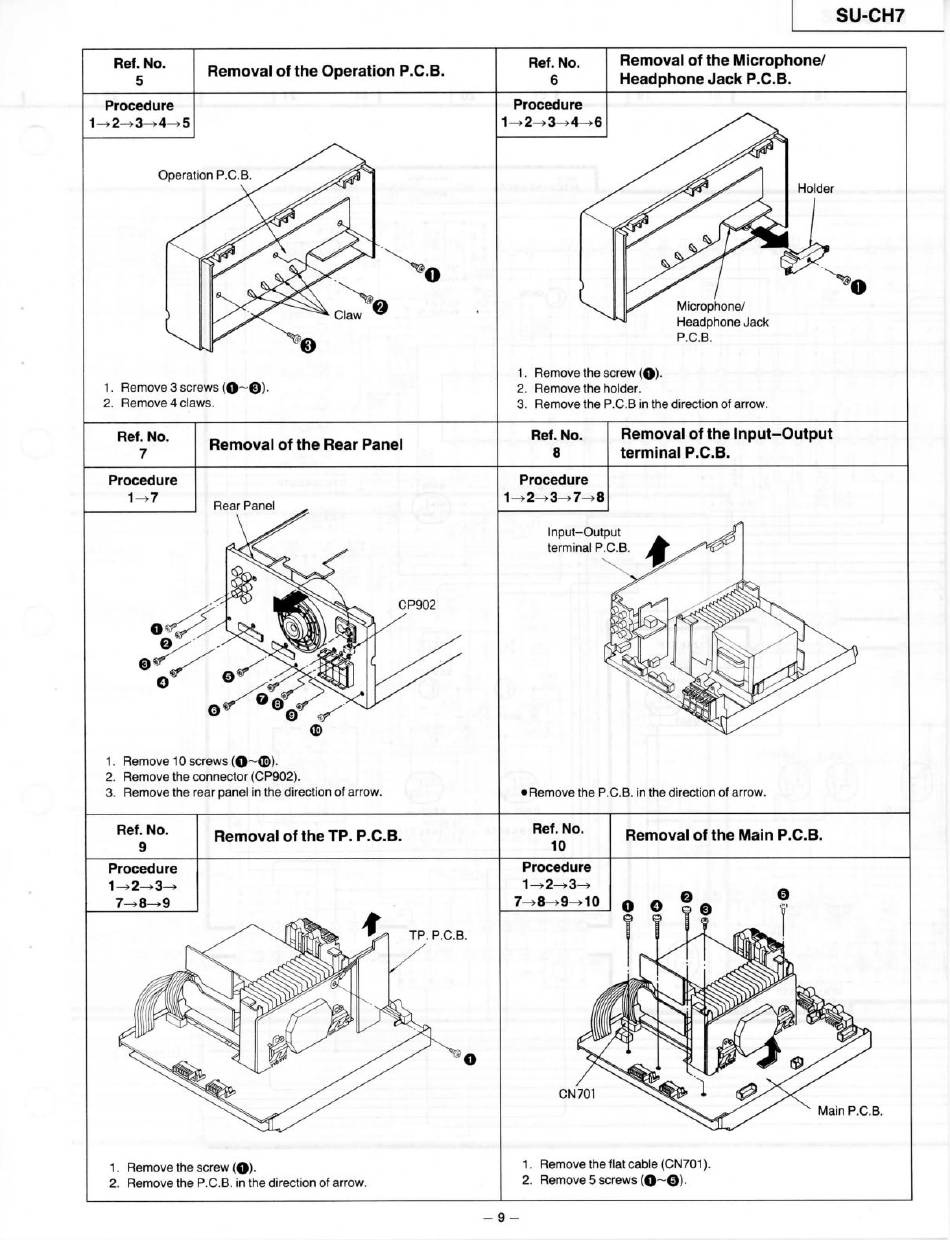

Panasonic Technics SU-CH7 Service Manual page 9

SU-CH7
Ref. No.
5
Removal of the Operation P.C.B.
Ref. No.
6
Removal of the Microphone/
Headphone Jack P.C.B.
Procedure
Procedure
Holder
1. Remove 3 screws (O~0)-
2. Remove 4 claws.
Microphone/
HeadphoneJack
P.C.B.
1. Remove the screw (O)-
- .-^.^
2. Remove the holder.
3. Remove the P.C.B in the direction of arrow.
Ref. No.
7
Removal of the Rear Panel
Ref. No.
8
Removal of the Input-Output
terminal P.C.B.
Procedure
Input-Output
terminal P.C.B.
1. Remove 10 screws (0~(D)-
2. Remove the connector{CP902).
3. Remove the rear panel in the direction of arrow. • Remove the P.C.B. in the direction of arrow.
Ref. No.
9
Removal of the TP. P.C.B.
Ref. No.
10
Removal of the Main P.C.B.
Procedure
Procedure
1 ^ 2 ^ 3 ^
7 ^ 8 ^ 9 ^ 1 0
TP. P.C.B.
O O
0
CN701
IVIain P.C.B.
1. Remove the screw (O)-
2. Remove the P.C.B. in the direction of arrow.
1. Remove the flat cable(CN701)
2. Remove 5 screws (0~©)-
- 9 -
