SU-CH7

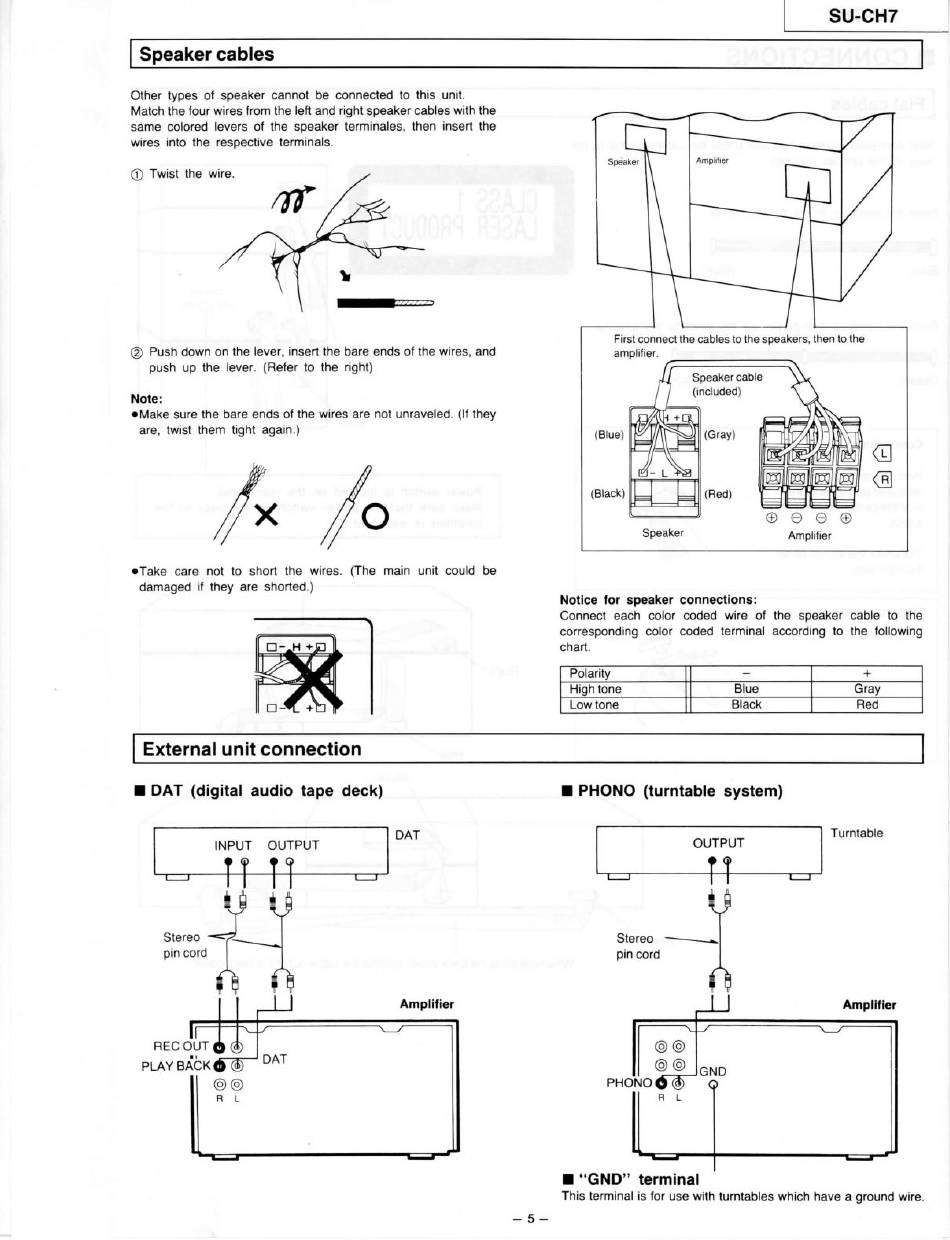

Speaker cables
Other types of speaker cannot be connected to tfiis unit.
Matcti the four wires from the left and right speaker cables with the
same colored levers of the speaker terminales, then insert the
wires into the respective terminals.
© Twist the wire.
@ Push down on the lever, insert the bare ends of the wires, and
push up the lever. (Refer to the right)
Note:
•tVlake sure the bare ends of the wires are not unraveled. (If they
are, twist them tight again.)
•Take care not to short the wires. (The main unit could be
damaged if they are shorted.)
First connect the cables to the speakers, then to the
amplifier.
(Blue;
(Black) ^
Speaker
® e e 0
Amplifier
Notice for speaker connections:
Connect each color coded wire of the speaker cable to the
corresponding color coded terminal according to the following
chart.
Polarity
-
+
High tone Blue Gray
Low tone Black Red
External unit connection
DAT (digital audio tape deck) PHONO (turntable system )
IN
(
PU
1 (
T C
) 1
)U1 'PUT
stereo -
pin cord
If
R E C O U T Ö
PLAYBACK O ®
@@
R L
J J
DAT
DAT
Am plifier
OUTPUT
9
Stereo —
pin cord
@ @
_ @ @
PHONO Od)
GND
zyxwvutsrqponmlkjihgfedcbaZYX
Q
R L
Turntable
Am plifier
• "GND" term inal
Thls terminal Is for use with turntables which have a ground wire.
- 5 -
