SU-CH7

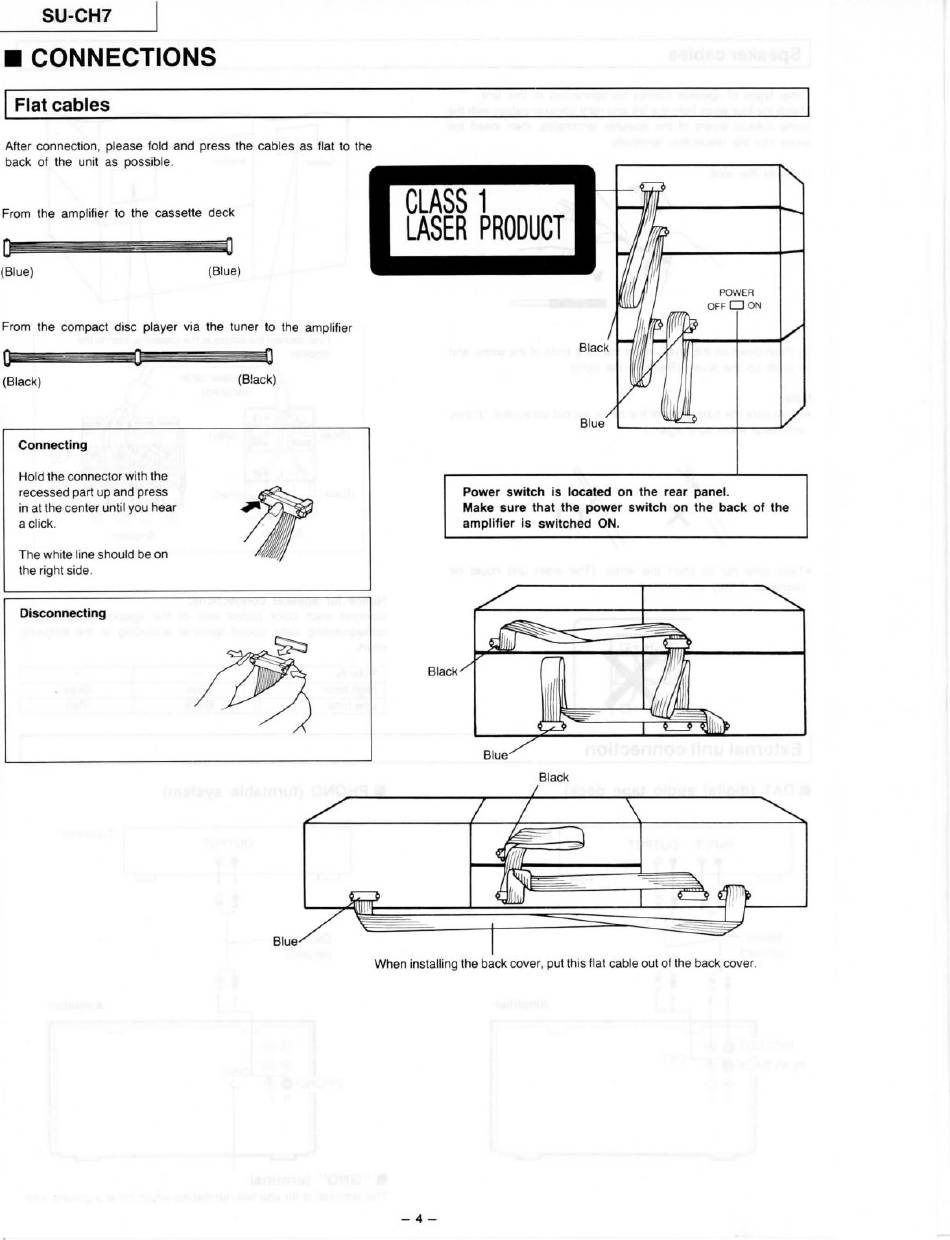

CONNECTIONS
Flat cables
After connection, please fold and press tfie cables a s flat to thie
back of the unit a s possible.
From the amplifier to the cassette deck
(Blue) (Blue)
From the compact disc player via the tuner to the amplifier
(Black)
(Black)
Connecting
Hold the connector with the
recessed part up and press
in at the center until you hear
a click.
T h e white line should be on
the rightside.
Power switch is located on the rear panel.
Make sure that the power switch on the back of the
amplifier is switched ON.
Black
Blue
Black
Blue
When installing the back cover, put this flat cable out of the back cover.
