Bosch C30 charger I Operating instructions

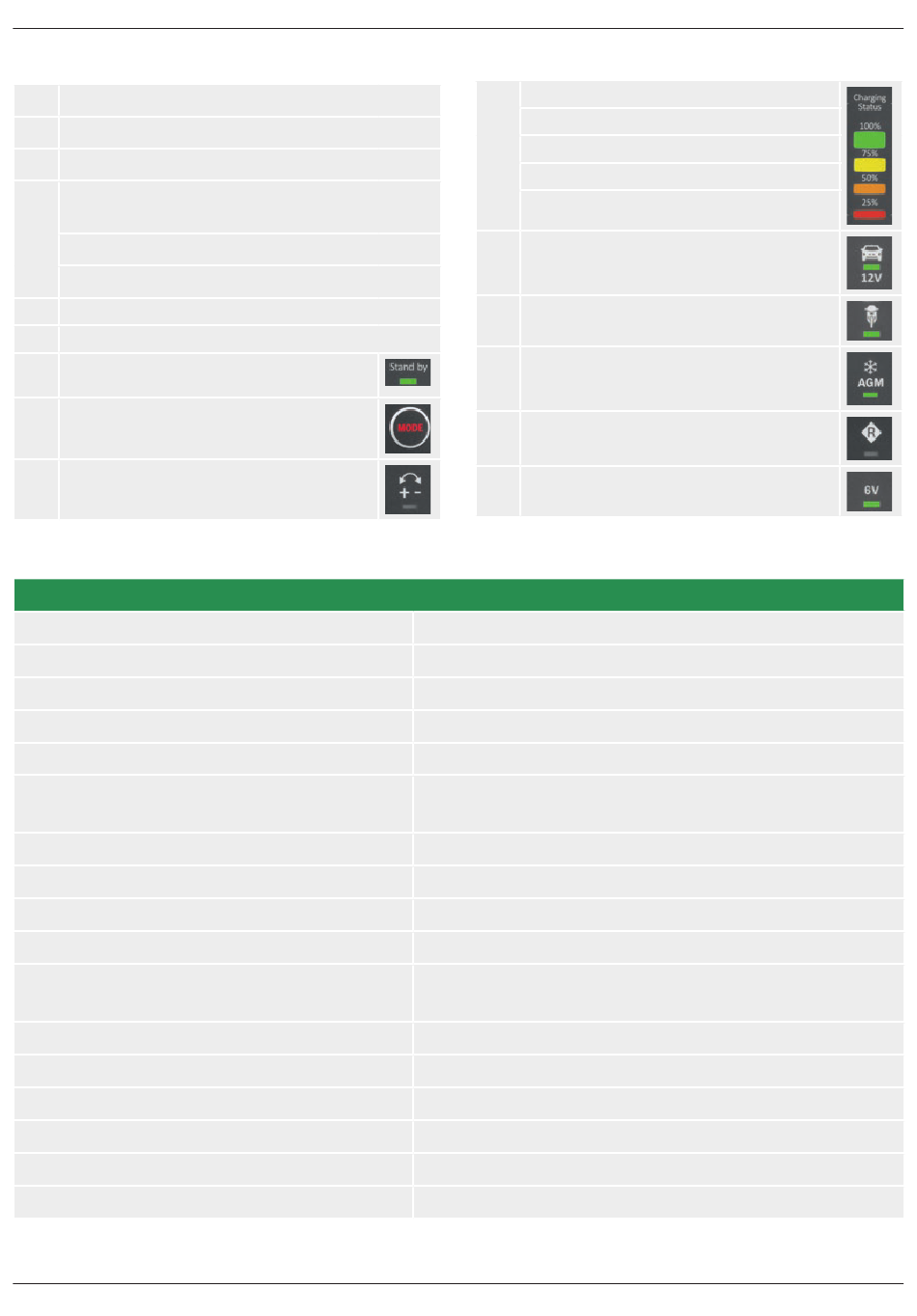

1 Device description

1 Charger
2 Mounting hook
3 Mains cable with mains connection
4 Charging cable with cable lug
(red and black, 18 AWG cable)
a Fuse holder with fuse
b Plug
5 (+) Terminal clamp (red)
6 (–) Terminal clamp (black)
7 Standby
8 Mode selection button
9 Reverse polarity protection + -

2 Technical data

Technical data
Input voltage
Starting current
Rated input current
Input power
Rated output voltage
Charging voltage
Charging current
Rated output current
Reverse current1
Protection rating
Battery type
Battery capacity
Fuse (internal)
Fuse (fuse holder)
Noise level
Temperature
Dimensions
The reverse current is the current that the charger consumes from the battery when no mains
1)
power is connected.
8
10 Battery capacity indicator
Battery capacity: 100%
Battery capacity: 75%
Battery capacity: 50%
Battery capacity: 25%
11 Mode 1 | 12 V (car)
12 Mode 2 | 12 V (motorcycle)
13 Mode 3 | 12 V (charging at 0-4°C
in winter or AGM)
14 Mode 4 | 12 V
(regeneration)
15 Mode 5 | 6 V (motorcycle)
230 VAC / 50 Hz
< 50 A
Max. 0.6 A (RMS value)
60 watts
DC 6 V/12 V
14.7 V (± 0.25 V), 14.4 V (± 0.25 V),
7.2 V (± 0.25 V), 16.5 V (± 0.5 V)
3.8 A (± 10%), 0.8 A (± 10%), 1.5 A (± 0.3 A)
0.8 A, 3.8 A
< 5 mA (no AC input)
IP65 (dustproof, waterproof)
6 V & 12 V lead-acid battery (WET, EFB, GEL,
AGM, open and VRLA)
6 V: 1.2 Ah – 14 Ah, 12 V: 1.2 Ah – 120 Ah
3.15 A
10 A
< 50 dB(A)
0 °C to + 40 °C
169 x 81 x 54 mm (L x W x H)
