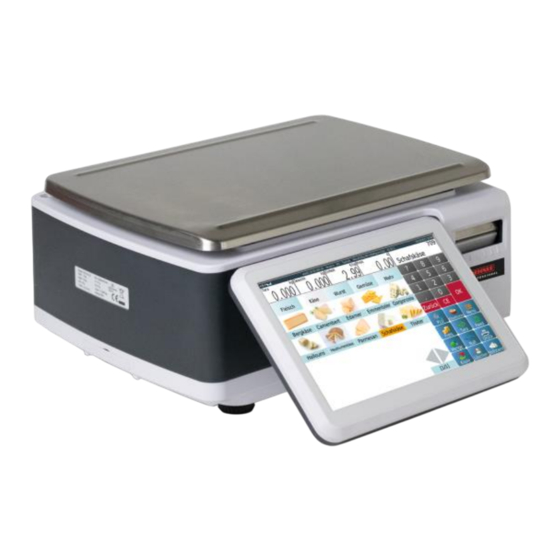

Soehnle Professional 1222 Instructions For Use Manual

Self-service scales and labelling scale
Hide thumbs

Advertisement

Quick Links

Download this manual
Self-service scales 1222
and
Labelling scale 1422
Instructions for use
www.soehnle-professional.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Soehnle Professional 1222

Summary of Contents for Soehnle Professional 1222

  • Page 1 Self-service scales 1222 Labelling scale 1422 Instructions for use www.soehnle-professional.com...
  • Page 2 2.3 Label printer ........................... 7 2.4 Interfaces ..........................7 2.5 Model overview ........................8 2.5.1. 1422 ..........................8 2.5.2. 1222 ..........................8 2.6 Touch screen (example of operation / user interface) ............9 3. INSTALLATION ......................10 3.1 Unpacking ..........................10 3.2 Levelling device ........................
  • Page 3 9.5 Execute USB script / backup and restore ................73 9.6 Forcing pressure ......................... 77 9.7 Allow pressure at zero ......................78 10. INFORMATION ......................80 10.1 General specification ......................80 10.2 Printer specification ......................81 10.3 Overall dimensions ......................81 10.3.2. 1222 ........................... 81 10.3.3. 1422 ........................... 82...
  • Page 4 SAFETY INSTRUCTIONS WARNING DISCONNECT THIS APPLIANCE FROM THE POWER SUPPLY BEFORE INSTALLATION, CLEANING OR MAINTENANCE. FAILURE TO DO SO MAY RESULT IN PHYSICAL INJURY OR DAMAGE TO THE APPLIANCE. CAUTION • Only allow qualified persons to service the appliance • Switch off the device before connecting or disconnecting components.
  • Page 5 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS The scale is an electronic precision instrument, handle it with care. 1) The appliance may only be operated by persons who have been trained in the operation of this appliance. 2) The operating personnel must read and understand the safety instructions in these operating instructions.
  • Page 6 2.1 General information The 1422 scale with label printing has comprehensive functions, interfaces and a high-resolution 10-inch operator display with touch function. The 1222 self-service scale has a large 15.6-inch touchscreen display. The standard models are high-quality products for customers who want sophisticated functions.
  • Page 7 2.3 Label printer The models in the 1222 and 1422 series are equipped with a linerless printer as standard. The print resolution is 8 dots/mm, the print speed is 100 mm/s and the maximum print width is 54 mm. 2.4 Interfaces All scales in the 1222 and 1422 series are equipped with 1xRJ45, 1xRJ11, 4xUSB2.0...
  • Page 8 10" touch display. The 1422 is available in two different weighing range versions. 2.5.2. 1222 The 1222 is a stand scale for self-service label printing with a large 15.6-inch touchscreen display. It has comprehensive functions and interfaces and is available in two different weighing range versions.
  • Page 9 2.6 Touchscreen (example of operation / user interface) Labelling mode Self-service mode...
  • Page 10 3. INSTALLATION 3.1 Unpacking When you receive the scale, check that it is undamaged and that all parts are present: • Remove the scales from the box. • Remove the protective cover. Keep the packaging and use it if you need to transport the scales later.
  • Page 11 Water level • The air bubble must be in the centre of the dragonfly. • The correct alignment of the appliance can be achieved by adjusting the adjustable scale feet. • The alignment should be checked regularly to ensure correct weighing results.
  • Page 12 The surface of the bridge plate should be checked regularly to ensure that no foreign bodies are deposited. 3.4. Replacing the printer cartridge The 1222 and 1422 series scales are equipped with a linerless label printer as standard. A standard label printer can be installed as an option. 3.4.1 Linerless printer cassette...
  • Page 13 Replacing the label roll ① Open the printer flap ② Turn the lever to the open position ④ Loosen the roller fixation and remove the ③ Remove the cassette roller core ⑤ Insert new label roll, close roll ⑥ Insert the cassette and turn the lever fastener to the closed position ⑧...
  • Page 14 3.4.2 Cassette label printer (option) Label roll Cassette release lever Backing paper Roll holder Backing paper rewind...
  • Page 15 Replacing the label roll ① Open the printer flap ② Turn the lever to the open position ④ Remove backing paper and roll core ③ Remove the cassette ⑤ Insert a new label roll, then insert the backing paper under the slot in ⑥...
  • Page 16 3.6 Power connection 1 socket for the mains cable 2 On/off button • To connect the scales, plug the mains cable into the socket located under the scales. Then insert the plug into a socket. • Only use the mains adapter supplied with the scales. 3.7.
  • Page 17 4) Restart the scales Press the key in the main menu and press "Restart" in the pop-up window to restart the scale. The scale switches off and then switches to normal weighing mode. Note: Avoid disconnecting the mains power supply directly when switching off the scales, otherwise the weighing data will be lost.
  • Page 18 4. DISPLAY & BUTTON FUNCTIONS 4.1 . Labelling mode (standard operating interface) 4.2 Display and button functions Indicator Name Description of the Zero To display the current Stable Weighing status Operator Display of the operator mode Display weighing range, Weighing data resolution and minimum weight To display the software...
  • Page 19 Display of the price per unit of Price display weight Total display Display of the total price Product display Display of the current product Display of the various product Product group button groups Display of PLU name & number PLU key or PLU image &...
  • Page 20 4.3 Self-service mode (standard user interface) 4.4 Display and button functions Indicator Name Description of the Zero To display the current weighing status Stable Users For display operators For capacity, division and minimum Capacity weight Software version To display the software version Date and time For displaying the date and time Price display...
  • Page 21 4.5 Built-in keypad The on-screen keyboard opens automatically for editing or entering new data. Keyboard for special characters Numeric keypad Backspace key...
  • Page 22 When entering text, you can use this key to change the line Special characters and number keys. Close keyboard Switch to upper case / lower case. Press to change the sign 4.6 Main menu...
  • Page 23 Icons Name Description of the Label button Starts the labelling mode Database settings Calls up the master data settings Data transmission Data import and export Basic settings Call up general settings Technical settings Call up technical settings Switch on button Switch off or restart the scales Zero key Set the scales to zero...
  • Page 24 5. OPERATION Function 5.1.1 Switch on When switching on, the scale first displays the company logo. The scale then sets the current weight as the new zero reference and then starts automatically in menu mode, in which the weighing mode can be selected. Access to the menu and weighing mode can be secured (user name and password may be required if this was created when the user was created).
  • Page 25 5.1.5 Presetting the tare The scales have a tare memory. Press and hold the key until a window for entering the tare value appears; by tapping the "OK" key, the tare value is saved according to the entry. 5.1.6 PLU (Price Look Up) The scale can store up to 99999 unit price values, which you can access using the PLU keys or the PLU search key.
  • Page 26 5.2.1.1. Direct PLU Tap the PLU buttons on the pages. Use the group button to select different product groups or categories. Meat group Cheese group Sausage group Further page/group window list...
  • Page 27 Note: The page/group list is only available according to the settings of the pre- button. 5.2.1.2.In-direct product search Tap the key to call up the product overview page. a) Product search by PLU number b) Product search by name...
  • Page 28 5.2.2 Manual entry of unit price/quantity 1) If the product data is not predefined in the scale; 2) Tap the key to enter the unit price manually; 3) Confirm with OK and follow the instructions for weighing; 4) For products without weight, enter the unit price and then enter the quantity manually;...
  • Page 29 5.2.3. 2 Non-weighed article/ unit price operation a) Select a non-weighed item from the PLU list. b) The name and number of the selected product and the standard number of the item are shown on the display. c) By tapping the key or by tapping to enter the desired unit price.
  • Page 30 d) Then press the key to print a label. Note: You can delete the current product name and price by pressing the key . Selecting a new item automatically deletes the existing PLU name and price. 5.2.3.3. Labelling mode for weighed items Note: To select the labelling mode, see Settings >...
  • Page 31 b) The display shows the name, number and price per unit of weight of the selected product. c) Tap the target window to enter the number of packs and then tap the OK key. a) Place the goods on the platform and wait until the weighing result is stable. Then press the key to start printing the labels.
  • Page 32 c) Remove the item from the scale and place the next item on the scale. Note: You can delete the current product name and price by pressing the key . Selecting a new item automatically deletes the existing PLU name and price.
  • Page 33 d) Place the goods on the platform and wait until the weighing result has stabilised, then press the key to print the labels. e) Remove the goods from the scale and place a new item on the platform to be labelled.
  • Page 34 . Selecting a new item from a new PLU key automatically deletes the existing PLU name and price. 5.2.3.3.3.. Labelling mode - print repetition This function enables the automatic printing of multiple labels when the printed label is removed. Setting for number or target weight function according to section 5.2.3.3.1 & 2. Note:: The function Settings >...
  • Page 35 a) Tap the key , enter the unit price for the item and confirm with OK. b) You can enter the desired quantity value in the quantity window by tapping the or by tapping . c) The number and the total price are shown on the display, d) Then press the key to print a label.
  • Page 36 a) Tap the target window to enter the number of packs and then tap the OK key. b) Then press the key to start printing the labels. c) The next label is printed automatically when the printed label is removed.
  • Page 37 Total operations for the target operation Total number of items for the target operation Print total Note: You can delete the target and accumulation information by pressing the key or by selecting a new PLU key, the existing PLU name and price are automatically deleted.
  • Page 38 b) Tap the target window to enter the number of packs and then tap the OK key. d) Then press the key to start printing the labels. e) Remove the label and press the key to start printing the next label.
  • Page 39 Total operations Total units Print total Note: You can delete the target and accumulation information by pressing the key or by selecting a new PLU key, the existing PLU name and price are automatically deleted. Operation in self-service mode Use the keys to select different product groups or categories.
  • Page 40 5.3.1 5.3.1.1. Selection by product category a) Place the item on the platform b) Search the product by category c) Select the appropriate product d) The display shows the name and number of the selected product. e) The label is printed automatically. f) Attach the label to the product.
  • Page 41 5.5 Printing 5.5.1 Set up print mode (label, linerless, continuous) The following print modes can be selected in the submenu Operating settings >Print mode: ✓ Label mode: Used to print labels (with backing paper and die-cutting) ✓ Receipt mode: For printing linerless labels (without liner, without punching) 5.5.2 Linerless printing To activate linerless printing, please change the print mode to Bon mode as described in section 5.5.1, or proceed as follows.
  • Page 42 Method 2 Press the【Menu】 key to call up the main menu, use the key to switch to the main menu. Press【Setting】 to select the printer setting, press the printer configuration to select Receipt Mode【AN】. If you want to change the receipt mode to label mode, switch the key and select the option Receipt mode【OFF】...
  • Page 43 Management of tax rates Management of nutritional Nutritional values Nutrition information Key overview Arrow keys Navigate up and down Edit For editing product information Delete product groups, articles, Delete etc. Add product groups, articles, etc. Back Return to the main page Save For saving information 6.1.
  • Page 44 Abbreviation Enter the short name of the PLU. 20 alphanumeric characters Origin Enter the place of origin, 255 alphanumeric characters Play Navigate up and down Product group Select the name of the category from the drop-down list Department Select the name of the department from the drop-down list Unit price Select the weighing unit from the drop-down list.
  • Page 45 Ingredients For nutritional information; 1500 alphanumeric characters Produced For the creation of company information; 1500 alphanumeric characters Remark 1 For any comment; 1500 alphanumeric characters Remark 2 For any comment; alphanumeric characters Remark 3 For any comment; alphanumeric characters Remark 4 For any comment;...
  • Page 46 Position Description of the Position Display of the category number, is generated by the system which when you click on "Add" Variety numeric digit for sorting the category Name Category names Label format Select a label format from the list Description Free text field to describe the current category of the...
  • Page 47 Position Description of the Display of the department number generated by the system when you tap on "Add" Name To add department names Description To add details of the current department of the Arrow keys Navigate up and down Edit Edit current entry Delete Delete a department...
  • Page 48 6.4. Users Position Description of the Display of the operator number generated by the system Name To add user names password 19 Enter digits and numeric characters Enter password 19 Enter digits and numeric characters again Authorisation Select an authorisation from the list (Operator or Administrator) Telephone Enter the operator's phone number...
  • Page 49 6.5. Print format A label can be assigned to each item. The numbers 0001 to 9999 are available for programming. Select Print format to add one or more formats, Position Description of the Label number generated by the system when you tap "Add key"...
  • Page 50 Save Saving information Cancel Cancel current process 1) Select the format from the list and press the "OK" option; 2) The formatting path is displayed as the name of the selected formatting file; 3) Tick the checkbox to set the format as default if required; 4) Press the "SAVE"...
  • Page 51 Back Return to the main page Save Saving information Cancel Cancel current process 7. DATA TRANSMISSION On the main page, tap the key Select the appropriate function for exporting or importing. Export data： Realisation: Insert the USB data carrier. Tap on the "Export data" option. Select the desired data for export by ticking the respective checkbox or select "Select all"...
  • Page 52 Tap the "Back" key to return to the main menu. Import data： Realisation: Insert the USB stick with the contents of the "scale_data" folder. Tap on the "Import data" option. Select the desired data from the list or select "Select all" Tap on "Import".
  • Page 53 "scale_data" data - subfolders and files Name of the folder Description of the audio_product Format: "wav" - Folder for audio files. Bitrate: approx. 1411kbps. (not available for all models) Size: 50kb or more Name: alphanumeric format_label The format files should be in fmt format and the -folder for label formats.
  • Page 54 of PLUs. media 10" customer display Video: -folder for advertising Picture: Format: "mp4" images on the back. Format: "png" Image size: approx. (not available for all models) Maximum resolution: 640x400 1280x800. Size: It is recommended Size: 50kb or more to use videos in small Name: alphanumeric.
  • Page 55 8. SETTING 8.1 Settings menu Select the key to access the scale menu settings. Remark: 1. some parameters are encrypted and require access by a technician or an admin account. Technician / Admin authorisation Access and change settings. Person Authorisations Technician Access to all parameters and functions is via the user name and password "Technician".
  • Page 56 8.2 Settings table Tap on "Basic information" to access user information, currency, etc, Menu Sub-menu Remarks User information Company name Enter the company data. Address Telephone Website Logo Advertising slogan Shop no. Department Scale no. Header 1~4 Footer 1~4 Reserved for the receipt Currency (not changeable) Price decimal places...
  • Page 57 Price rounding Used to set the price rounding 1 ~ 10 (cannot be changed) Total rounding Not changeable Set by PLU price unit Scales Use price Used to set fixed unit prices/PLU price units Use PLU price unit VAT rate No VAT To set the tax none / include / exclude...
  • Page 58 Sound Beep Used to switch the scale buzzer on and off Ribbon Used to set the system volume Idle time To set the idle time for the standby timer 1 minute System Info Reset database Reset product Is used to reset selected Product group content.
  • Page 59 Auto delete PLU Is used to automatically delete the PLU after printing. Auto start screen After discharge Defines when to return to After printing the start page Allow price change for From Used to switch price zero-price items changes for items with zero prices on or off Free price entry From...
  • Page 60 Print number Used to display the number of labels printed After product selection After product selection Play sound Quantity entry after From Determines whether or product selection not the quantity can be entered after selecting the product Printing method Manual printing Used to select different printing methods Printing at...
  • Page 61 Password required Switch password entry for access to the menu on/off Search for Product Used to switch the search Tara by product or tare Delete auto tare From Tare is retained after printing a label During start-up Clear tare when starting up the scales Print second label From...
  • Page 62 Eth0 Displaying the IP address in the LAN Wlan0 Display the IP address of the wireless network 8.3. Configuration settings 8.3.1. Scale remote access A second, external scale can be connected via remote access. Connect the second scale. Call up the submenu to select the second scale. Make the technical setting to calibrate the second scale.
  • Page 63 8.3.2 Article display Image and name： The preset PLU in the sales list is displayed with image and name Name and number： The preset PLU in the sales list is displayed with name and PLU number 8.3.3 Auto delete PLU Display PLU: The preset PLU in the sales list is displayed with image and name;...
  • Page 64 8.3.5. Auto start screen The "Back to start page after printing" function can be switched on or off, On: Returns to the start page after printing the labels. Off: There is no automatic switch to the start page after label printing. 8.3.6 Allow price change for zero-price items Enables the price entry function for zero-price items to be switched on/off...
  • Page 65 Off: If the unit price is updated, the message window is not displayed. 8.3.10. Long press Edit Enables the editing function to be switched on and off with a long press ON: Long press on the selected preset PLU in the sales list, enter the desired changes and confirm by pressing the OK key.
  • Page 66 8.3.13. Enter quantity after product selection Enables manual entry of the quantity after product selection ON: A window for entering the PLU quantity appears after you have selected a PLU without a weight specification. Enter the quantity and confirm with the "OK" button. Alternatively, the desired quantity can be preselected using the "Quantity"...
  • Page 67 ON: The shelf number is displayed at the top left of the PLU preview. OFF: The shelf number is not displayed. 8.3.17. Search by shelf number or PLU number PLU number: Select the product PLU by pressing the key , search for products according to the PLU number.
  • Page 68 8.3.19. Password request Switch the password prompt on/off before calling up the main menu. ON: A password must be entered to access the main menu OFF: If an account is logged in, there is no longer a password prompt . 8.4.20.
  • Page 69 ON: Each printed label is saved in the database. OFF: Label printouts are not saved in the database. 8.4.24. Print requests ON: Before a label is printed, an input window appears in which the label printout must be confirmed. OFF: The label is printed automatically and without prompting. 8.4.25.
  • Page 70 places Piece decimal decimal in barcode PLU length Definition of the PLU length Time zone Not changeable Delete labelling reports To delete the labelling reports Execute USB Check USB Not available script connection Execute script Force pressure From Switch forced printing on/off Allow pressure at From...
  • Page 71 Set print density: To set the colour intensity Set the print speed: To set the print speed Rewind On: [Description to be clarified] Beep sound ON: [Description to be clarified] Beep sound OFF: [Description to be clarified] Feed label: When pressed, a blank label is printed to correct the position of the label after a roll change.
  • Page 72 Surface 2 Surface 1 9.2. Start screen Additional buttons can be shown or hidden on the start screen. ON: Zero / Tare / Feed / Print mode keys are displayed (not all symbols may be visible) OFF: The additional symbols are not displayed 9.3 PLU length 1.
  • Page 73 9.4 Delete labelling reports Tap and select Delete labelling reports. A dialogue box appears in which you tap OK to delete the report data. 9.5. Execute USB script / Backup and restore 9.5.1 Fuse Copy the script and the programme to the root directory of a USB memory device Note: Do not change the name of the folder and the script, as this may...
  • Page 74 Insert the USB memory device into the USB port Call up the "Technology" menu by entering the password 999999999. Then tap on "OK" to open the menu. Tap on the "Run USB script" submenu. Tap on "Check USB connection" to check whether a USB memory device is plugged in.
  • Page 75 If USB Insert is displayed, Tap on "Execute script" and the tool window is displayed Tap on "T-Touch Tool" to open Then tap on "Backup" to back up the database. The message "Backup begin Run" appears on the display. 10 Tap the "Switch off" button when the message "Backup run over"...
  • Page 76 Insert the USB memory device into the USB port Call up the "Technology" menu by entering the password 999999999. Then tap on "OK" to open the page. Tap on the "Run USB script" submenu. Tap on "Check USB connection" to check whether a USB memory device is plugged in.
  • Page 77 If USB Insert is displayed, Tap on "Execute script" and the tool window is displayed Tap on "T-Touch Tool" to open it Then tap on "Restore" to restore the database. The message "Restore begin Run" appears on the display. 10 Tap the "Switch off" button when the message "Restore run over"...
  • Page 78 Off: No labels can be printed if the total price is zero. 10. Technical data 10.1 General specification MODEL 1422 1222 Display 10" touch display 15" touch display Display resolution 1280*800 px 1366*768 px Maximum capacity 6kg/15kg;...
  • Page 79 Readability 2g/5g; 5g/10g Max. pitches 2x3000e Weighing units kg, g Size of the scale 280x385 mm Accuracy class Class III Housing ABS plastic housing and stainless steel platform Touch control mode Resistive screen Capacitive screen A17 Quard Kern LINUX Interface 2 x RS232;...
  • Page 80 Label printing area 56 x 110 mm (maximum width x length) Resolution 8points/mm Print type Graphics, logo, large/small font, different fonts and font sizes, EAN barcodes, QR code ***Specifications are subject to change without notice. 10.3 Overall dimensions 10.3.2. 1222...
  • Page 81 10.3.3. 1422...
  • Page 82 Soehnle Industrial Solutions GmbH Gaildorfer Straße 6 DE-71522 Backnang Phone +49 7191 / 3453 220 info@sis.gmbh All rights reserved. © Soehnle Industrial Solutions GmbH, publication, duplication and any form of utilisation as well as transfer to third parties - even in part or in revised form - is prohibited without the consent of Soehnle Industrial Solutions GmbH.
