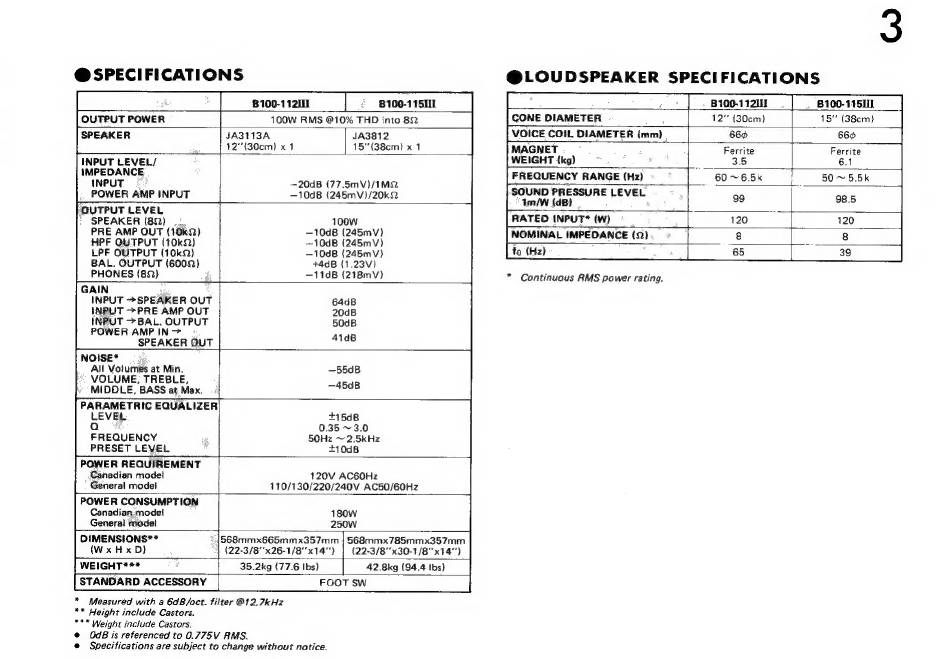

@ SPECIFICATIONS
B100-112111 B100-1 15111
OUTPUT POWER
100W RMS @10% THD into 82
SPEAKER
JA3113A
12°(30cm) x 1
JA3812
15°(38cm) x 1
INPUT LEVEL/
IMPEDANCE
INPUT
POWER AMP INPUT
—20dB (77.5mV)/1MQ.
—10dB (245mV)/20k2
OUTPUT LEVEL
SPEAKER (82)
PRE AMP OUT (10k)
HPF QUTPUT (10k)
LPF QUTPUT (10kQ)
BAL. QUTPUT (6002)
PHONES (822)
100W
—10dB (245mV)
~10dB (245mV)
—10dB (245mvV)
+4dB (1.23V)
—11dB (218mV}
GAIN
INPUT > SPEAKER OUT
T ->PRE AMP OUT
INPUT > BAL. OUTPUT
POWER AMP IN >
SPEAKER QUT
64dB
20dB
50dB
4108
NOISE*
All Volumes at Min.
VOLUME, TREBLE,
MIDDLE, BASS at Max.
—55d8
—45dB
PARAMETRIC EQUALIZER
LEVEL
Qa
FREQUENCY
PRESET LEVEL
+15dB
0.35 ~3.0
5OHz ~ 2.5kHz
+10dB
POWER REQUIREMENT
Canadian model
General modet
120V AC60Hz2
110/130/220/240V AC50/60Hz
POWER CONSUMPTION
Canadian. model
General model
180Ww
250W
DIMENSIONS**
(Wx Hx D)
568mmx665mmx357mm
(22-3/8"'x26-1/8"«14"}
568mmx785mmx357mm
{22-3/8"x30-1/8"x14"")
WEIGHT*** 35.2kg (77.6 Ibs)
42.8kg (94.4 tbs}
STANDARD ACCESSORY
FOOT SW
* Measured with a 60B/oct. filter @12.7kHz
** Height include Castors.
"** Weight include Castors.
@ O0B is referenced to 0.775V RMS.
© Specifications are subject to change without notice.
3
@LOUDSPEAKER SPECIFICATIONS
B100-1121I1 8100-14511
CONE DIAMETER 12" (30cm) 15" (38cm)
VOICE COIL DIAMETER {mm) 669 660
MAGNET Ferrite Ferrite |
WEIGHT {kg) 3.5 6.1
FREQUENCY RANGE (Hz) 60 ~6.5k i 50 ~ 5.5k |
ene rd PRESSURE LEVEL 99 98.5
RATED (NPUT* (W) 120 120
NOMINAL IMPEDANCE (2) 8 8
fo (Hz) 65 39
* Continuous RMS power rating.
