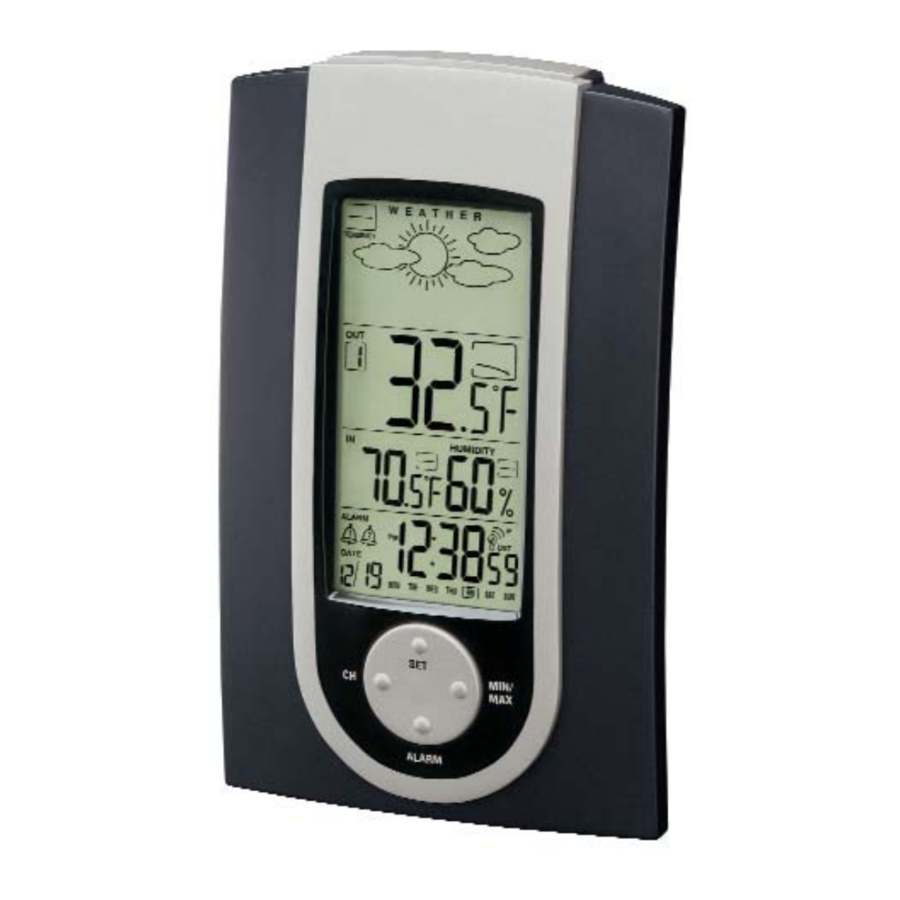

Homedics EnviraStation DWS-220 Manual

GETTING STARTED

1.
   Insert batteries into the home receiver unit first.
   Home Receiver:
   • Remove the battery cover on the back of the unit. Install 2 alkaline AA batteries according to the polarity indicated. Close the battery cover.
     Remote Sensor:
   • Install 2 alkaline AA batteries according to the polarity indicated. Close the battery cover.
2. Place the home receiver as close as possible to the remote sensor. This will help with synchronization between the two units.
3. REMEMBER: Once you are ready to position your remote sensor and home receiver, ensure that the distance is not outside the effective transmission range (100 feet). Some building materials and location of the home receiver or remote sensor can affect transmission quality and range. Try various locations for best results.
   NOTE: There are no consumer serviceable parts. All questions or service requests should be directed to our consumer relations department. (See Warranty section for contact information.)

INPUT EXISTING WEATHER CONDITIONS

To ensure accurate weather forecast under different altitude situations, you should first enter the existing weather condition manually. The weather icon will be flashing.

1. Select the existing weather condition by toggling through the selections with the "MAX/MIN" button. These conditions will be displayed as; Sunny, Partial Sunny, Cloudy, Rainy, Stormy or Icy at the top of the LCD display.
2. Once the correct condition is selected, press the "CLEAR" button on back of unit to confirm and exit.
3. The unit is now calibrated to the existing pressure and weather conditions.

SETTING TIME

RADIO-CONTROLLED CLOCK
The home receiver will start synchronizing the clock after the 1st channel of the RF thermometer is registered.

1. At normal mode, hold the " - " button located on the back of the home receiver for 3 seconds to force synchronization.
2. The antenna icon will appear during the synchronization process (on the right side of the time display).
3. If the icon disappears afterwards, radio time signal is not available at that moment. Try setting the home receiver in other locations. Remember to place the unit away from sources of interference such as mobile phones, appliances, TV etc.
4. The antenna icon will appear on screen if the radio time reception is successful. The radio-controlled clock will have a daily synchronization at 1:00 am everyday. If previous attempts of reception were unsuccessful, the home receiver will attempt synchronization each hour until successful.
5. Each reception cycle is minimum 2 minutes and maximum 10 minutes.

TIME ZONE SELECTION
Press "SET" button on the front of home receiver to select from the following time zones in the U.S. (zone is displayed in the upper right hand corner of time display).
P - Pacific Standard Time
M - Mountain Standard Time
C - Central Standard Time
E - Eastern Standard Time

MANUAL SETTING FOR CLOCK & CALENDAR
If atomic time is unavailable in your area or to manually set/over ride this feature;

1. Hold "SET " button for 3 seconds to enter clock set.
2. First, select 12 hour or 24 hour setting using the "+ , - " buttons located on the back of the home receiver. Press " SET " button to confirm.

Now you will select the calendar settings-

3. Select Year - Use the " + , - " buttons located on the back of the home receiver to adjust year setting. Press " SET " button to confirm.
4. Select Month/Day - Use the " + , - " buttons located on the back of the home receiver to adjust month/day setting. Press " SET " button to confirm.
5. Select Hour/Minute - Use the " + , - " buttons located on the back of the home receiver to adjust hour/minute setting. Press " SET " button to confirm.
6. DST On/Off (Daylight Savings Time) - Use the " + , - " buttons to turn DST on or off.
   Press " SET " button to confirm.

FAHRENHEIT/CENTIGRADE SELECTION
You can now select either Fahrenheit or Centigrade temperature readings. Hold the max/min button for 3 seconds to toggle between Fahrenheit or Centigrade readings.

ALARM FUNCTIONS

TO SELECT BETWEEN ALARM 1, ALARM 2 OR ALARM OFF
Press " +/ " button on the back of the unit to scroll through selections.
For Daily Alarm - The appropriate "" icon will appear in the upper left corner of the time display.
No Alarm - The "" icons will not be shown.

TO SET ALARM TIME

1. Press "ALARM" button once to select Alarm 1 or twice for Alarm 2.
2. Once you select the correct alarm, hold the "ALARM" button down for 3 seconds.
3. Set alarm time - Press " + , - " on the back of the unit to enter the desired Hr/ Min values. Press "ALARM" to confirm.
4. To view alarm time - Press "ALARM" button. Alarm time will display for 5 seconds and then resume to normal clock thereafter.
5. The home receiver will provide either a daily alarm, which last for 2 minutes or a snooze mode where the alarm will repeat every 5 minutes until manually cleared (see SNOOZE/LIGHT section below.)
6. To turn ringing alarm off - Simply press the button under the LCD display. The alarm is now off for one day.

SNOOZE/ LIGHT

1. Press the SNOOZE/ LIGHT button for an extended backlight.
2. In snooze alarm mode, press this button to trigger a repetitive snooze alarm.

MIN/ MAX MEMORY SETTINGS

1. Press "MIN/ MAX" button to view the maximum values for 5 seconds. Press again to view the minimum values.
2. To clear the memory record, press "CLEAR" button on the back of the unit while the respective values are displayed on screen.

TEMPERATURE TREND INDICATOR:
Next to each weather reading on the home receiver LCD display, you will see one of 3 icons;
will indicate Rising Conditions if it changes more than 1 degree in an hour
will indicate Steady Conditions
will indicate Falling Conditions if it is more than 1 degree in an hour.

WEATHER FORECAST WITH STORM ALERT
The built-in sensor will read the atmospheric pressure and calculate the weather conditions of the next 12 hours. These conditions will be displayed as; Sunny, Partial Sunny, Cloudy, Rainy, Stormy or Icy at the top of the LCD display.

OFFSETTING AIR PRESSURE FOR WEATHER FORECAST
After the initial step or in case the weather forecast deviates, you can still recalibrate the unit.

1. Hold "CLEAR" button for 3 seconds to enter the pressure offset mode. The weather icon will flash.
2. Select the existing weather condition by pressing "MAX/MIN" button.
3. Press "CLEAR" to confirm and exit.
4. The unit is now calibrated to the existing pressure and weather conditions.

LOW BATTERY INDICATION
Low battery indication is available for the home receiver and the remote sensor. "LO" will be displayed on the remote sensor and a battery life " " icon will be shown on the home receiver. Replace the batteries as necessary and follow the setup procedure as mentioned earlier in the "GETTING STARTED" section.

MOUNTING INSTRUCTIONS

Table Top -
For the home receiver, fold the base down and into the back of the unit. For the remote sensor, simply pull out the integrated stand from the bottom.

Wall Mount -
For the remote sensor - Set a screw into the desired hanging location and mount.

For Home Receiver -
Pull base out and fold up onto mounting pegs. (Base will snap into place). Set a screw into the wall and mount.

MAINTENANCE AND CARE INSTRUCTIONS

• Extreme temperatures, shock or areas of unusual vibrationshould be avoided to prevent damage to the units.
• Clean the units using only a soft, damp cloth to wipe. Do not use solvents, abrasives, detergents or other strong cleaning agents. After cleaning, wipe surfaces with a dry cloth.
• Do not submerge units in water or other liquids.
• Do not subject the units to extremely severe temperatures- DO NOT PLACE UNITS INTO OVENS, FREEZERS or MICROWAVE OVENS.

NOTES

• Opening the housing of either the remote sensor or the home receiver willinvalidate your warranty. Do not attempt to repair this unit. There are no consumer serviceable parts.
• If you encounter any difficulties in setting up your wireless thermometer system, please contact Consumer Relations.
• Your new RF Thermometer is built with random security code technology. The home receiver will learn the random code of the first remote sensor and log it in as channel 1. Channel 2 and Channel 3 will be registered in the same way if additional sensors are used. The home receiver can monitor up to 3 separate sensors.
• Once a channel is registered, it will not accept any new sensors. However, registered channels can be erased by removing the batteries in the remote sensor or the home unit.
• When replacing batteries for the remote sensor - Remember to clear thecorresponding channel of the home receiver by removing the batteries or select the respective channel of the sensor by pressing the CHANNEL button on the home receiver. Hold the CHANNEL button for 3 seconds to clear the registration.
• When replacing batteries for the home receiver - Please remove the batteries of all remote sensors. Once you have replaced the home receiver batteries, re-install the batteries to the sensors according to the desired channel sequence. This will ensure that the home receiver and the remote sensors are properly synchronized.
• Press the Tx button on the back of remote sensor to verify the RF reception.
• It is recommended to test the home receiver and the remote sensor nextto each other to ensure that both are properly synchronized.
• Keep the remote sensor out of direct sunlight and rain. Do not mount on a metal surface.

About the Atomic Clock
The National Institute of Standard and Technology (NIST) in Fort Collins, Colorado broadcasts the time signal (WWVB at 60kHz AM radio signal) with an accuracy of 1 second per every 3,000 years. The signal will cover a distance up to 2,000 miles from the source. Like a typical AM radio, your Atomic Clock will not able to receive the WWVB signal in places surrounded by heavy concrete or metal panels. The reception of the time signal can be affected by mobile phones, TV, electrical appliances or other electronic interference. To get the best performance of the Atomic clock, please install the home receiver near a window and away from large metallic objects. If the unit is not working properly, change the unit position. There may be some interference at this location.

TROUBLE SHOOTING

Indoor and Outdoor temperatures do not match when placed next to each other
Each sensor is manufactured to be +/- 2 degrees in accuracy under normal conditions. So it is possible to have up to four degrees difference shown on the separate temperature sensors (one could be "+2 degree" and the other "-2 degrees". Additionally, the calibration curve is different between the two units because of the greater temperature range of the outdoor sensor.
Errors are usually noted on the extreme ends of the temperature ranges.

Base unit is not accepting remote transmissions

The units may not be properly synchronized or the batteries may need to be replaced. See "GETTING STARTED" section for detailed instructions. With the two units next to each other, attempt synchronization. Remember to always place the remote sensor within the effective transmission range and away from large metal surfaces.

What is the recommended battery type?

Your unit will come with 4 "AA" alkaline batteries (2 "AA" batteries required for each unit). We recommend using only alkaline batteries for replacements.

Where can I mount the remote sensor?

To get accurate readings and to prolong the life of your sensor, we recommend that you mount it out of direct sunlight and rain. Fog and mist will not affect the sensor, but large volumes of soaking rain may. To guard against this, we recommend that you mount it under the eve of your house, your garage or any other suitable place that will keep it out of direct sun and rain.

Outdoor Temperature Reading shows "- - "

This is usually an indication that the channel selector (located in the top left corner of the home receiver) is set incorrectly to receive the signal from the remote sensor. If you have only one remote sensor, ensure that the channel selector is set to "1". To change the channel, press the "channel" button located on the front of the home receiver.
The home receiver may also be "scrolling" - looking for sensor readings from more than one remote sensor. This home receiver can support up to three remote sensors (only one is included). If it is looking for more than one remote sensor, a " " icon will appear below the channel designator. Again, to select a reading from just one remote sensor, press the "channel" button to remove the scroll icon and ensure that the channel selected now reads "1".

The unit is "locked" - I can't perform unit functions

When this occurs, the unit maybe in "forced synchronization" mode. If the radio antenna icon shows "waves" projecting from it, the unit is attempting to synchronize with the atomic clock frequency. To override, simply press the " - " button on the back of the unit. You will now be able to perform all other functions.

The weather forecast does not match current outdoor conditions

The forecast projects weather conditions 8-12 hours into the future. It does not reflect current conditions.
To ensure accurate weather forecast, it may be necessary to manually enter existing conditions (see "Input Existing Weather Conditions").

Name and Functions of Buttons:

	Functions	If button is held down
SET	Select PST, MST, CST, EST	Enter clock & calendar setting
+/	1 step forward Alarm, Select Alarm(s) on/off	Fast advance
-/	1 step backward	Fast backward Atomic time seek
ALARM	Display alarm time for 5 sec at normal mode
MIN/MAX	Read minimum/ maximum record 5 sec
CHANNEL	Select Channel 1,2,3, auto scroll	Delete current channel
SNOOZE/ BACKLIGHT	Backlight on for 5 seconds, Trigger snooze alarm, stop alarm
CLEAR	Clear memory at Min/ Max	Select weather conditions

SPECIFICATIONS

Range of temperature/humidity measurement:
